EN - GDK installation and operating guide - SOMFY
Installation

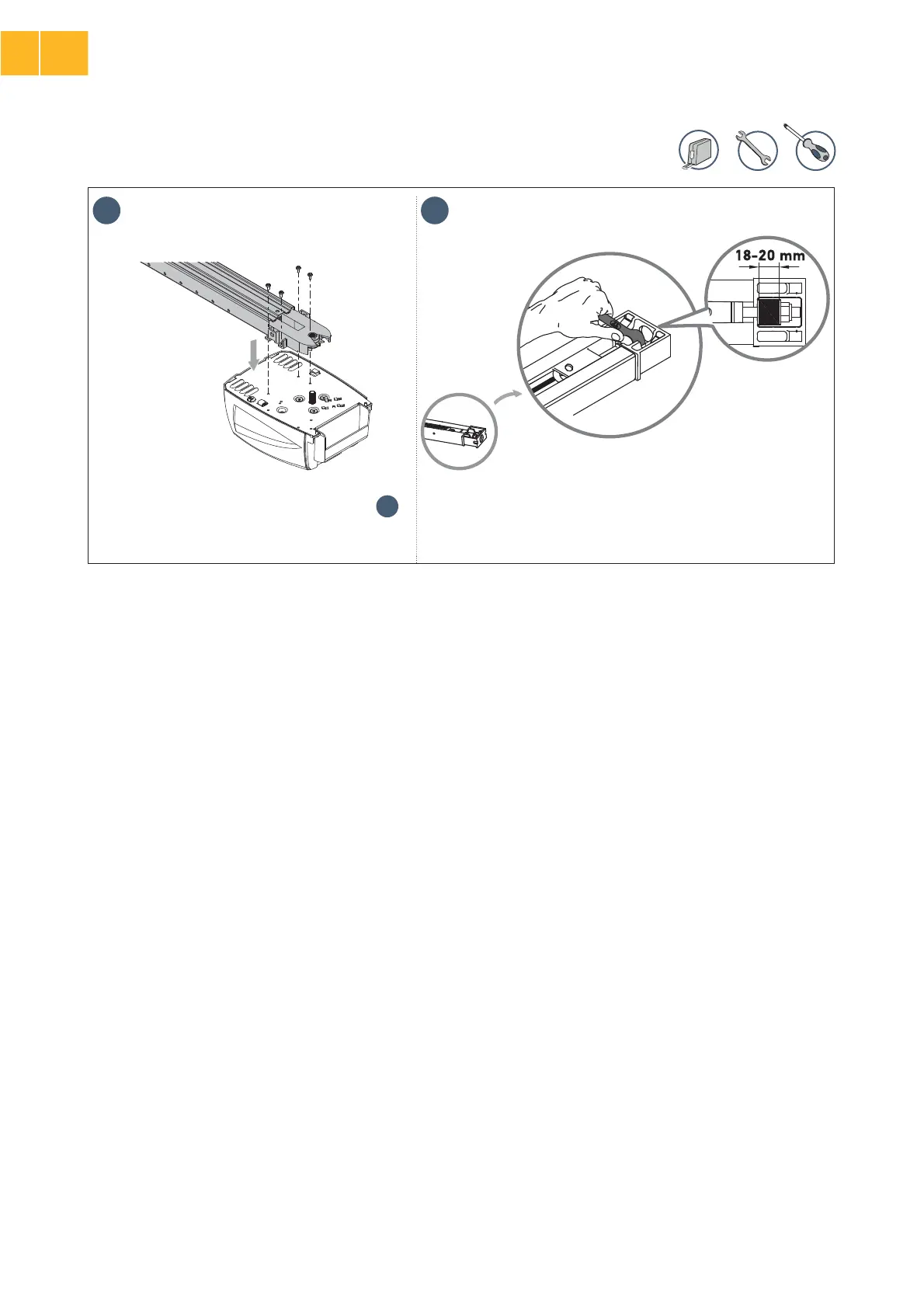

> Assembling the rail to the motor head
1 2
• Insert the motor shaft into the rail pinion, then
mount the assembly using engine head screws
Q
.
• Tighten the nut to tauten the belt.
• The rubber squashes when tightened.
To obtain the correct tension, the rubber should measure between
18 and 20 mm.
