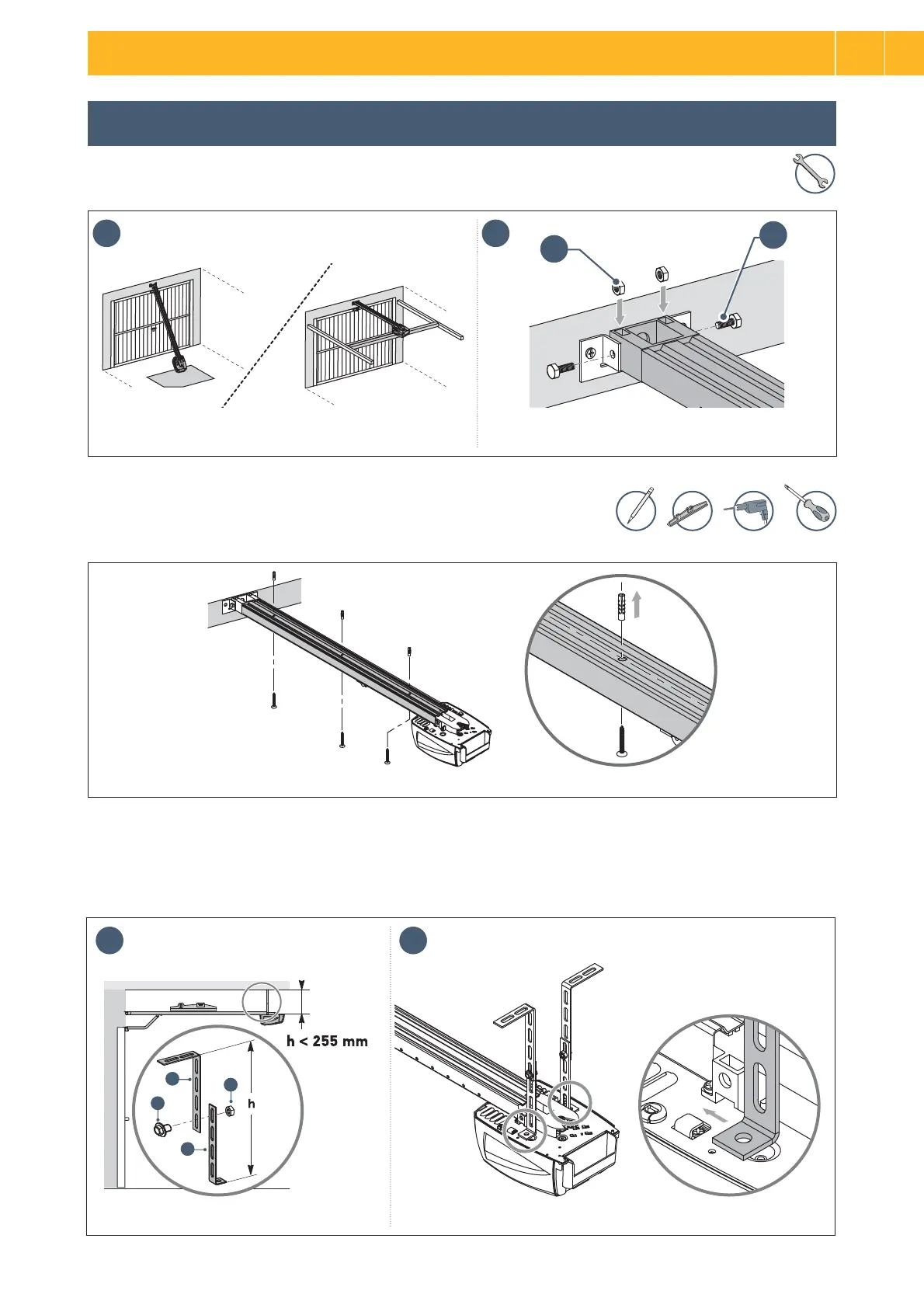

1.3 Mounting
> Fastening the unit to the lintel bracket
INSTALLATION
Ø8 x 50
• Fasten the rail to the ceiling.
> Fastening the unit to the ceiling
> Case 1: Drive against ceiling
1 2
N
L
F
E
• Fasten the unit at the motor head.
>
Case 2: Drive not against ceiling
1 2
• Position the assembly in the lintel bracket by placing
the motor head on the ground or the on cross member.
• Fasten the assembly to the lintel bracket.
N
M
1
