MIC-10 / MIC-30 – USER MANUAL

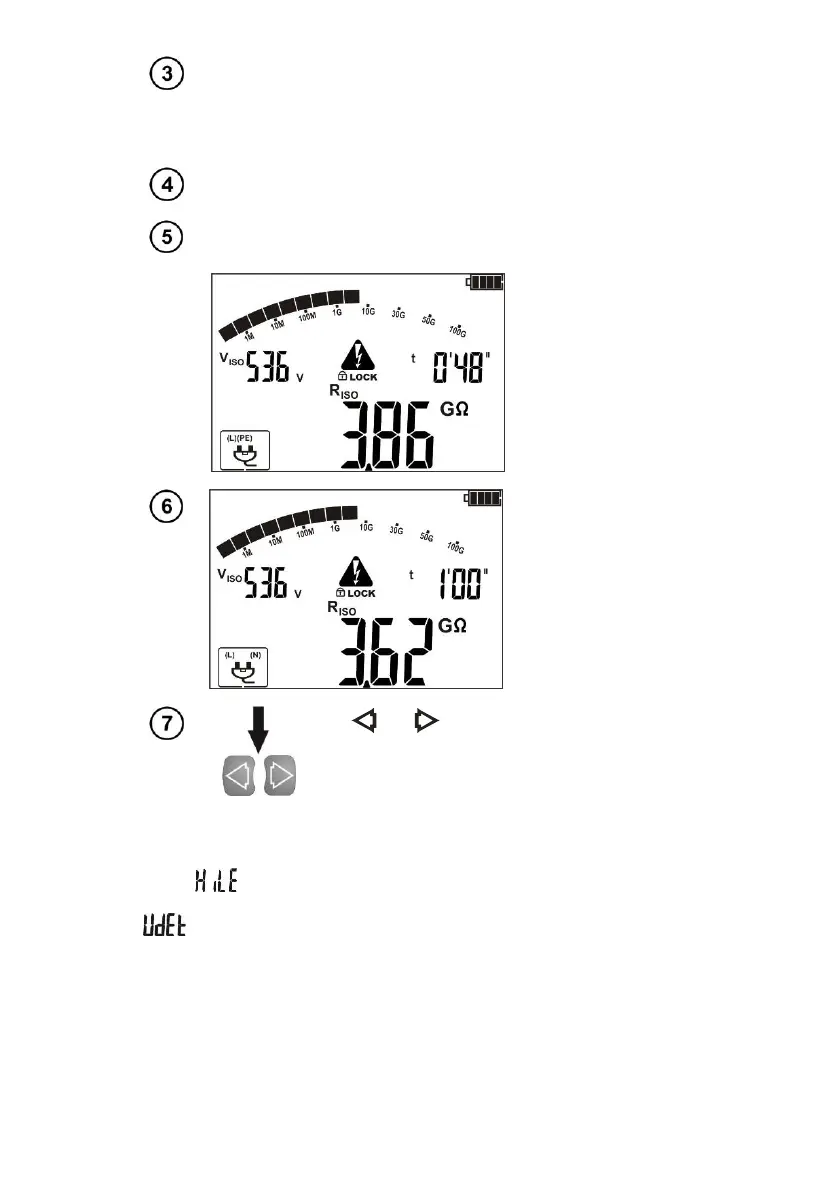

Set the measuring voltage V
N
(applies only for 50...1000V
position of the switch), and times t1, t2, t3 as in double-lead
measurement. These settings relate to the measurement of
insulation resistance for each pair of leads selected in the main
settings.
Connect WS-04 plug to the socket tested.
Start the measurement as in case of double-lead measurement.
The meter measures
the insulation
resistance for selected
pairs of leads in the
following order: L-N, L-
PE, N-PE.
After measuring is
completed, read the
result.
Use and to view the individual components
of the measurement as in double-lead measurement
and for pairs L-N, L-PE, N-PE.
Note:
- In cases of errors , LIMIT I! the measurement is interrupted only for the current pair of leads and
not for the entire measurement.
- In case of error the entire measurement is interrupted.
- Other comments and displayed symbols as for the double-lead measurement.
