MIC-10 / MIC-30 – USER MANUAL
15
3.2.3 Compensation of test leads resistance
In order to eliminate the impact of the resistance of test leads on measurement result (R
CONT
and
R
X
), the compensation (auto-zeroing) of resistance may be performed.

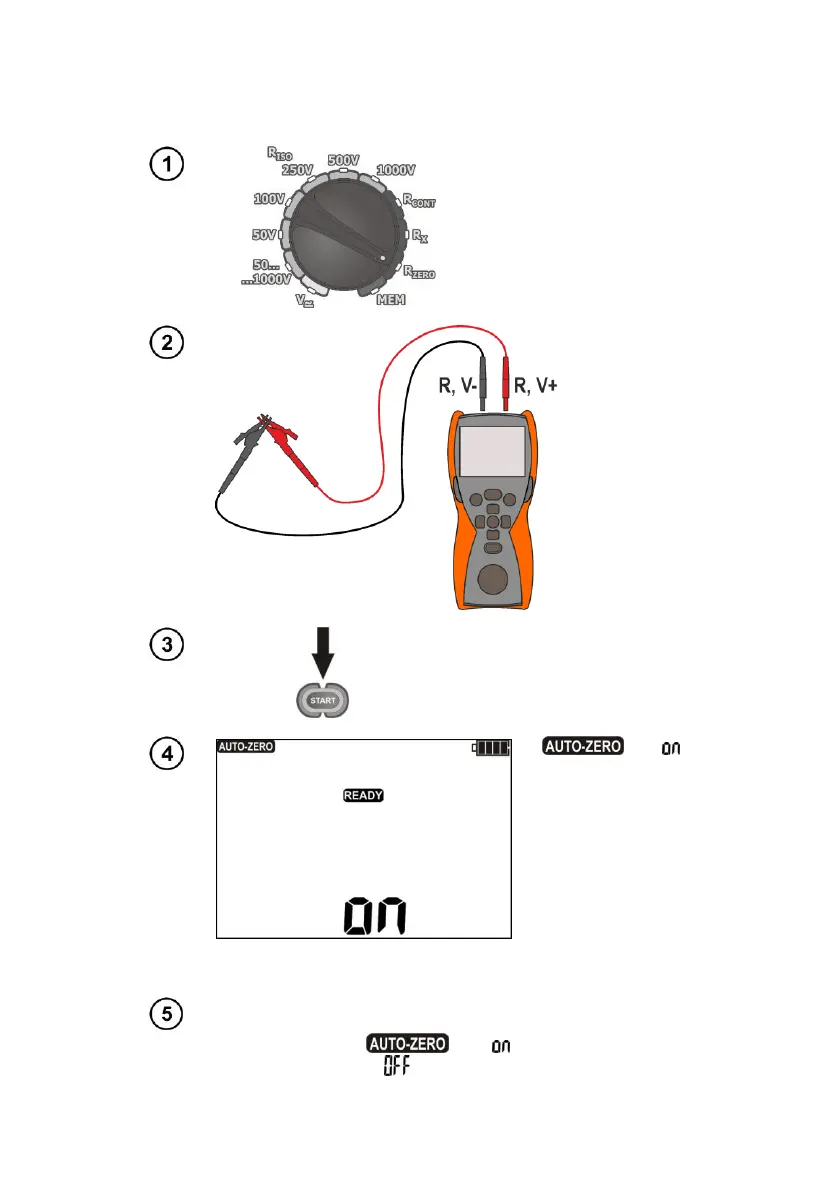

Set the rotary switch of function
selection at R
ZERO
position.
Short the test
leads.
Press START.
and
are displayed,
confirming the
completion of test
leads resistance
compensation.
The compensation is
available for R
CONT
and R
X
and is active
even after the meter
is switched off and
on again.
In order to remove the compensation made (and return to default
calibration), perform the above-mentioned activities with test leads
open – messages and disappear, the following
message is displayed .
