MIC-5010, MIC-5005 – USER MANUAL
11

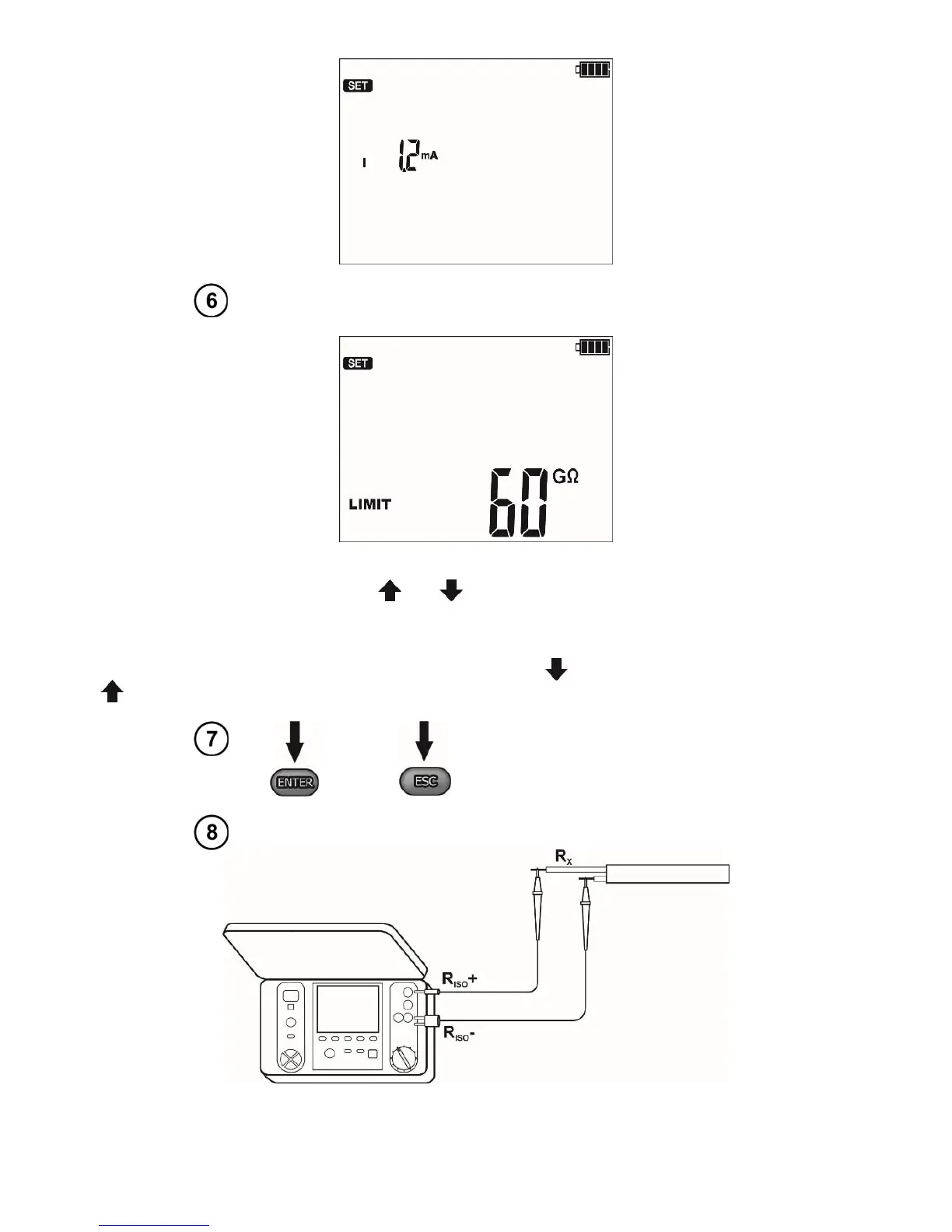

limit (only MIC-5010).
For R
ISO
the limit is the minimum value. The limit range is from 1 kΩ to 15 TΩ.
The limit value is set using the and buttons. As the meter has many measurement sub-
ranges, an algorithm for rapid increase or decrease of values is implemented. When holding the value
key it changes very rapidly: first the hundreds, after 3 s tens, and after 3 s units etc. The limit setting is
circular. The resolution of the set limit is related to the sub-range.
To deactivate the limit (displayed symbol ---) press the button while in the 1 kΩ position or the
button while in the 15 TΩ position.
or
Press
ENTER
to confirm settings
(confirmed by beep) or press ESC to
exit without saving the changes.
Connect test leads according to the drawing.
