Sonoscape S22 User Manual

11 Working with Images
118 Basic User Manual
Yellow
Green
Black
Red
R
L
N
F
RA LA
RL
LL
Green
Red
White
Black
IEC Standard AHA Standard
I
I
II II
III III

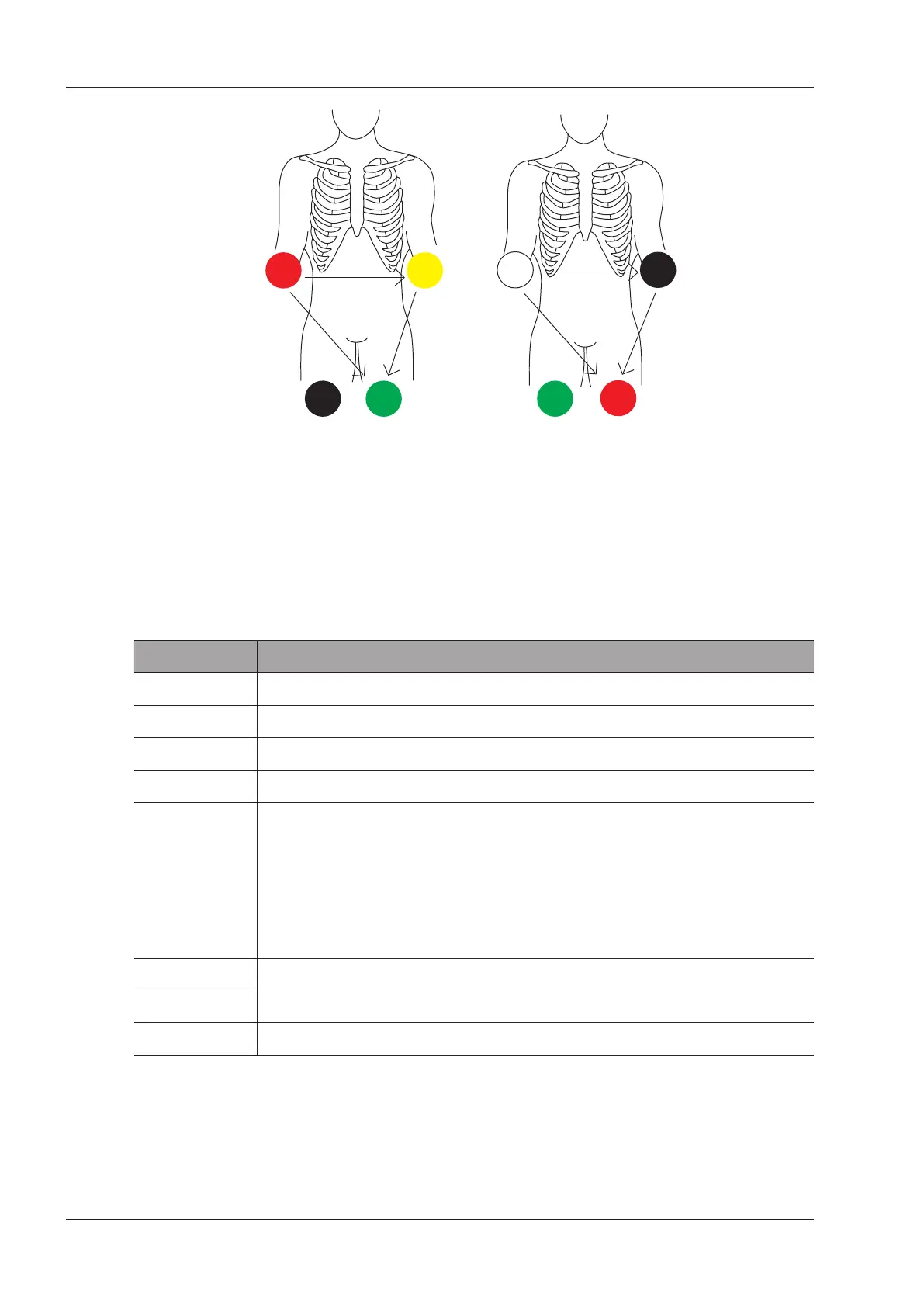

Figure 11-6 Electrode Placement
3. Make the relevant settings of the ECG module. For details, refer to Section 11.6.2 Optimizing Parameters.
4. Freeze the images and review them. For details, refer to Section 11.6.3 Reviewing ECG.
5. Exit the ECG mode, and remove ECG electrodes from the patient.
11.6.2 Optimizing Parameters
Tap
ECG
on the touch screen to display the submenu of the ECG module. Or, tap
ECG
again to hide it.
Item Description
ECG ON/OFF Display or hide the ECG waveform.
ECG Gain Set the amplitude of the ECG waveform.
ECG Position Set the vertical position of the ECG waveform.
ECG Invert Enable or disable the waveform inversion function.
R-Trigger Enable or disable the R-trigger function.
When enabled, the
R-Trigger
menu pops up, the menu contains Trigger Delay, Frame
Count, and Frame Int.
NOTE:
In order to enable the R-trigger function, you should disable the compounding imaging
function rst.
Trigger Delay Delay of trigger after the 2D refresh.
Frame Count Image frames transferred per second.
Frame Int. Interval between 2D image refresh.
11.6.3 Reviewing ECG
Press the
Freeze
key on the control panel to freeze an image and the ECG waveform is frozen at the same time.
The ECG waveform is the reference for time.

Sonoscape S22 Specifications

General

Brand	Sonoscape
Model	S22
Category	Medical Equipment
Language	English
