3
Preparing the System
Basic User Manual
23
10cm
30°
30°
●

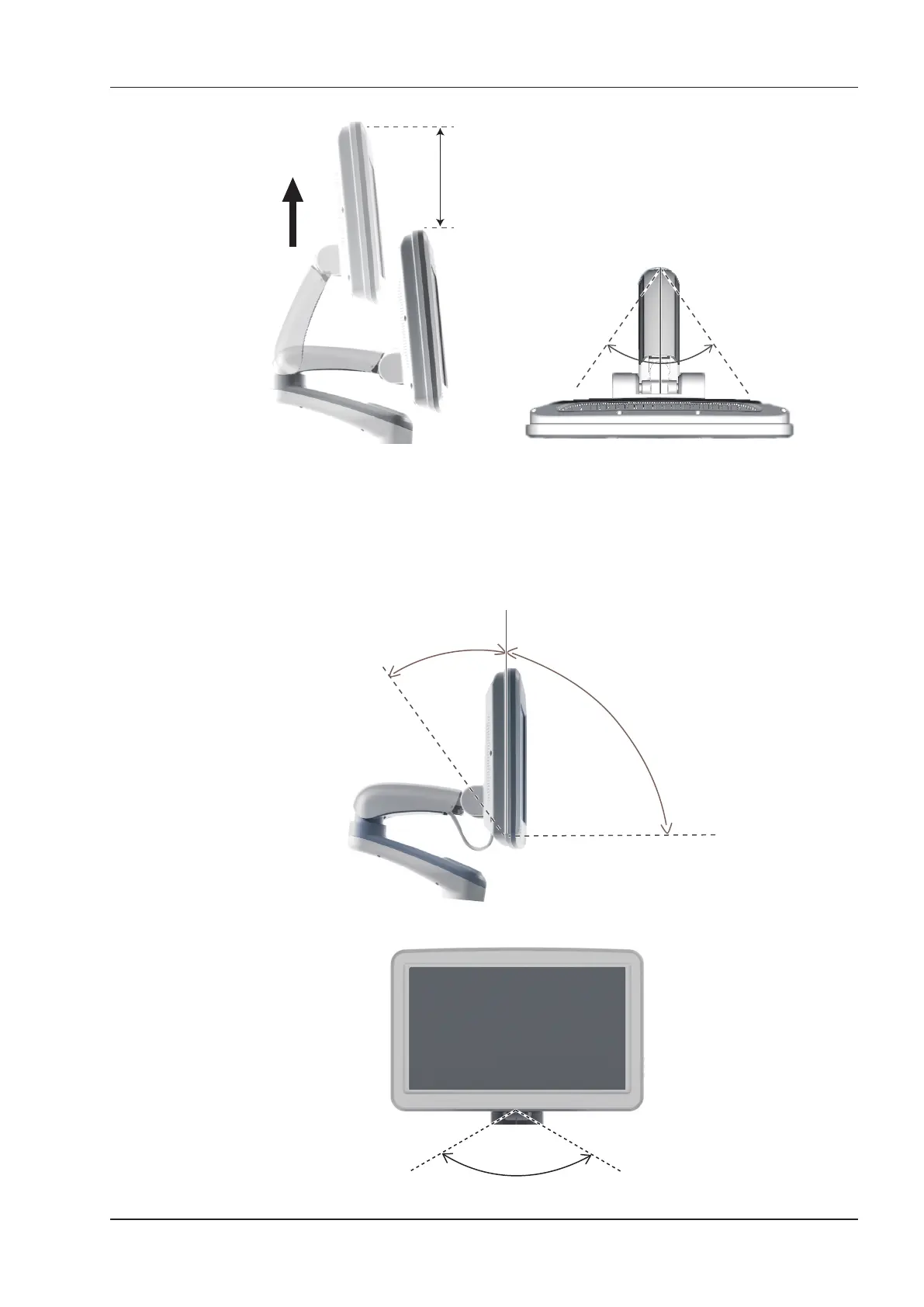

T
o adjust the monitor vertically
, move the upper arm towards to or backwards from the lower arm.
●
T
o adjust the monitor horizontally
, swivel the upper arm left or right.
3.5.2
Adjusting the Display Monitor
■
T
o swivel the LCD monitor
Grip the upper and lower sides of the monitor
, tilt the monitor forward or backward.
30°
90°
Grip the left and right sides of the monitor
, swivel the monitor left or right.
180°
30
32
Table of Contents
Table of Contents
3
Afety
9
Intended Use
9
Safety Precautions
9
Electrical Safety
9
Mechanical Safety
10
Accessories Caring
11
Biohazard Considerations
11
Acoustic Power Principle
11
Biological Safety
12
Alara
12
Mechanical and Thermal Indices
12
Transducer Surface Temperature Limits
13
Imaging Functions that Change Acoustic Output
13
Safety Symbols
13
Ystem Overview
17
System Configuration
17
Physical Specifications
17
System Components
17
Peripheral Device Panel
18
Control Panel
19
Basic Screen
22
Touch Screen
22
Reparing the System
27
System Assembly
27
System Moving/Positioning
28
Connecting and Powering the System
28
Using the Mains Supply
28
Using the Battery
29
Indicators
29
Powering On/Off the System
30
Powering on the System
30
Powering off the System
30
System Standby
30
Adjusting the System
30
Adjusting the Monitor Arm
30
Adjusting the Display Monitor
31
Connecting the Probe
32
Connecting the Pencil Probe
32
Disconnecting the Probe
32
Connecting the Peripheral Device
32
Connecting the Foot Switch
32
Connecting the Video Printer
33
Connecting the Network Printer
33
Connecting the USB Printer
34
Ustomizing Your System
35
General System Settings
35
General Settings
35
Display Settings
37
Storage Settings
38
Defined-Key Settings
39
Peripheral Device Settings
40
Defining Annotation Library
41
Body Mark Settings
42
Measurement Settings
43
General Measurement Settings
43
Application Settings
44
List Settings
47
Touch-Screen Settings
48
Adding a Parameter
48
Modifying a Parameter
48
Deleting a Parameter
48
Report Settings
49
Configuring DICOM
50
Storage Service Settings
50
Commitment Settings
51
DICOM Worklist Settings
52
MPPS (Modality Performed Procedure Step) Settings
53
Print Service Settings
54
QR List
56
Defining System Defaults
57
User Security
58
Administrator Settings
59
Viewing System Information
61
General Information
61
Acoustic Output
61
Touch Screen Information
62
Calibrating the Touch Screen
62
Reparing for an Exam
65
Acquiring Patient Information
65
Beginning a New Patient
65
Retrieving Archived Information
67
Using DICOM Worklist
68
Pausing/Resuming an Exam
68
Pausing an Exam
68
Resume an Exam
68
Completing/Discontinuing an Exam
68
Completing an Exam
68
Discontinuing an Exam
69
Cquiring Images
71
Selecting a Probe and an Exam Type
71
Customizing a Preset
71
To Arrange the Presets Display
72
Acquiring B-Mode Images
73
Entering B Mode
73
Optimizing B-Mode Images
73
Acquiring Color Flow Images
78
CFM Mode
78
PDI Mode
78
TDI Mode
79
Optimizing CFM/PDI/TDI Mode Images
80
Acquiring M-Mode Images
83
M Mode
83
Anatomical M-Mode
84
Optimizing M-Mode Images
85
Acquiring Spectral Doppler Images
86
PW Mode
86
CW Mode
88
Optimizing Spectral Doppler Images
90
Acquiring Triplex-Mode Images
93
B+Cfm/Tdi +M
93
B+Cfm/Pdi/Tdi +Pw
94
B+Cfm/Pdi+Cw
95
Lastography Imaging
97
Acquiring Elastography Images
97
Optimizing Elastography Images
98
Strain Map
99
Strain Process
99
Transparency
99
Contrast
99
Persistence
99
Frequency
99
Working with Elastography Images
100
Ontrast Imaging
101
Entering Contrast Imaging
101
Optimizing Contrast Images
102
Gain
102
Flash Power
102
Flash Time
102
Acquiring Contrast Images
103
Working with Contrast Images
103
3 D Imaging
105
Acquiring 3D Images
105
Working with 3D Images
107
Adjusting ROI
107
Setting Display Format
108
Using Auto Face
108
Setting Render Mode
108
Cropping Reviews
109
Moving/Rotating/Magnifying Images
110
Optimizing 3D Image
111
Observing Reference Image by the Plane
111
Observing Reviews by the Slice
112
Setting the Scan Mode
113
Adjusting Zangle/Zscale
113
Restoring the Image
114
Customizing Presets
114
Performing Follicle Auto-Measurement
114
10 4 D Imaging
115
Acquiring 4D Images
115
Entering the Real-Time 4D Imaging
115
Acquiring Dynamic 3D Image
117
Working with 4D Images
117
Orking with Images
119
Imaging Features
119
Imaging Reverse
119
Split Screen Display
119
M-Tuning
120
Harmonic Imaging
120
Panoramic Imaging
121
Magnifying an Image
122
Freezing an Image
123
Using Cine
123
Reviewing Cine
123
Cutting Cine
123
Annotations and Body Marks
124
Annotating an Image
124
Body Mark
124
Deleting Annotations and Body Marks
125
Using ECG
125
Basic Procedures of ECG Operation
125
Optimizing Parameters
126
Reviewing ECG
126
Anaging Images/Data
127
Storing an Image
127
Storing 2D Image
127
Storing 3D/4D Image
127
Viewing an Image
127
Viewing a Current Image
127
Retrieving an Image
128
Sharing Data
128
Backing up Data
129
Backing up Data to a USB Drive
129
Backing up Data to DVD
129
Importing Data to the System
129
Orking with DICOM
131
Verifying Connectivity
131
DICOM Storage
131
Storing the Current Image
131
Storing Patient Data
131
DICOM Print
132
Print the Current Image
132
Print Patient Data
132
DICOM Worklist
132
Mpps
133
Storage Commitment
134
DICOM Queue
135
Query/Retrieve List
135
Robes and Biopsy
137
Probe
137
Available Probes
137
Probe Usage
138
Cleaning the Probe
139
Disinfecting and Sterilizing the Probe
140
Disinfecting and Sterilizing the Probe Cable
142
Storage and Transportation
143
Biopsy
143
Available Biopsy Brackets
144
Assembling the Biopsy Bracket
145
Preparing for a Biopsy
147
Verifying the Biopsy Bracket
147
Performing a Biopsy
148
Cleaning the Biopsy Bracket
149
Sterilizing the Biopsy Bracket
149
Storage
150
Ystem Maintenance
151
Cleaning the System
151
To Clean the System Surface
151
To Clean the Dust Filter
151
To Clean the Trackball
151
Maintenance Checks
152
Troubleshooting
152
Replacing the Fuse
153
Equipment Disposal
153
Customer Service
153
Appendix A Specifications
154
Appendix B EMC Guidance and Manufacturer's Declaration
155
Electromagnetic Emissions
155
Electromagnetic Immunity
155
Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the Equipment
158
Appendix C in Situ, Derated, and Water Value Intensities
159
Appendix D Recommended Coupling Gel, Cleaner and Disinfectant
160
Coupling Gel
160
Cleaner
161
Disinfectant
161
Appendix E Acoustic Output Data
162
