Working Instruction, Mechanical
3/000 21-1/FEA 209 544/129 A
Company Internal
©
Sony Ericsson Mobile Communications AB
21(34)
Main Antenna continued

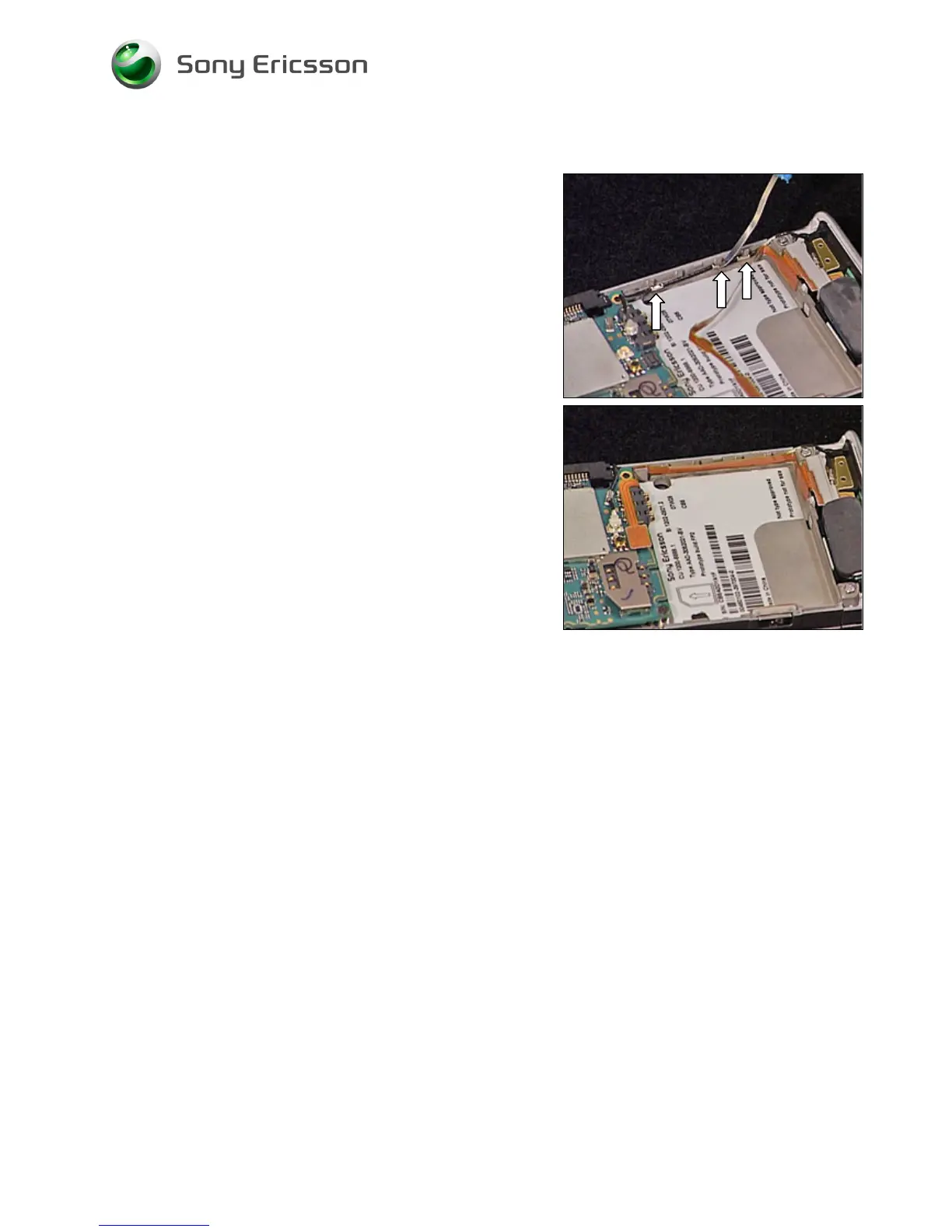

4. Attach the coax cable from the Speaker Flex Module
underneath the 3 hooks in the frame using a Dental
hook.
5. Mount the Speaker Flex onto the frame. Make sure
the adhesive sticks to the frame.
Follow the 4.1.4 – 4.1.6 Reassembly instructions!
