Sony Ericsson W910 - Key Foil Assy Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/129 A
Company Internal
© Sony Ericsson Mobile Communications AB
24(34)

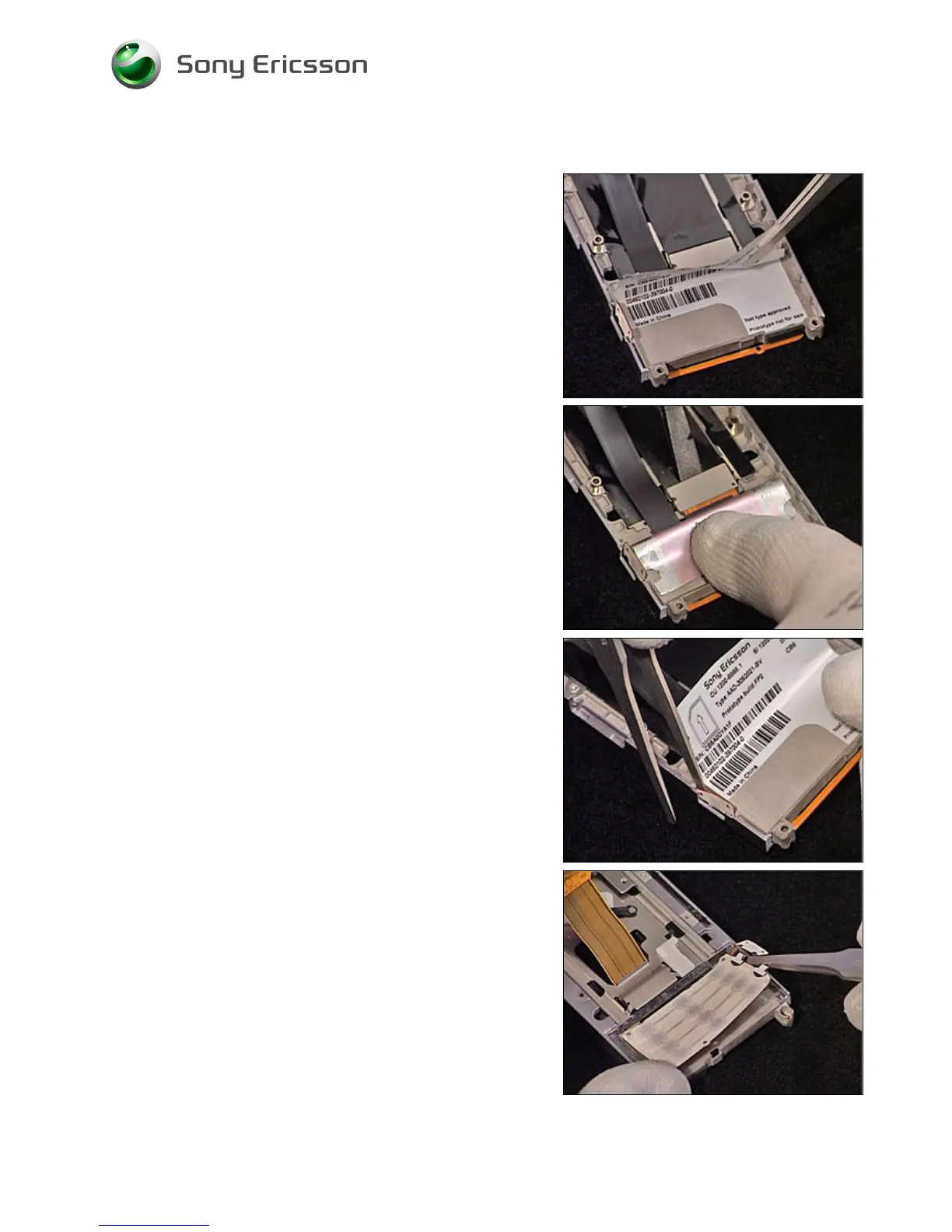

3.25 Key Foil Assy
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
1. Carefully lift the Label using a pair of tweezers, to be
able to access the Key Foil Assy Board to Board
connector.
2. Release the Key Foil Assy Board to Board
connector using the orange stick.
3. Release the Camera Switch from the Slider
Assembly using a pair of tweezers.
4. Release the Key Foil Assy from the Slider Assembly
using a pair of tweezers.
