Sony Ericsson W910 - QCIF MPixel CMOS Camera Replacement; Receiver Flex Module Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/129 A
Company Internal
© Sony Ericsson Mobile Communications AB
26(34)
3.26 Camera QCIF MPixel CMOS
Follow the 2.1.1 – 2.1.6 Disassembly instructions!
Remove the Video Camera using the Camera Removal Tool. Prepare the new Camera.
Follow the 4.1.1 – 4.1.6 Reassembly instructions!
3.27 Receiver Flex Module
REMOVAL
Follow the 2.1.1 – 2.1.6 Disassembly instructions!

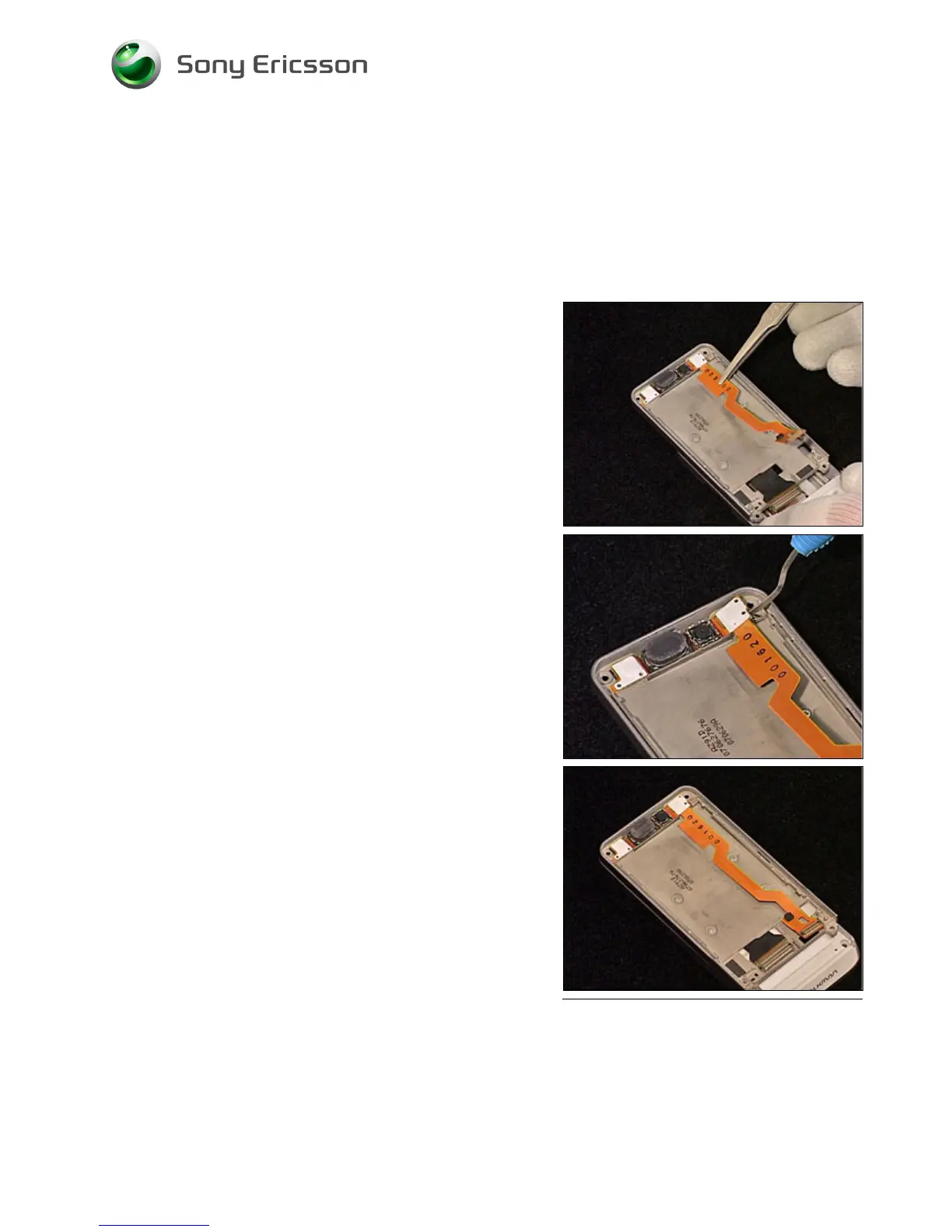

Release the Receiver flex from the Slider Assembly using a
pair of tweezers.
Release the upper part of the Receiver flex using a Dental
hook.
INSTALLATION
Position the new Receiver Flex Module into the cavity of the
Slider Assembly. Carefully press it into place and make
sure the adhesive sticks to the Slider Assembly.
Follow the 4.1.1 – 4.1.6 Reassembly instructions!
