Working Instruction, Mechanical
3/000 21-1/FEA 209 544/129 A
Company Internal
©
Sony Ericsson Mobile Communications AB
6(34)
2 Disassembly
When you are going to replace a part being listed in Replacements, the instruction of that section
usually begins by directing you to this Disassembly section with a specification of the instructions you
have to carry out in order to disassemble the phone as far as needed before returning to
Replacements for the actual replacement.

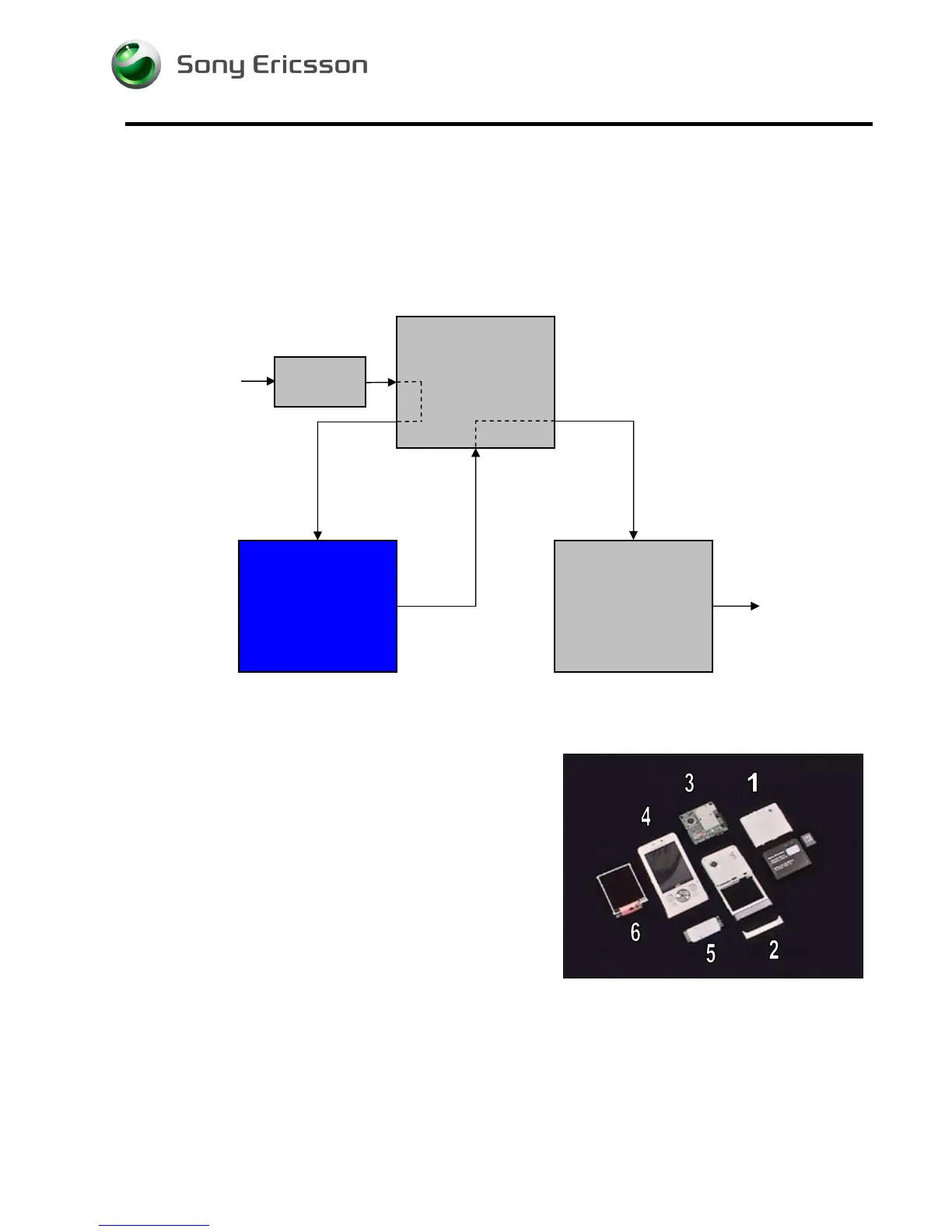

2.1 Overview
The disassembly is done in the following sequence:
1. M2, Battery Cover and Battery
2. Rear Back Cover
3. Main PCB
4. Front Cover Assembly
5. Navi Key PBA
6. Display
Start
Done
REPLACEMENTS
DISASSEMBLY
REASSEMBLY
