Working Instruction, Mechanical
3/000 21-1/FEA 209 544/129 A
Company Internal
©
Sony Ericsson Mobile Communications AB
22(34)

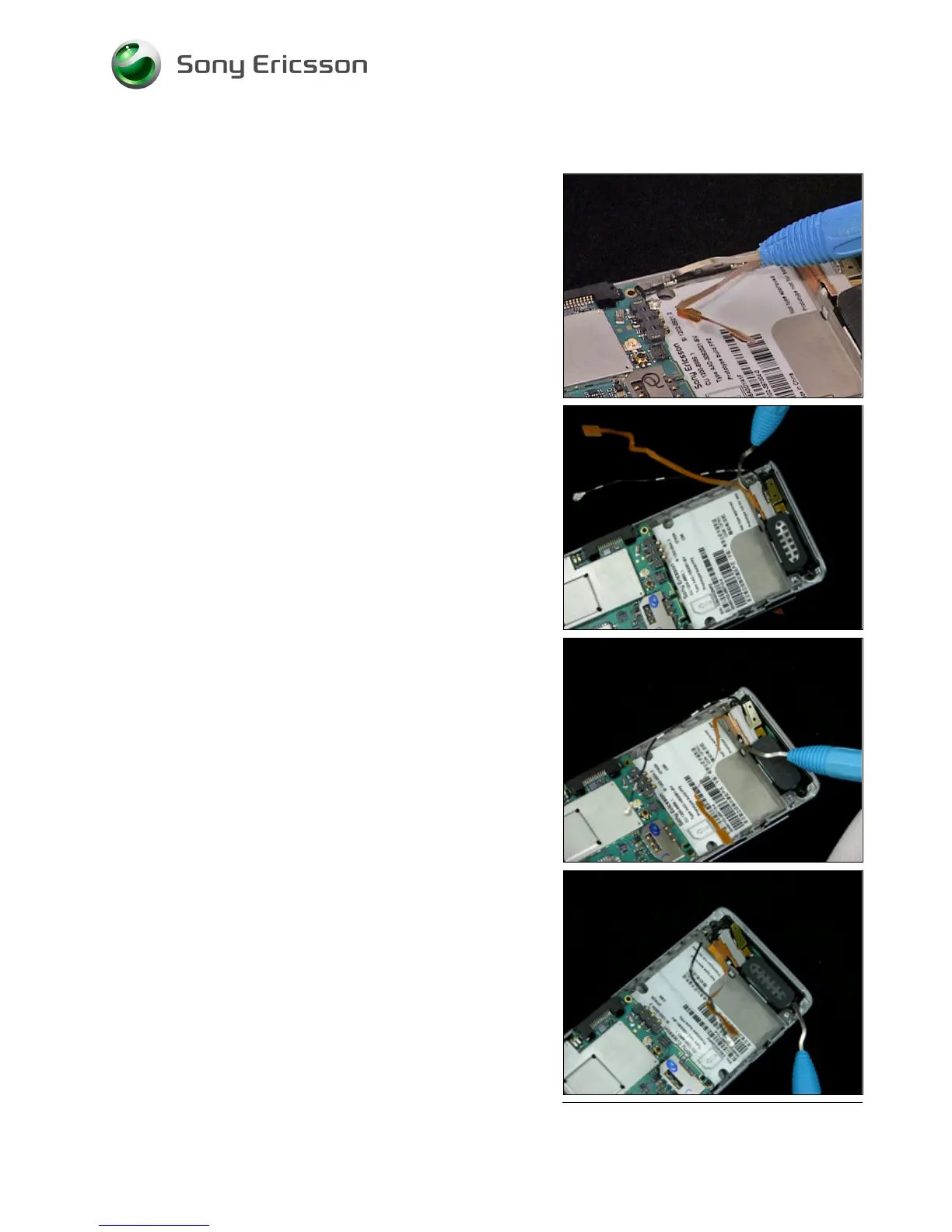

3.24 Speaker Flex Module
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
B
E CAREFULL NOT TO DAMAGE THE COAX CABLE AND
SPEAKER FLEX
1. Carefully release the speaker flex using a Dental
hook.
2. Carefully release the coax cable from the frame
using a Dental hook.
3. Carefully release the Holder Antenna from the Main
Antenna.
4. Repeat the previous step on the other side of the
Holder Antenna.
5. Carefully release the speaker from the Main
Antenna using a Dental hook.
