Sony Ericsson W910 - Page 23

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/129 A
Company Internal
© Sony Ericsson Mobile Communications AB
23(34)
Speaker Flex Module continued
INSTALLATION

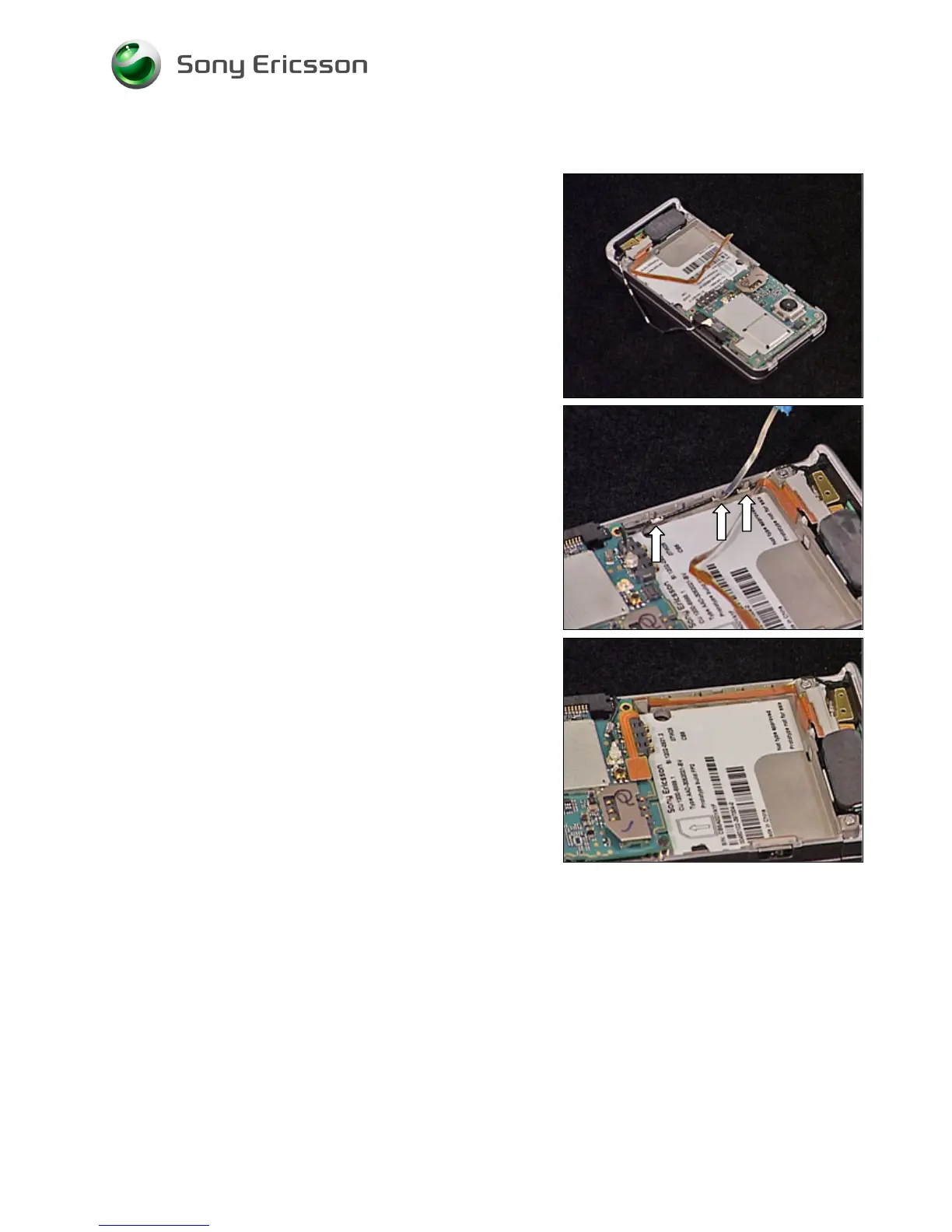

1. Position the Speaker Flex Module inside the Main
Antenna.
2. Carefully press the Speaker Flex Module into
position. Make sure the Holder Antenna Sub Assy
clicks into position and the adhesive fixates to the
Main Antenna and the frame.
3. Attach the coax cable from the Speaker Flex Module
underneath the 3 hooks in the frame using a Dental
hook.
4. Mount the Speaker Flex onto the frame. Make sure
the adhesive sticks to the frame.
Follow the 4.1.4 – 4.1.6 Reassembly instructions!
