Sony BDP-S550 - Audio;Video and S-Video Connection Guide

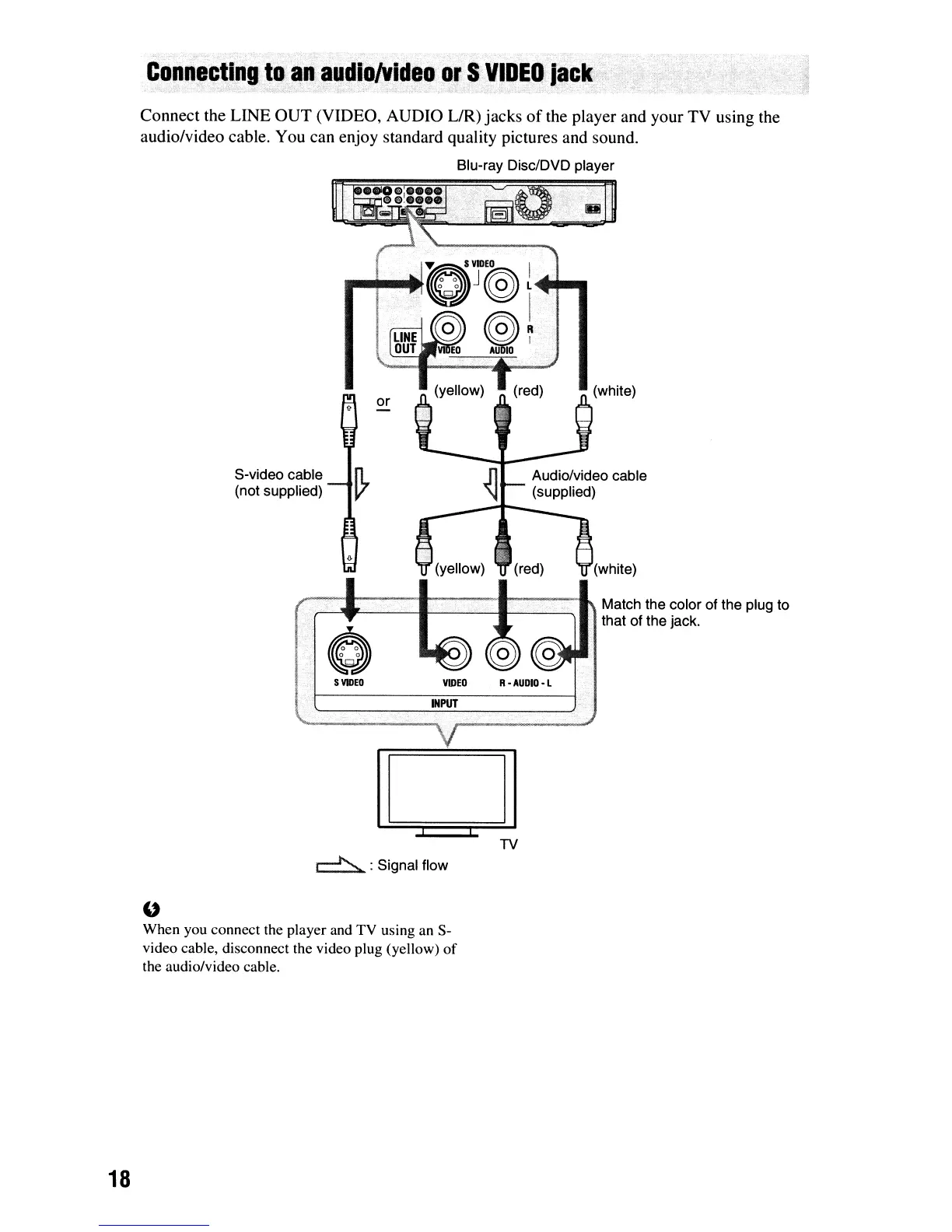

Connect the LINE OUT (VIDEO, AUDIO LlR) jacks of the player and your TV using the
audio/video cable. You can enjoy standard quality pictures and sound.
Blu-ray Disc/DVD player
S-video cable
(not supplied)
S VIDEO
VIDEO
INPUT
R• AUDIO ·l
(white)
Match the color of the plug to
that of the jack.
18
~ : Signal flow
"
When you connect the player and TV using an S-
video cable, disconnect the video plug (yellow)
of
the audio/video cable.
