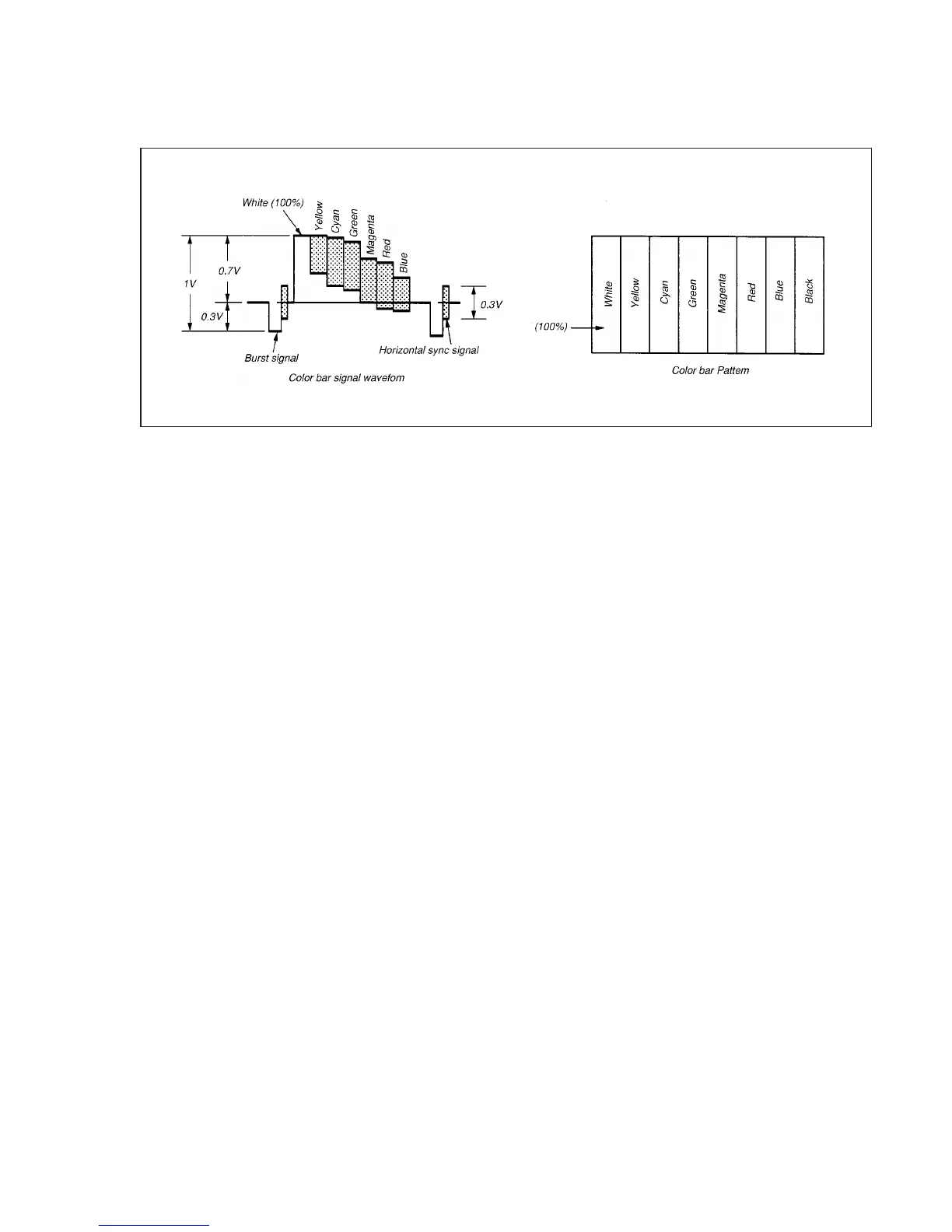

Fig. 5-3-3. shows the 75% color bar signals recorded on the align-
ment tape.
Note: Measure using the VIDEO terminal (Terminated at 75 Ω).
Fig. 5-3-3. Color Bar Signals of the Alignment Tape
