Sony CCD-TR315E - Removal of VC-215, SE-80;81, DD-117 and PJ-90;91 Boards; Removal of View Finder Block

2-5
5 VF base assembly
3 Tapping screw
4 Tapping screw
7 Three tapping
screws
6 Tilt-up the EVF block to
the direction of arrow.
2 VF flexible retainer sheet
1 Flat cable (FFC-235)
CN008, 4P
—B/W view finder—
CCD-TR315E/TR415E/TR425E/TR515E/TR713E and TRV series
5 VF base assembly
3 Tapping screw
4 Tapping screw
7 Three tapping
screws
6 Tilt-up the EVF block to
the direction of arrow.
2 VF flexible retainer sheet
1 FP-57 flexible board
CN007, 20P
9 FP-220 flexible board
CN901, 8P from loading motor
!¢ FP-56 flexible board
CN916, 18P
!∞ FP-621 flexible board
CN902, 12P
7 FP-620 flexible board
(VC side) CN904, 10P
(SE side) CN650, 10P
!£ FP-221 flexible board
CN908, 15P
!™ FP-248 flexible board
CN905, 12P
!¡ Flexible board
CN905, 10P
from drum motor
0 Flexible board
CN001, 16P
from video head
!§ Screw (M2x3)
!¡ Two screws (M2 x 3)
6 Four screws (M2x3)
8 SE-80/81 board
!• VC-215 board
1 FP-621 flexible boar
d
CN101, 12P
4 Three screws (M2 x 3)
2 Two screws (M2 x 4)
5 DD-117 board
3 PJ-90/91 board
CN931, 70P
DD-117
board
SE-80/81
VC-215
board

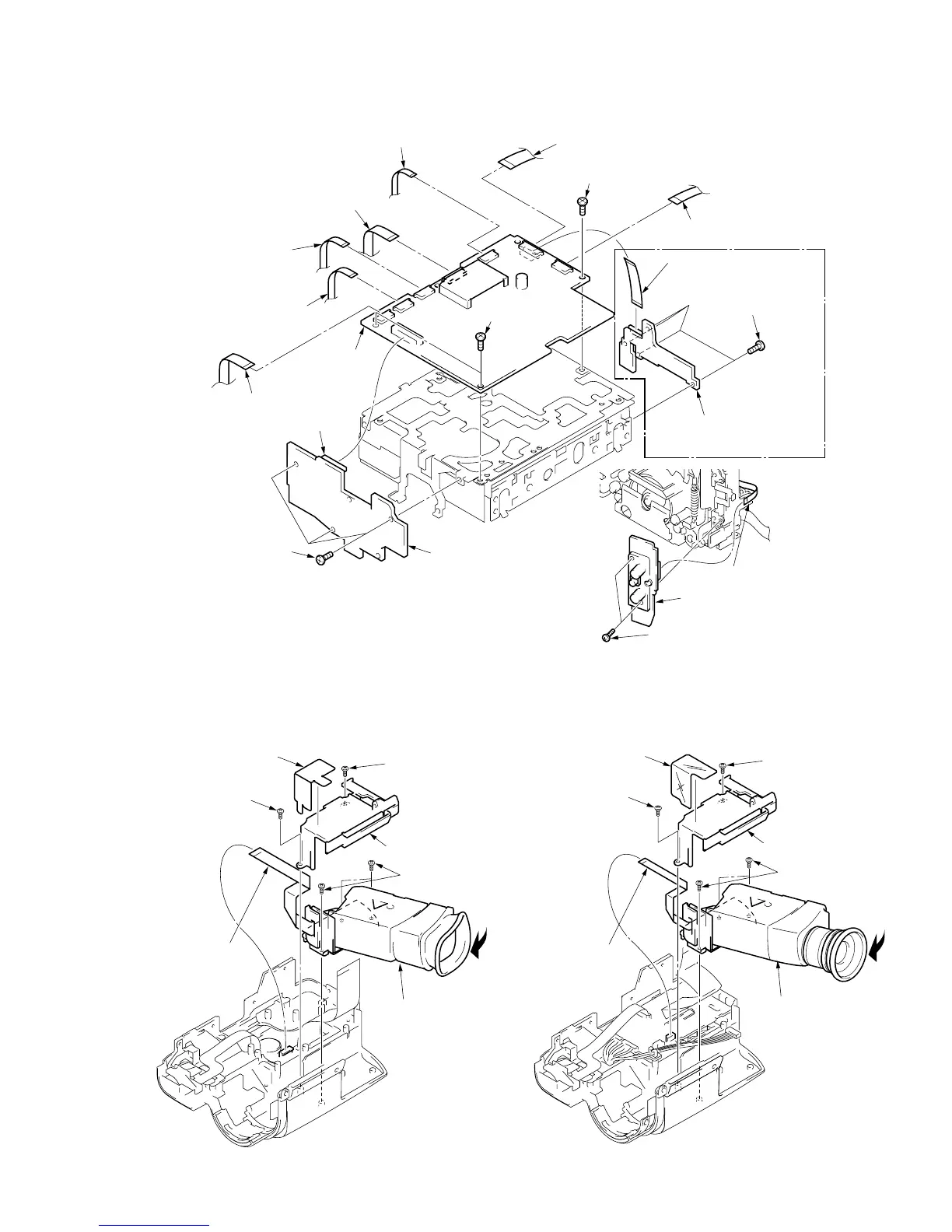

2-10. REMOVAL OF VC-215, SE-80/81, DD-117 AND PJ-90/91 BOARDS
2-11. REMOVAL OF VIEW FINDER BLOCK
—Color view finder—
CCD-TR516E
CCD-TR713E & TRV series
