Sony CCD-TR315E - Frame Schematic Diagram (1); Printed Wiring Boards and Schematic Diagrams

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
4-1
4-2
4-3
SECTION 4
PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

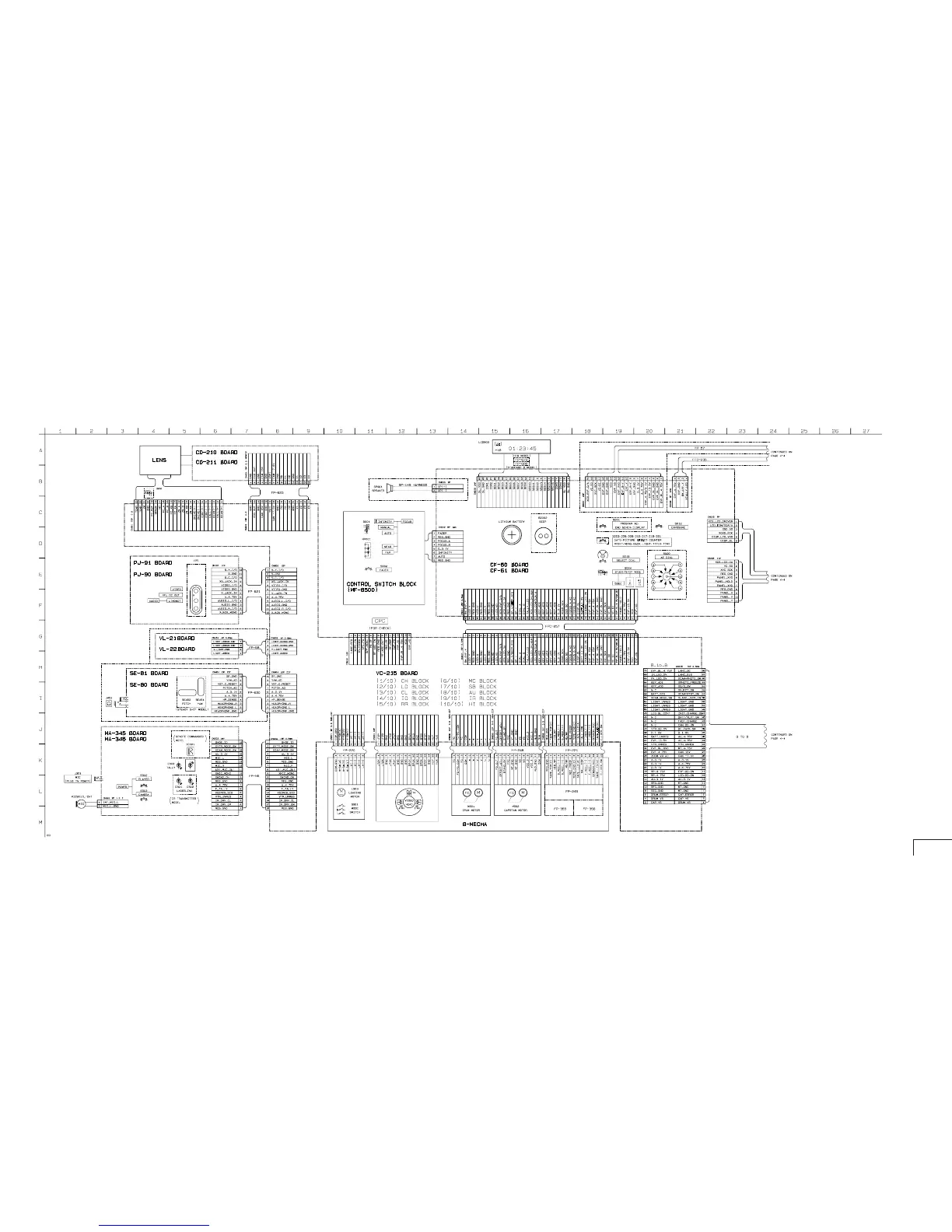

4-1. FRAME SCHEMATIC DIAGRAM (1)
FRAME
(TR SERIES)
(TRV SERIES)
(TRV SERIES)
(TR SERIES)
(TRV SERIES)
(TRV SERIES)
(TR SERIES)
(TRV SERIES)
(TRV SERIES)
(TR SERIES)
(TR SERIES)
(TRV SERIES)
(TR SERIES)
TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E
STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP
B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/
TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
COLOR EVF MODEL : CCD-TR516E
REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/
TRV27E/TRV27EP/TRV36E/TRV46E
VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E
STEADY SHOT MODEL : CCD-TR713E/TRV46E
IR TRANSMITTER MODEL : CCD-TR713E/TRV46E
LASER LINK MODEL : CCD-TR713E/TRV46E
(TR713E)
(TR SERIES)
COLOR EVF MODEL
W/B EVF MODEL
( VIDEO LIGHT MODEL )
( TR515E/TR516E/TR713E )
( TRV36E/TRV46E )
( TR713E & TRV SERIES )
