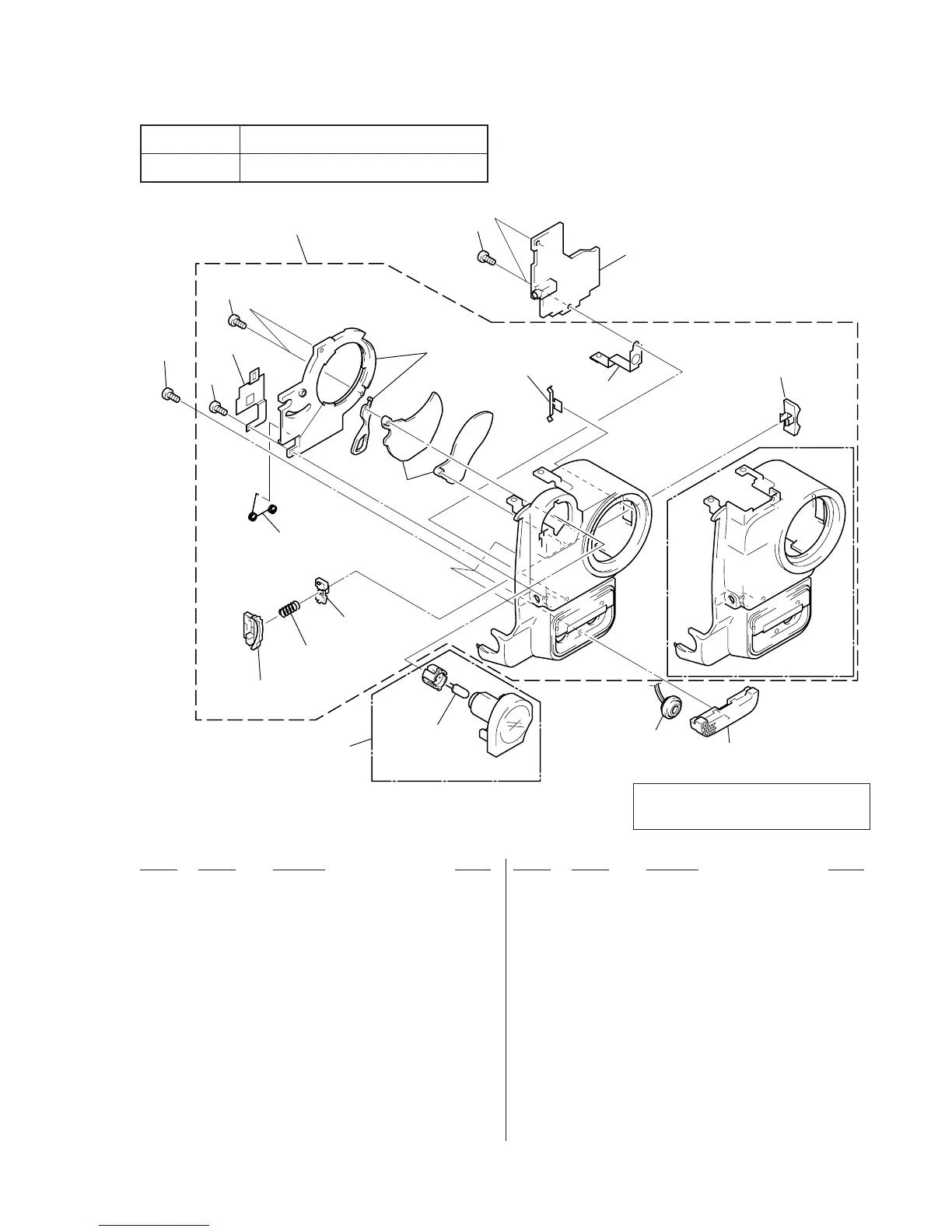

6-1-3. FRONT PANEL BLOCK ASSEMBLY
107
101
102
MA-345
346
not supplied
not supplied
not supplied
not supplied
110
110
110
110
108
109
106
105
104
MIC901
103
VL901
LAMP,HALOGEN
XB-3D(DC6V/3W)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 X-3949-168-1 PANEL ASSY, FRONT (TR515E/TR516E)
101 X-3949-169-1 PANEL ASSY, FRONT (TR713E)
101 X-3949-453-1 PANEL ASSY (V), FRONT (TRV46E)
101 X-3949-454-1 PANEL ASSY (V), FRONT (TRV36E)
101 X-3949-503-1 PANEL ASSY, FRONT (TR315E/TR415E)
101 X-3949-513-1 PANEL ASSY, FRONT (TR425E)
101 X-3949-514-1 PANEL ASSY (V), FRONT (TRV16E/TRV26E)
101 X-3949-515-1 PANEL ASSY (V), FRONT (TRV27E/TRV27EP)
102 A-7073-782-A MA-345 (B) BOARD, COMPLETE
(TR515E/TR516E)
102 A-7073-794-A MA-345 (IB) BOARD, COMPLETE (TR713E)
102 A-7073-812-A MA-346 (VIB) BOARD, COMPLETE (TRV46E)
102 A-7073-820-A MA-345 (SL) BOARD, COMPLETE
(TR315E/TR415E)
102 A-7073-823-A MA-346 (VZB) BOARD, COMPLETE (TRV36E)
102 A-7073-873-A MA-346 (VZL) BOARD, COMPLETE
(TRV16E/TRV26E)
102 A-7073-888-A MA-345 (Z0) BOARD, COMPLETE (TR425E)
102 A-7073-889-A MA-346 (V) BOARD, COMPLETE
(TRV27E/TRV27EP)
* 103 X-3948-493-1 GRILLE ASSY (G), MICROPHONE
104 3-987-632-01 HOLDER, P KNOB
105 3-973-619-01 SPRING, COMPRESSION
106 3-987-633-01 BUTTON, LOCK
107 3-987-631-01 KNOB, P
108 3-987-882-01 SPRING, TORSION
109 3-987-642-01 SPRING, CLICK
110 3-948-339-61 TAPPING
MIC901 1-542-312-11 MICROPHONE
! VL901 1-517-760-11 LIGHT, VIDEO (for Video light models)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
Video light model CCD-TR515E/TR516E/TR713E
CCD-TRV36E/TRV46E
No video light CCD-TR315E/TR415E/TR425E
model CCD-TRV16E/TRV26E/TRV27E/TRV27EP
Video light models
No video light models
