Sony CCD-TR315E - Removal of TR Cover, CF-60 Board and Display Panel (TR Series); Removal of IR Cover, CF-61 Board and LCD Panel (TRV Series); Display Panel (TR Series)

2-6
2 Two tapping screws
6 Two tapping screws
7 Three tapping screws
8 Two tapping screw
0 Two tapping screws
!¡ Two tapping
screws
!¢ LCD holder
!∞ Liquid crystal display panel
Phase adjustment
!™ CF-60 board
!£ CN009
Hole
9 TR cover assembly
!§ IR kno
b
!¶ Link plate spring
Claw
3 Control switch block (MF-8500)
1 Flexible connector
CN002, 8P
5  Flat cable (FFC-257)
CN001, 50P
4  FP-57 flexible board...(Color EVF type only)
CN007, 20P
Flat cable (FFC-235)...(B/W EVF type only)
CN008, 4P
S015
S024
CF-60
2 Two tapping screws
!™ Two tapping
screws
6 Harness
!¡ Three tapping screws
!§ Four tapping
screws
8 Three tapping screws
7 Harness (PD-108)
9 Four tapping screws
0 CF-61 board
Phase adjustment
Hole
!£ IR cover assembly
!¶ LCD panel
!¢ IR kno
b
!∞ Link plate spring
Claw
3 Control switch block (MF-8500)
1 Flexible connector
CN002, 8P
5  Flat cable (FFC-257)
CN001, 45P
4  Flat cable (FFC-235)
CN008, 4P
S024
CN008
CF-61

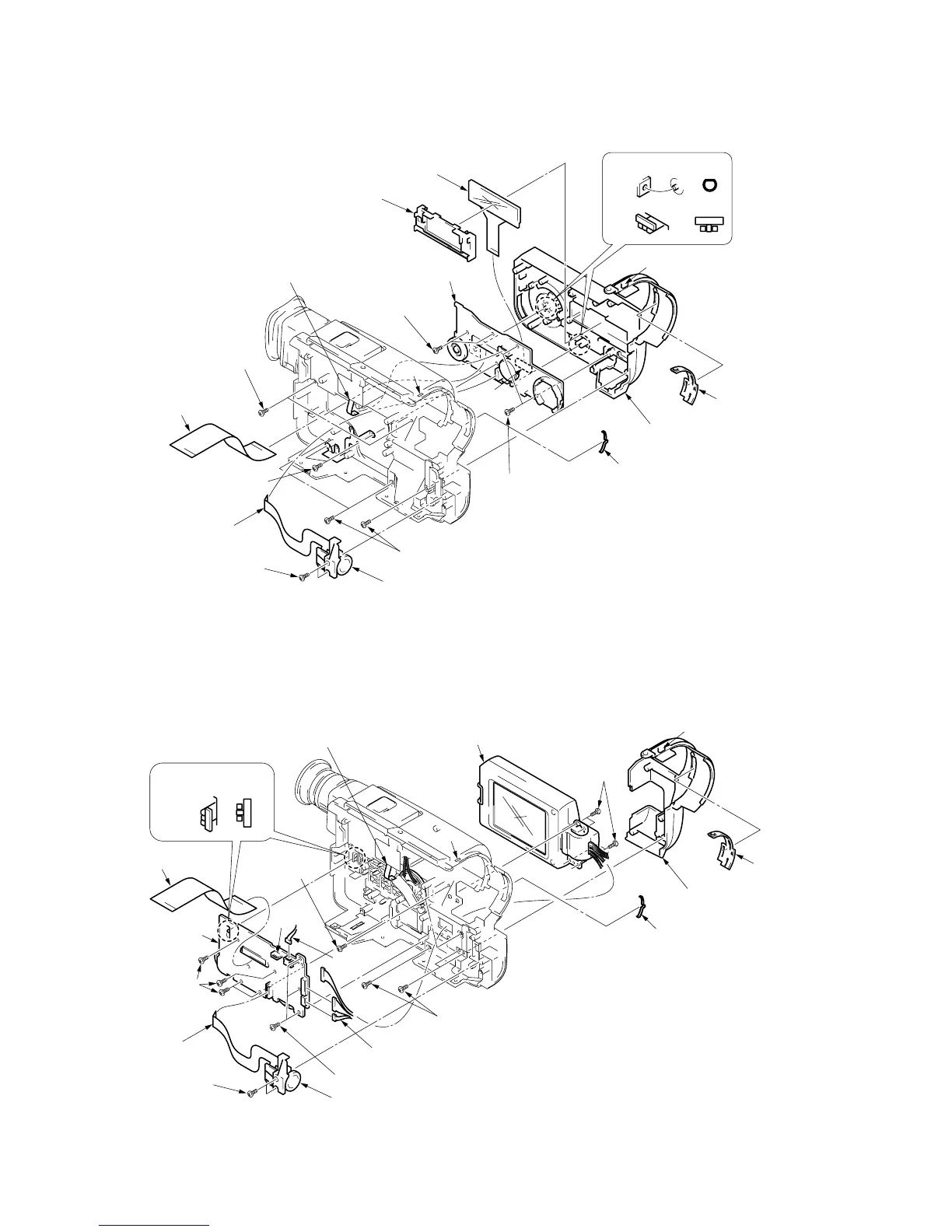

2-12. REMOVAL OF TR COVER, CF-60 BOARD AND DISPLAY PANEL ...(TR series)
2-13. REMOVAL OF IR COVER, CF-61 BOARD AND LCD PANEL...(TRV series)
