Sony CCD-TR315E - Circuit Boards Location; Flexible Boards and Flat Cables Location

2-8
E
VF-119... Color EVF models only
(Color EVF)
DD-117
(Power)
VL-21...
TR515E/TR516E/TR713E
VL-22... TRV36E/TRV46E
(Video light)
VF-120...
Color EVF models only
(Color EVF)
VF-99...
B/W EVF models only
(B/W EVF)
MA-345...
TR series
MA-346... TRV series
(Mic, Laser link)
PJ-90...
TR series
PJ-91... TRV series
(AV Out)
VC-215
Camera, Y/C processor, IN/OUT,
REC.PB head amp, Servo/System control,
Servo, Audio, IR transmitter, Mode control
PD-107... TRV series only
RGB decoder, LCD,
LCD drive, Back light
CF-61...
TRV series only
(Control)
CF-60...
TR series only
(Control)
SE-80...
TR713E only
SE-81... TRV series only
(Steady shot)
CD-210...
TR series only
CD-211... TRV series only
(CCD imager)
LB-54...
Color EVF models only
(Back light)
Stand-by, Start/Stop
(SS-8500)
FP-623
Flat cable (FFC-235)...
B/W EVF models only
FP-56
FP-355
FP-620...
TR713E
&TRV series only
FP-220
FP-221
FP-248
FP-249
FP-356
Drum motor
Video head
FP-642...
TRV series onl
y
FP-621
Capstan motor
Zoom lens
Flat cable (FFC-257)
Back light...
Color EVF models only
FP-58... Video light models only
FP-57... Color EVF models only
Function key
(FK-8500)
Manual focus
(MF-8500)
FP-680

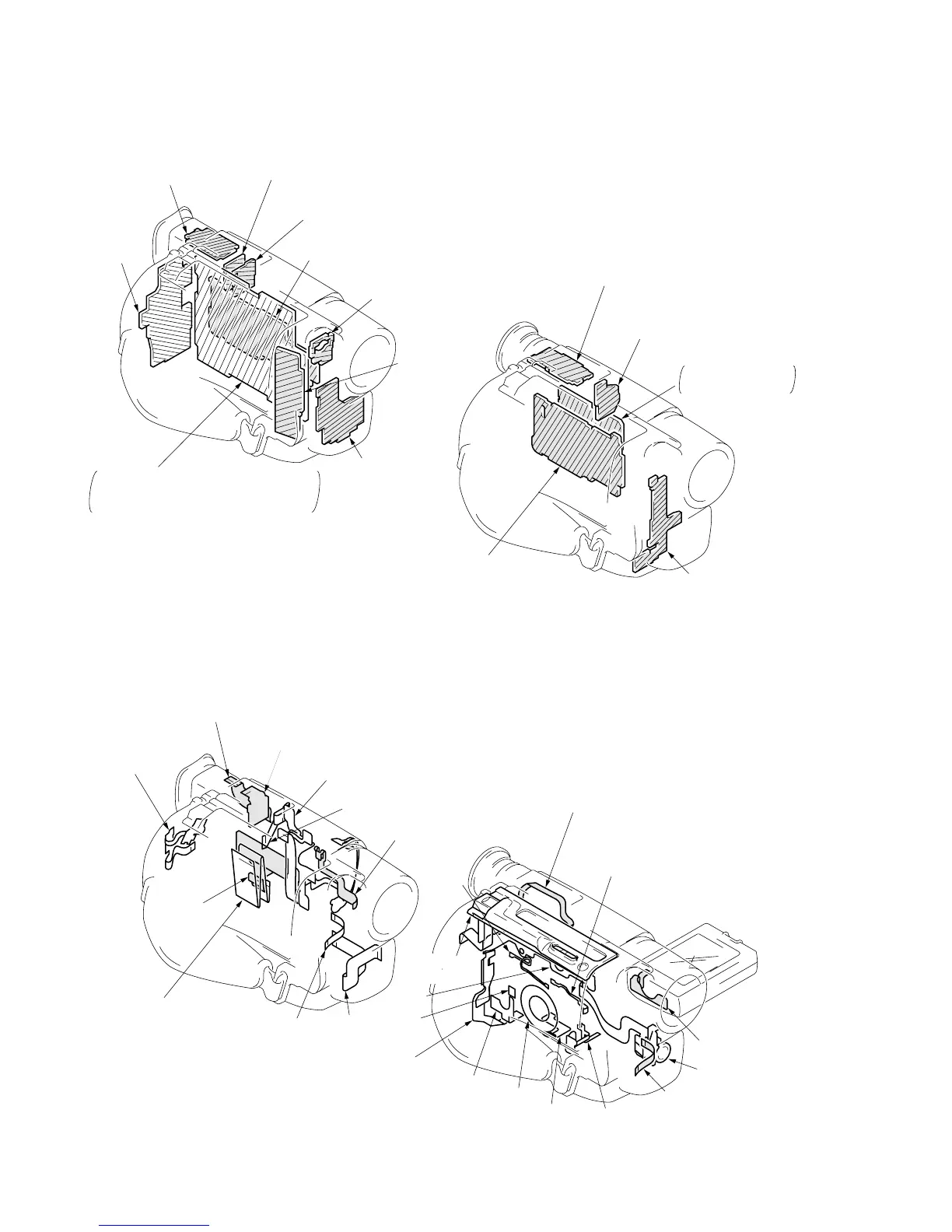

2-15. CIRCUIT BOARDS LOCATION
2-16. FLEXIBLE BOARDS AND FLAT CABLES LOCATION
