Sony CCD-TR315E - Cabinet (R) Block Assembly (TRV Series)

6-5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 1-475-620-11 SWITCH BLOCK, CONTROL (MF-8500)
152 X-3949-171-1 CABINET (R) ASSY (Digital zoom : 72x)
(TRV36E:AEP,UK/TRV46E:AEP,UK)
152 X-3949-280-1 CABINET (R) ASSY (Digital zoom : 330x)
(TRV36E:AEP,EE,NE,RU/TRV46E:AEP,E,EE,NE,RU,HK,AUS,CN,JE)
152 X-3949-520-1 CABINET (R) ASSY (Digital zoom : 36x)
(TRV26E:AEP,UK)
152 X-3949-521-1 CABINET (R) ASSY (Digital zoom : 72x)
(TRV27E:AEP,UK)
152 X-3949-522-1 CABINET (R) ASSY (TRV16E)
152 X-3949-523-1 CABINET (R) ASSY (Digital zoom : 220x)
(TRV26E:AEP,EE,NE,RU)
152 X-3949-524-1 CABINET (R) ASSY (Digital zoom : 330x)
(TRV27E:AEP,EE,NE,RU/TRV27EP)
153 3-989-121-01 SPRING, TENSION
* 154 3-987-842-01 SHEET, VF FLEXIBLE RETAINER
155 X-3948-603-1 BASE ASSY, VF

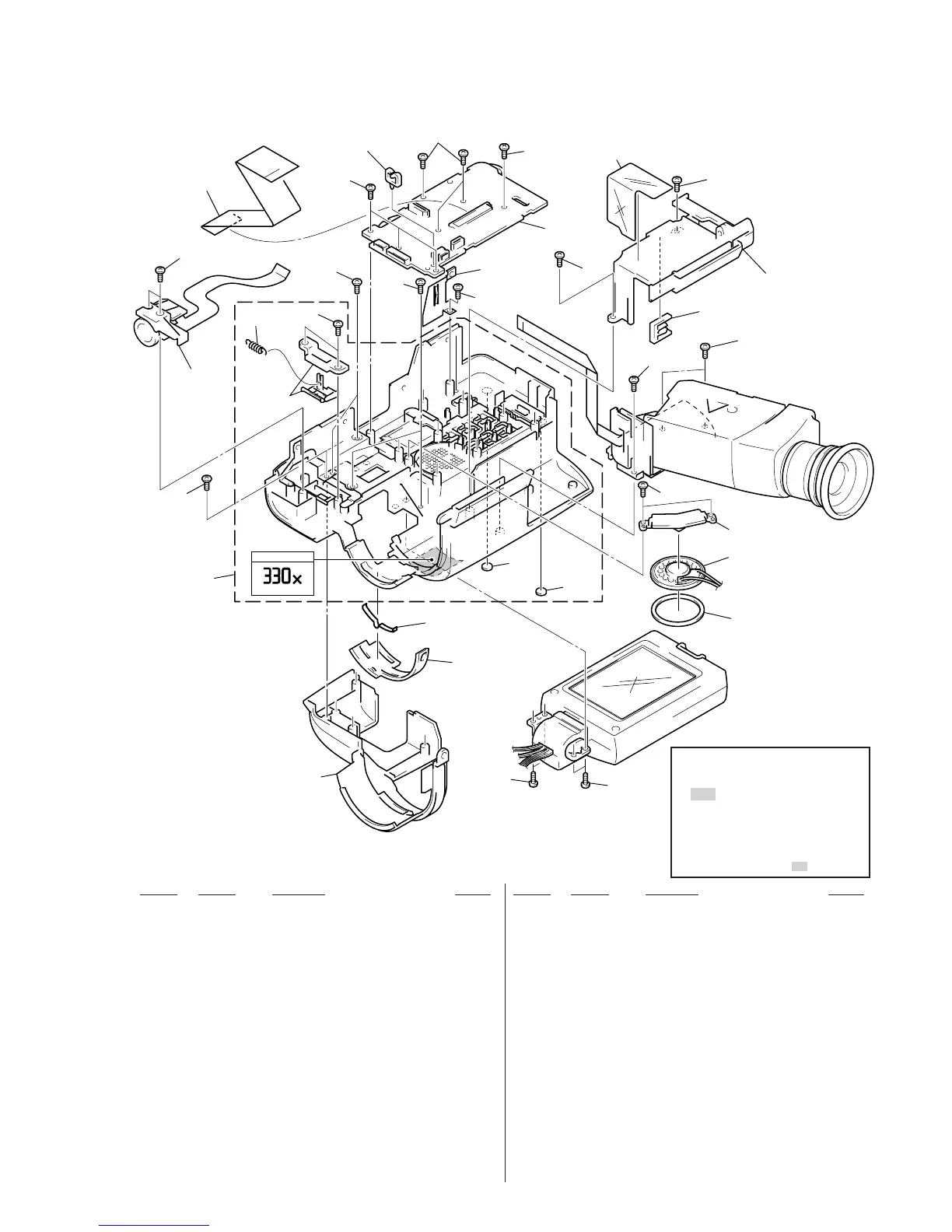

6-1-5. CABINET (R) BLOCK ASSEMBLY (TRV series)
156 3-987-783-01 LOCK, TILT
157 1-790-334-11 CABLE, FLEXIBLE FLAT (FFC-257F)
158 A-7073-811-A CF-61 BOARD, COMPLETE
159 X-3949-173-1 COVER ASSY, IR (TRV46E)
159 X-3949-349-1 COVER ASSY, IR (TRV36E)
159 X-3949-530-1 COVER ASSY, IR
(TRV16E/TRV26E/TRV27E/TRV27EP)
160 3-959-978-02 CUSHION, PANEL
161 3-948-339-61 TAPPING
162 3-987-744-01 KNOB, IR
163 3-987-739-01 SPRING, LINK PLATE
164 9-987-742-01 PLATE (878), GROUND
165 3-948-339-01 SCREW, TAPPING
* 166 3-053-798-01 CLAMP, HARNESS
167 3-965-367-01 SPACER, SP
SP901 1-504-753-41 SPEAKER (2.8 CM)
DIGITAL ZOOM
Note
Sample
161
153
161
161
161
161
154
161
161
167
161
151
157
166
164
161
152
163
159
156
165
161
165
161
155
161
160
160
162
not supplied
not supplied
SP901
158
161
161
CF-61
See page 6-8
See page 6-9
Note
About the magnification display
of section
There are two kinds of magnification of
Digital zoom only for the AEP model.
Please make sure the magnification of
your Handycam with reference to the
Cabinet (R) assembly of section.
