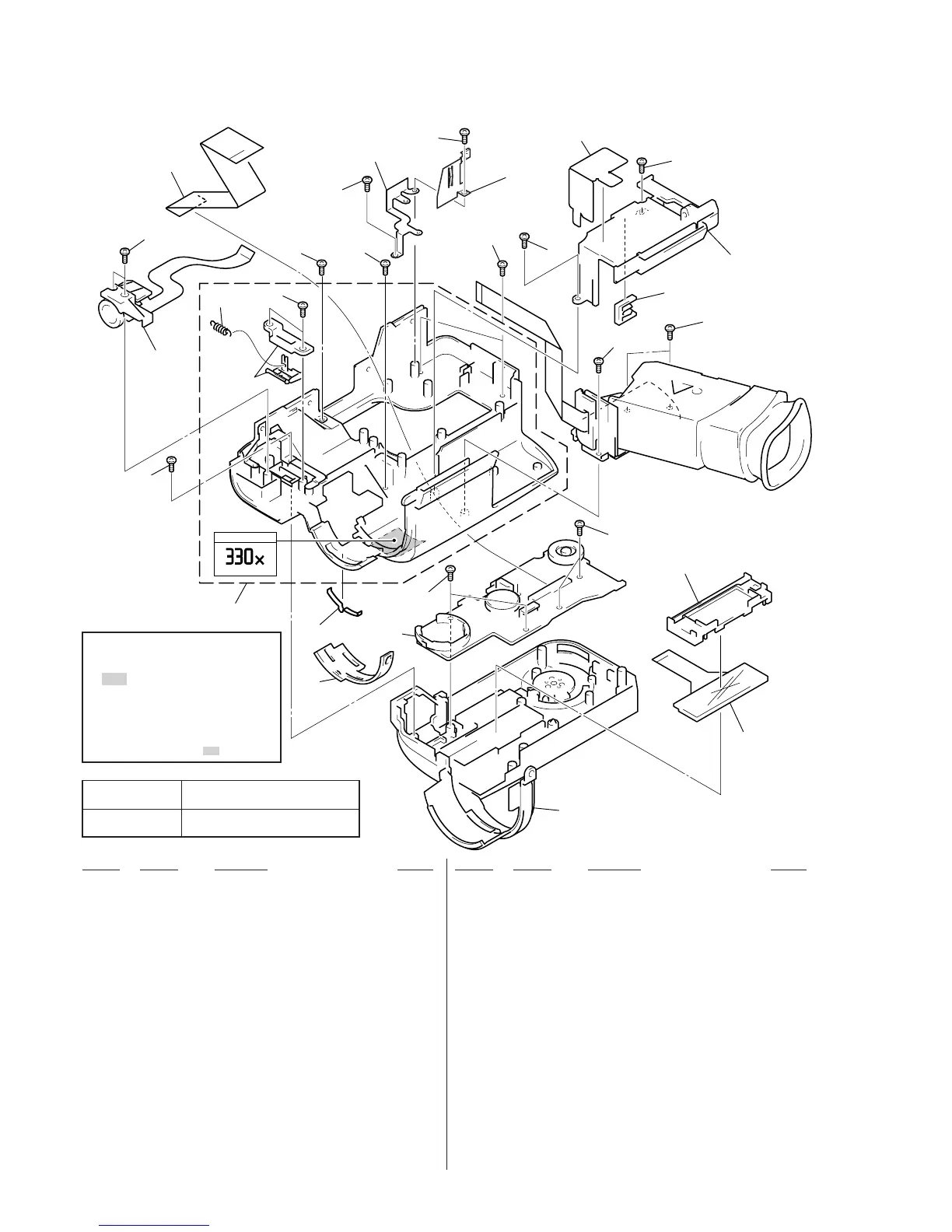

6-1-4. CABINET (R) BLOCK ASSEMBLY (TR series)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 1-475-620-11 SWITCH BLOCK, CONTROL (MF-8500)
152 X-3949-170-1 CABINET (R) ASSY (Digital zoom : 72x)
(TR515E:AEP,UK/TR713E:AEP,UK)
152 X-3949-179-1 CABINET (R) ASSY (Digital zoom : 330x)
(TR515E:AEP,EE,NE,RU/TR516E/TR713E:AEP,EE,NE,RU)
152 X-3949-501-1 CABINET (R) ASSY (TR315E)
152 X-3949-516-1 CABINET (R) ASSY (Digital zoom : 36x)
(TR415E:AEP,UK)
152 X-3949-517-1 CABINET (R) ASSY (Digital zoom : 72x)
(TR425E:AEP,UK)
152 X-3949-518-1 CABINET (R) ASSY (Digital zoom : 220x)
(TR415E:AEP,EE,NE,RU)
152 X-3949-519-1 CABINET (R) ASSY (Digital zoom : 330x)
(TR425E:AEP,EE,NE,RU)
153 3-989-121-01 SPRING, TENSION
* 154 3-987-842-01 SHEET, VF FLEXIBLE RETAINER
(for B/W View finder models)
155 X-3948-603-1 BASE ASSY, VF
156 3-987-783-01 LOCK, TILT
157 1-790-334-11 CABLE, FLEXIBLE FLAT (FFC-257F)
158 A-7073-783-A CF-60 (CN) BOARD, COMPLETE (TR516E)
158 A-7073-795-A CF-60 (P) BOARD, COMPLETE
(TR415E/TR425E/TR515E/TR713E)
158 A-7073-821-A CF-60 (N) BOARD, COMPLETE (TR315E)
159 X-3949-172-1 COVER ASSY, TR (TR515E/TR516E/TR713E)
159 X-3949-500-1 COVER ASSY, TR (TR315E/TR415E/TR425E)
160 3-053-195-01 HOLDER, LCD
161 3-948-339-61 TAPPING
162 3-987-744-01 KNOB, IR
163 3-987-739-01 SPRING, LINK PLATE
164 9-987-742-01 PLATE (878), GROUND
165 3-948-339-01 SCREW, TAPPING
* 166 3-053-202-01 SHEET METAL, ELECTROSTATIC
LCD903 A-7093-473-A INDICATION LCD BLOCK ASSY
DIGITAL ZOOM
161
153
161
161
166
154
161
161
161
Note
CF-60
161
161
151
157
160
164
152
158
163
159
LCD903
156
165
161
165
161
155
161
162
not supplied
161
Sample
See pages 6-7 to 6-8
B/W view finder
model
Color view finder
model
CCD-TR315E/TR415E/TR515E/
TR425E/TR713E
CCD-TR516E
Note
About the magnification display
of
section
There are two kinds of magnification of
Digital zoom only for the AEP model.
Please make sure the magnification of
your Handycam with reference to the
Cabinet (R) assembly of section.
