Sony CCD-TR315E - Removal of Cabinet (L) Block; Removal of Control Switch Block (FK-8500); Removal of Zoom Lens Block and VL-20;21 Board

2-4
Two claws
Two claws
Screwdriver(
- )
1 Remove the Function key switch in
the direction of arrow with pushing
the claw.
2 Flexible connector
CN935, 10P
!£ FP-58 flexible board
(VC side)CN909, 4P
(VL side)CN151, 4P
7 FP-623 flexible board
CN501, 16P
8 Lens flexible board
CN551, 23P
!™ VL-21/22 board
6 Zoom lens block
5 RP shield assembly
!¡ Screw (M2 x 3)
3 Screw (M2 x 3)
1 Screw (M2 x 3)
2 Screw (M2 x 3)
4 Screw (M2 x 3)
CN909
9 Two screws
(M2 x 3)
0 Shoe bracket
No video light models
Video light models

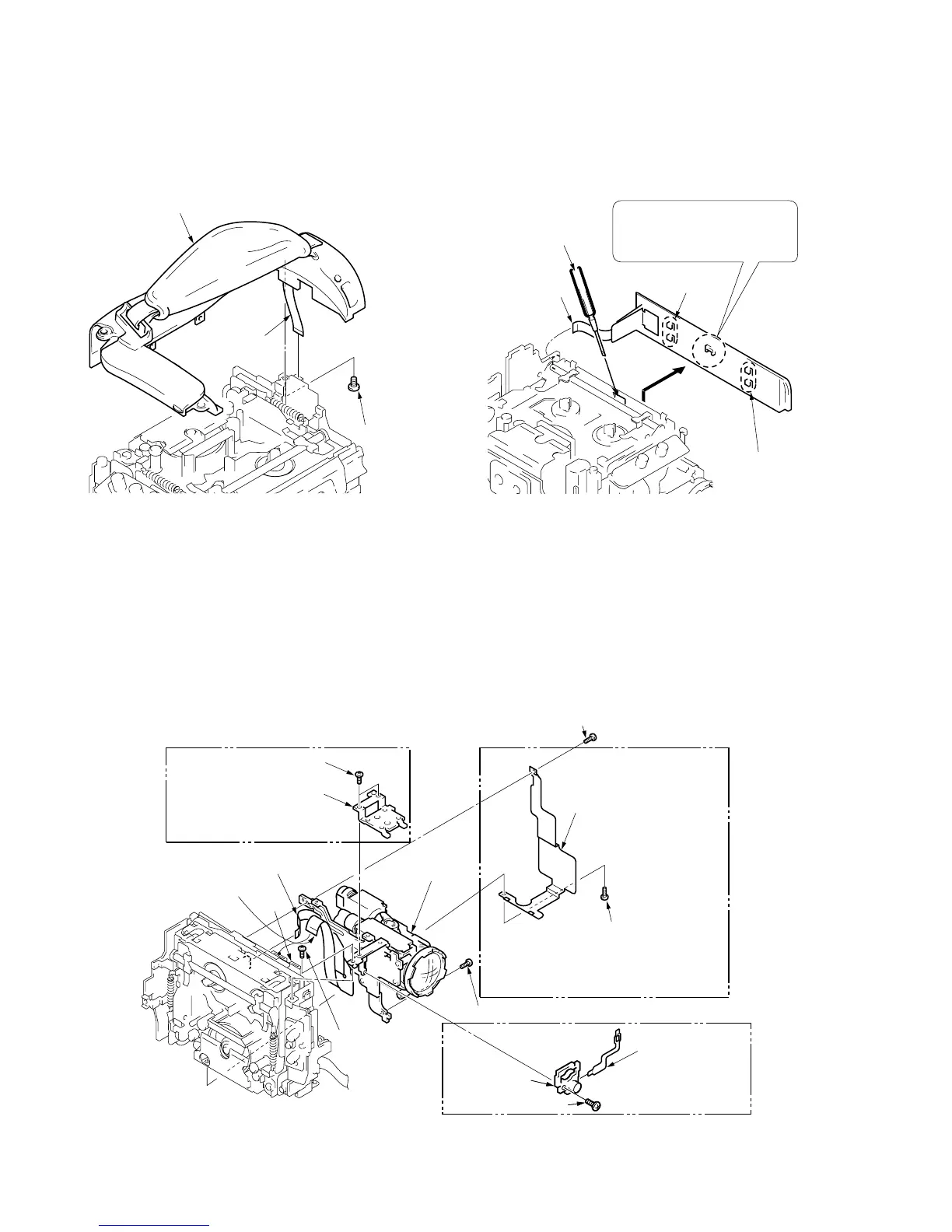

2-7. REMOVAL OF CABINET (L) BLOCK 2-8. REMOVAL OF CONTROL SWITCH BLOCK
Function Key Switch (FK-8500)
2-9. REMOVAL OF ZOOM LENS BLOCK AND VL-21/22 BOARD
1 Screw (M2 x 3)
3 Flexible connector
CN934,12P
2 Cabinet (L) block
CCD-TR415E/TR425E/TR515E/TR713E
CCD-TRV26E/TRV27E/TRV36E/
TRV46E:AEP,UK,EE,NE,RU
—Video light models—
CCD-TR515E/TR516E/TR713E
CCD-TRV36E/TRV46E
—No video light models—
CCD-TR315E/TR415E/TR425E
CCD-TRV16E/TRV26E/TRV27E/TRV27EP
