22
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

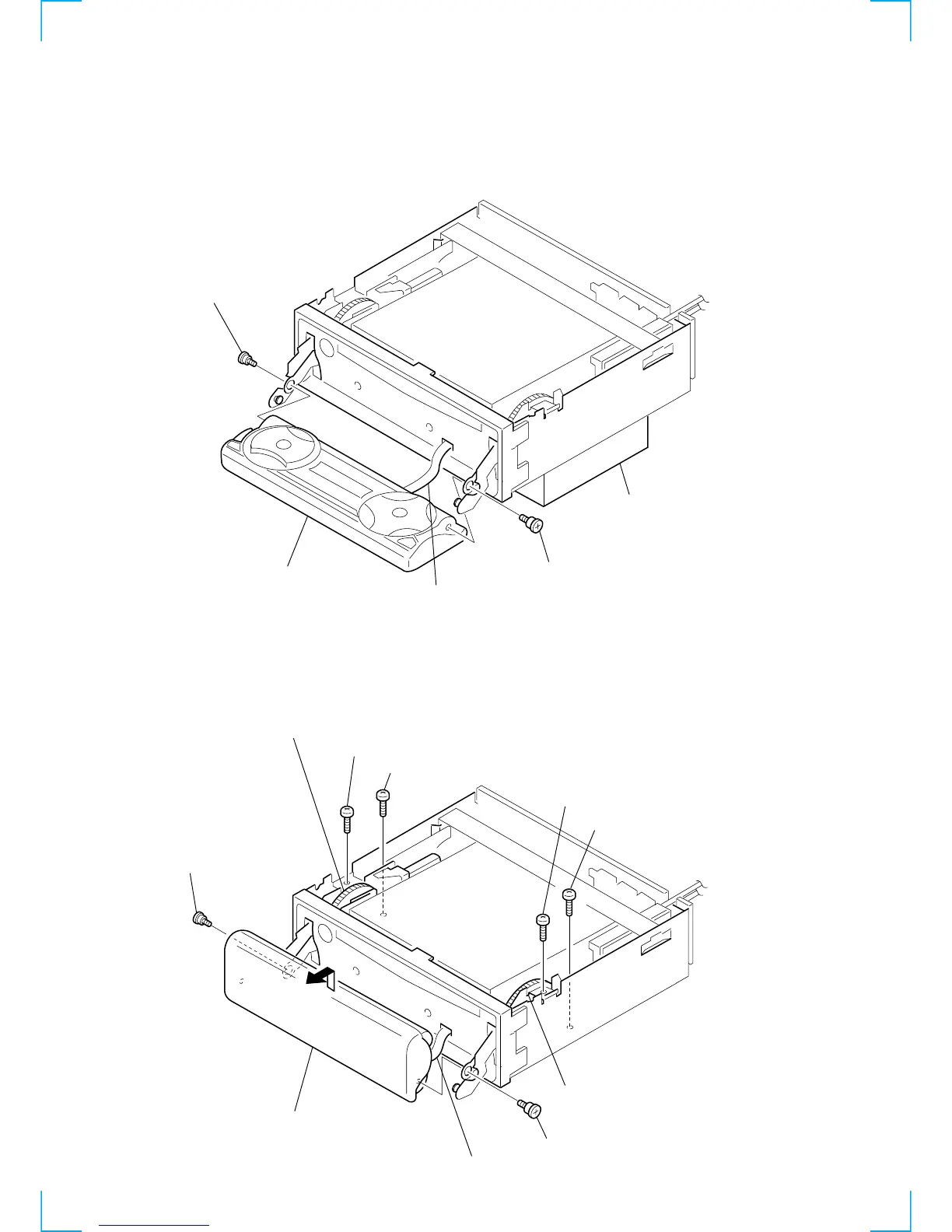

2-1. FRONT PANEL ASSY (NORMAL)
2-2. FRONT PANEL ASSY (INOPERATIVE)
1 Turn on the power and open the front panel.
2 screw (panel)
stand
3 screw (panel)
4 front panel assy
(Take care not to
pull the flexible
board excessively.)
flexible board
7 Lift the cam (R) assy
slightly to make a play.
4 PTT 2.6x6
3 PTT 2.6x6
1 screw (panel)
flexible board
9
0 front panel assy
(Take care not to pull the
flexible board excessively.)
2 screw (panel)
8 Lift the motor block assy
slightly to make a play.
5 PTT 2.6x6
6 PTT 2.6x6
To Next Page
