Sony CDX-M700R - CD Mechanism Section (1)

64

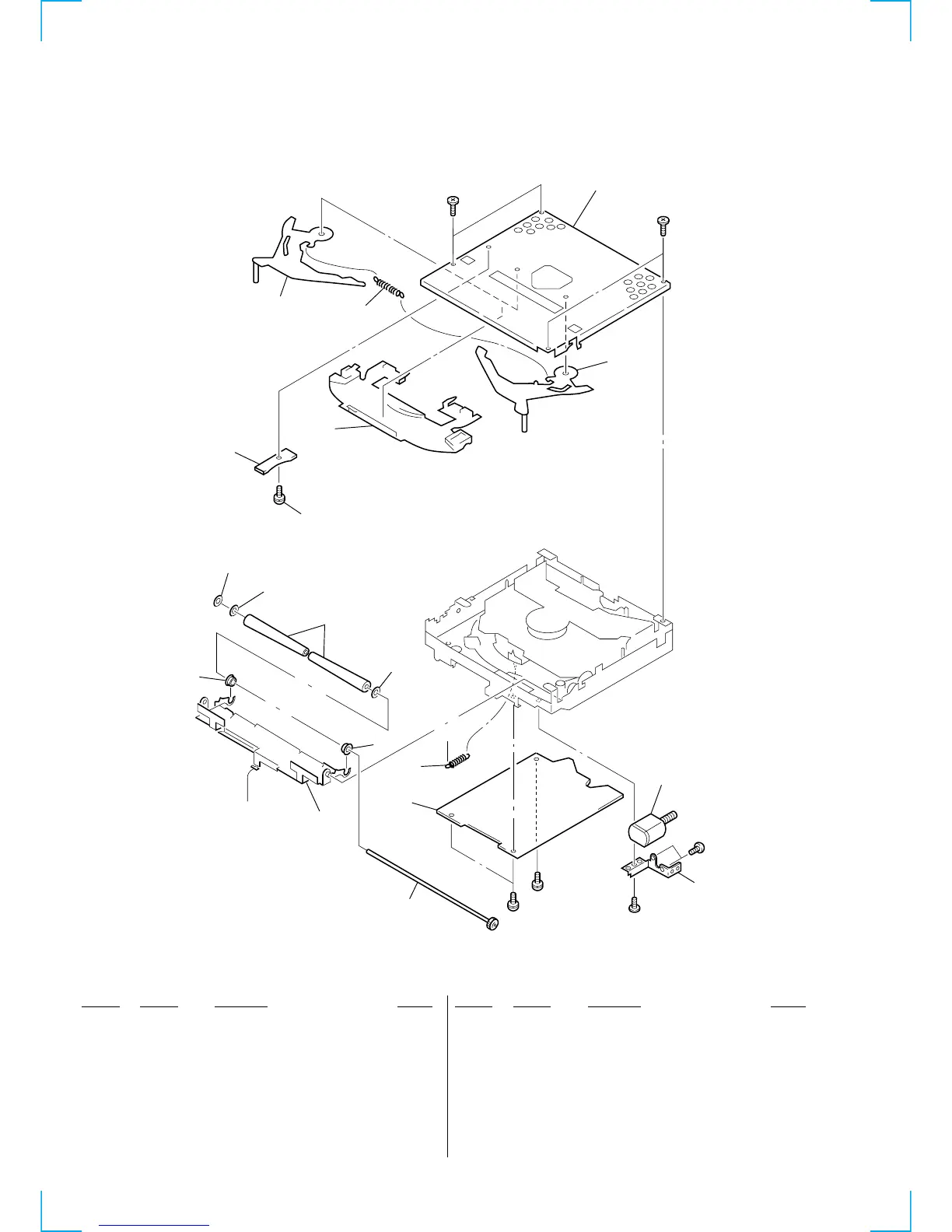

5-3. CD MECHANISM SECTION (1)
(MG-383V-121//K)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
102
104
103
109
101
107
105
105
108
114
114
115
116
106
113
111
110
112
#11
#11
#14
#14
#11
#12
M903
C
C
* 101 1-676-709-11 DISC IN SW BOARD
102 3-040-039-01 CHASSIS (T)
103 3-040-038-01 SPRING (LR), TENSION
104 3-040-050-01 LEVER (L)
105 3-040-022-01 RETAINER (RA), SHAFT
106 3-040-044-01 ROLLER (S)
107 3-040-067-01 LEVER (R)
108 A-3301-980-A SHAFT ROLLER ASSY
109 3-040-037-01 GUIDE (DISC)
110 3-040-040-01 ARM (ROLLER)
* 111 A-3294-808-A SERVO BOARD, COMPLETE
* 112 3-040-048-01 BRACKET (MOTOR)
113 3-040-034-01 SPRING (RA), TENSION
114 3-040-042-01 WASHER
115 3-043-880-01 RING (RA), RETAINING
116 3-044-206-11 SCREW, SPECIAL
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
