tuner unit
(TU601)
DISC IN SW board
SWITCH board
DISPLAY board
SERVO board
LIMIT SW board
MAIN board
SUB board

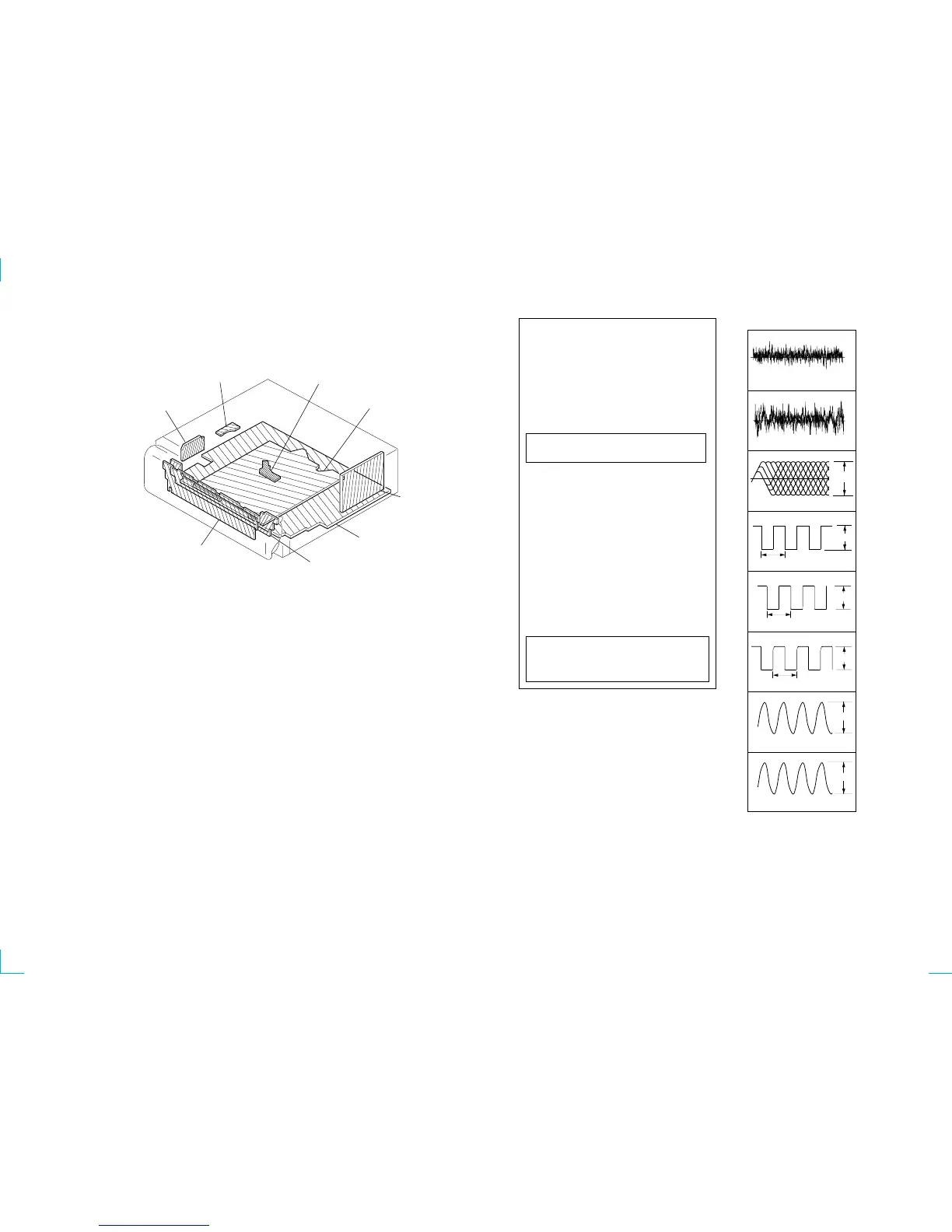

4-5. CIRCUIT BOARDS LOCATION
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• % : indicates tolerance.
•
f
: internal component.
• C : panel designation.
• U : B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from ACC and BATT cords.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : FM
f : AM/MW
J : CD
for printed wiring boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
a
: Through hole.
• b : Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
• Waveforms (MODE:PLAY)
1
2
3
Approx. 620mVp-p
IC1
qf
(FE)
0V
IC1
qh
(RFO)
1.2Vp-p
Approx. 200mVp-p
IC1
qd
(TE)
0V
4
5
6
7
8
IC501
uj
(LRCK)
IC501
ul
(PCMO)
IC501
ia
(BCK)
16.89MHz
IC501
ih
(XTAI)
10MHz
IC5
ea
(X IN)
5Vp-p
5Vp-p
5.7Vp-p
3.8Vp-p
2Vp-p
22.7µsec
474nsec
474nsec
