Sony CDX-M700R - Printed Wiring Board -Display Section

5858

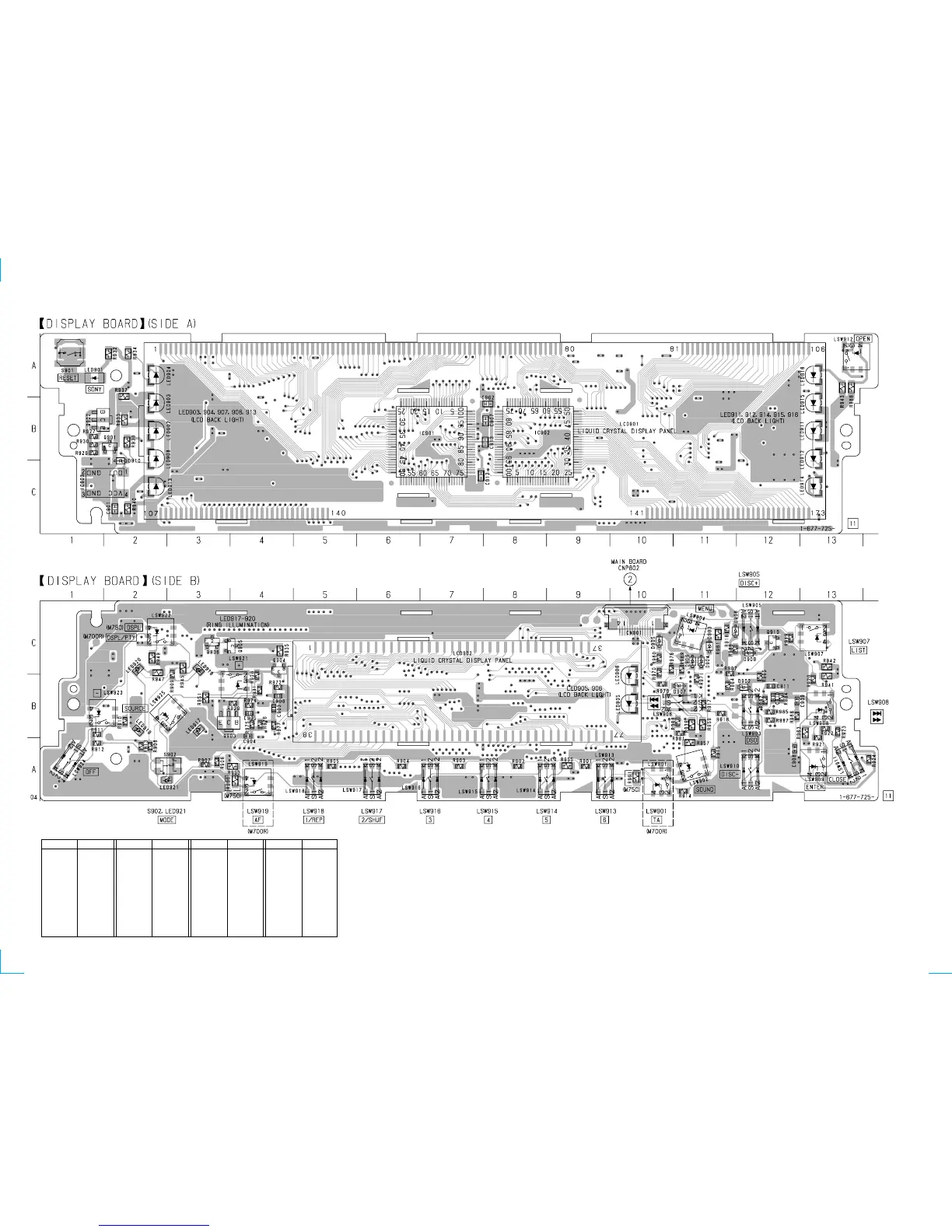

4-16. PRINTED WIRING BOARD — DISPLAY SECTION —
(Page 50)
Note on Schematic Diagram:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
CDX-M700R/M750
Ref. No. Location
(D902) B-12
(D903) C-11
(D904) C-11
(D905) C-10
(D906) C-11
(D907) B-11
(D908) C-11
(D909) C-12
D910 B-2
IC901 B-7
• Semiconductor Location
Ref. No. Location
IC902 B-8
IC903 C-1
LED901 A-1
LED903 B-2
LED904 A-2
(LED905) B-10
(LED906) B-10
LED907 B-2
LED908 B-2
LED911 B-13
( ) : SIDE B
Ref. No. Location
LED912 B-13
LED913 C-2
LED914 C-13
LED915 B-13
LED916 A-13
(LED917) B-3
(LED918) C-3
(LED919) B-2
(LED920) C-2
(LED921) A-3
Ref. No. Location
Q901 B-2
Q902 B-2
(Q903) B-4
(Q904) C-4
(Q905) C-4
(Q906) C-3
(Q910) C-12
