Sony CDX-M700R - Printed Wiring Boards -Main Section

5050
(Page 58)

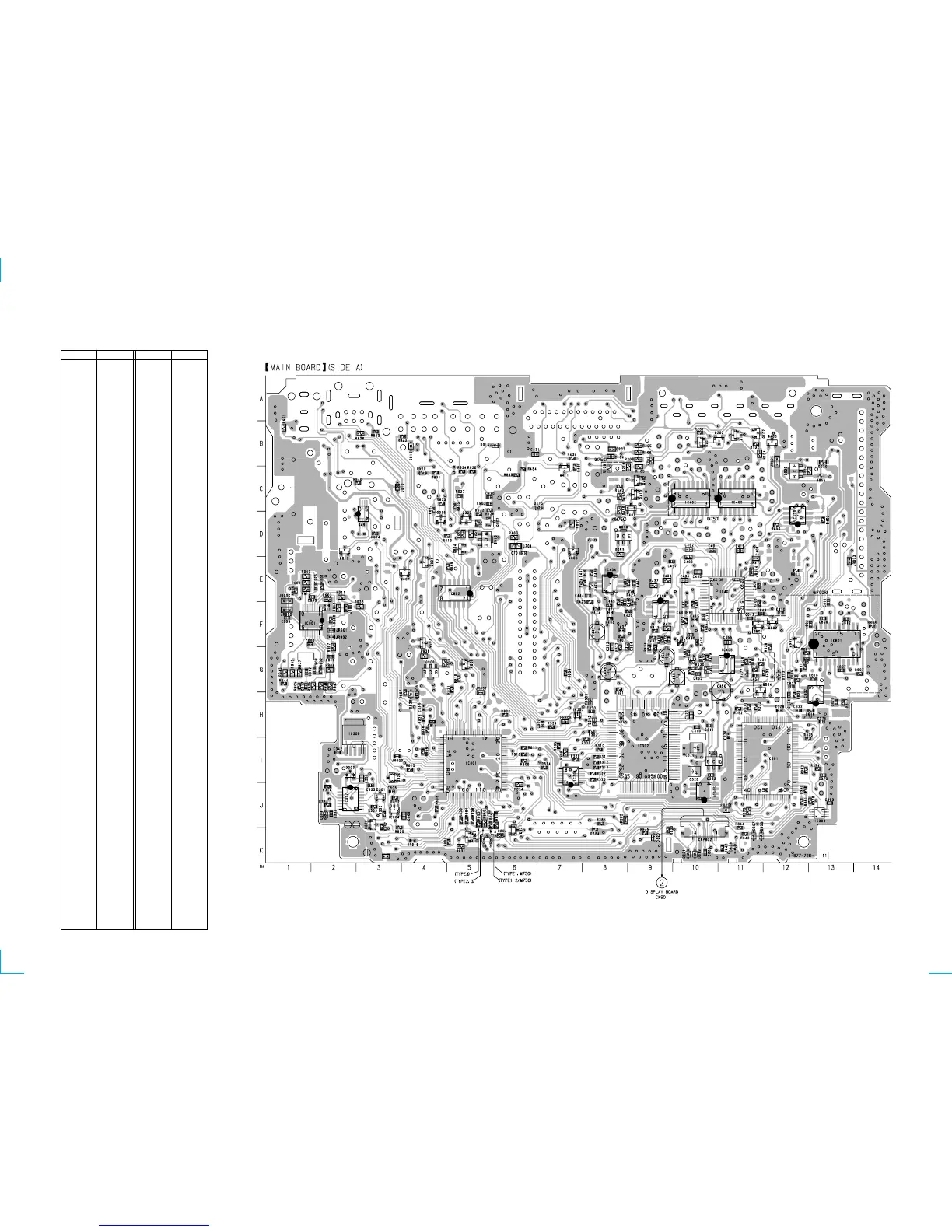

4-9. PRINTED WIRING BOARDS — MAIN SECTION —
IC304 I-7
IC305 J-10
IC306 H-2
IC307 J-2
(IC308) J-2
IC352 H-7
(IC353) I-11
IC401 E-11
IC402 C-10
IC403 C-11
IC404 E-8
IC405 G-11
IC406 F-9
IC409 D-12
IC601 F-13
IC602 H-13
IC801 I-5
IC802 E-5
IC901 F-1
(IC902) I-5
(IC903) A-7
IC904 J-3
(IC905) E-1
Q101 B-11
Q102 B-11
Q201 B-10
Q202 B-11
Q301 I-10
Q302 J-3
(Q303) I-2
(Q304) H-3
(Q401) C-9
Q402 C-9
Q403 B-12
Q410 C-9
Q411 C-7
Q461 D-3
Q601 F-11
Q602 F-12
(Q603) F-13
Q604 G-11
(Q605) F-12
(Q606) G-11
Q607 F-12
Q801 E-4
Q803 D-7
Q804 D-5
(Q805) G-4
(Q806) I-10
Q807 E-4
(Q901) D-2
Q902 D-6
(Q903) E-3
(Q904) E-3
(Q905) D-8
Q906 E-2
Q907 F-4
Q908 G-4
Q909 G-5
(Q911) G-1
(Q912) E-4
(Q913) F-2
(Q914) F-1
(Q915) F-2
Q916 D-5
Q917 D-2
Q918 D-4
Q919 D-8
(Q920) E-5
Q921 K-5
Q923 D-5
(Q924) C-13
Q925 C-12
Ref. No. Location
D301 J-3
(D302) J-11
D303 I-2
D304 J-2
D401 C-9
(D402) C-9
(D403) B-9
(D405) C-7
(D406) C-7
(D407) C-8
(D408) C-7
(D409) B-8
(D410) B-8
(D411) C-5
(D412) C-5
D415 C-7
(D416) C-7
(D502) J-5
(D601) F-14
(D602) G-12
D603 G-12
(D604) F-14
(D801) G-4
(D802) J-10
(D803) F-11
D804 K-6
(D805) K-12
D806 K-11
D807 K-11
(D808) K-11
D809 K-11
(D810) K-10
(D811) D-5
(D812) E-5
(D813) B-2
(D814) B-3
(D815) B-3
D816 C-3
(D817) B-1
(D818) B-1
D819 K-10
D820 K-9
D821 K-10
(D822) K-8
(D823) K-7
(D824) K-8
D825 H-4
D826 H-4
(D901) B-3
(D902) F-2
(D903) B-4
(D904) G-2
(D905) E-4
(D906) D-3
(D907) C-4
(D908) C-5
(D909) B-5
D910 B-4
(D912) B-3
D913 D-4
(D914) D-4
D915 B-6
(D916) G-3
(D917) D-5
D918 C-4
(D919) D-3
D921 J-6
(D922) D-7
(D923) D-6
D924 I-3
IC301 I-12
IC302 I-9
IC303 J-13
• Semiconductor Location
Ref. No. Location
( ) : SIDE B
CDX-M700R/M750
