Sony CDX-M700R - Front Panel Section

63

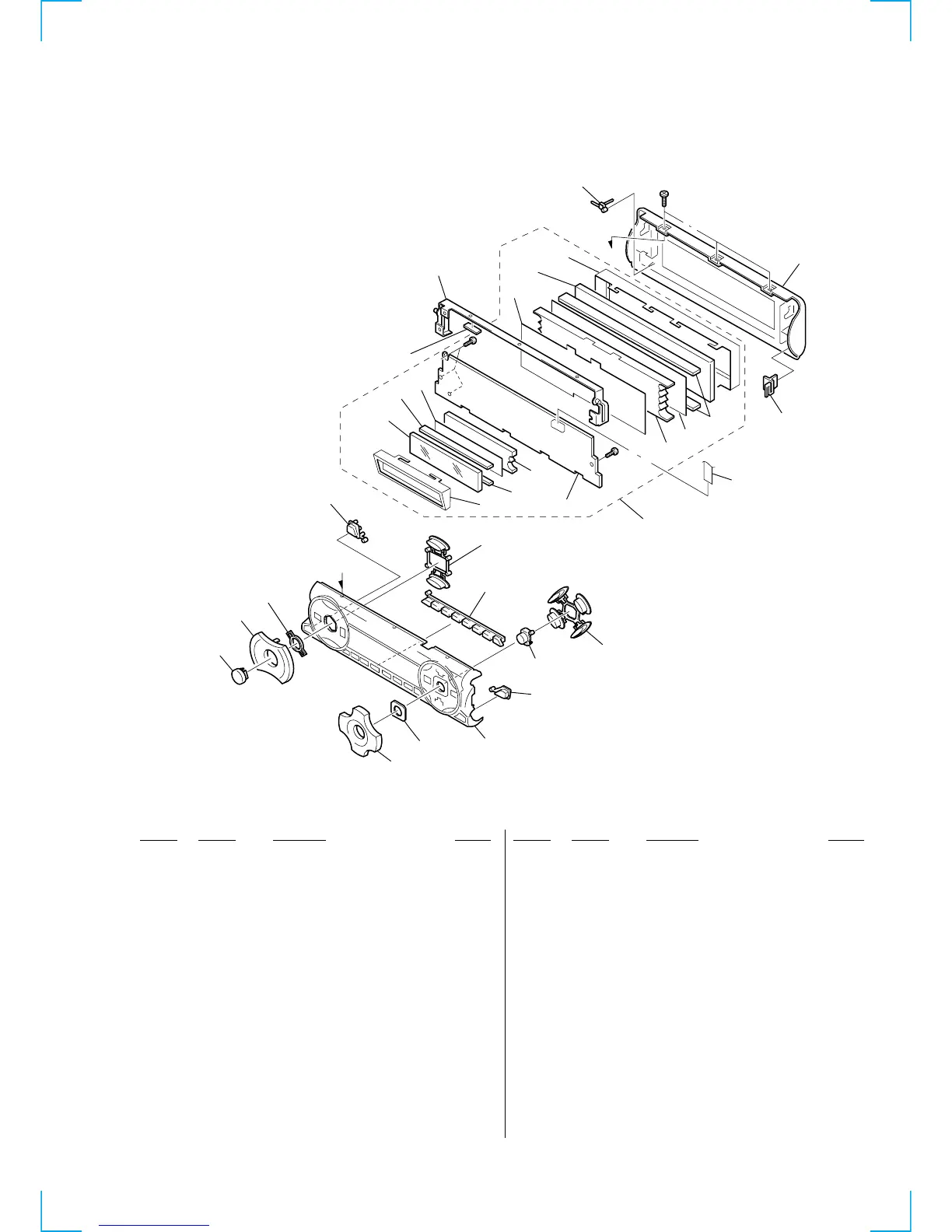

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
70
71
72
73
75
74
77
76
78
69
79
C
C
LCD901
#8
#9
#8
not supplied
LCD902
51 3-045-726-01 BUTTON (SOURCE)
52 3-045-725-01 BUTTON (+/–)
53 3-045-727-01 PLATE (RING), LIGHT GUIDE
54 3-045-730-01 BUTTON (SEEK) (DSO)
55 3-045-734-01 CUSHION (SEEK)
56 3-044-469-21 PANEL (SUB), FRONT (M750)
56 3-044-469-31 PANEL (SUB), FRONT (M700R)
57 3-045-733-01 BUTTON (CLOSE)
58 3-045-732-11 BUTTON (DSO)
59 3-045-731-01 BUTTON (ENTER)
60 3-045-724-01 BUTTON (6 KEY) (M750)
60 3-045-724-11 BUTTON (6 KEY) (M700R)
61 3-045-728-01 BUTTON (MODE)
62 3-045-729-01 BUTTON (OFF)
* 63 A-3294-884-A DISPLAY BOARD, COMPLETE (M750)
* 63 A-3294-895-A DISPLAY BOARD, COMPLETE (M700R)
* 64 3-045-706-01 BRACKET (LCD) (SUB)
65 1-694-687-11 CONDUCTIVE BOARD, CONNECTION
66 1-694-686-11 CONDUCTIVE BOARD, CONNECTION
* 67 3-045-708-01 SHEET (SUB), DIFFUSION
* 68 3-045-707-01 PLATE (LCD) SUB, LIGHT GUIDE
69 1-677-340-11 FLEXIBLE BOARD
* 70 3-045-705-01 SHEET (MAIN), REFLECTION
* 71 3-045-703-01 PLATE (LCD) (MAIN),LIGHT GUIDE
* 72 3-045-704-01 SHEET (MAIN), DIFFUSION
73 1-694-685-11 CONDUCTIVE BOARD, CONNECTION
* 74 3-045-702-01 BRACKET (LCD) (MAIN)
75 3-045-735-01 BUTTON (OPEN)
76 X-3378-768-1 PANEL (MAIN) ASSY, FRONT
77 3-045-781-01 BUTTON (RESET) (MAIN)
* 78 X-3378-710-1 BRACKET (PANEL) ASSY
* 79 3-049-532-01 CUSHION (PANEL)
LCD901 1-803-913-11 DISPLAY PANEL, LIQUID CRYSTAL
LCD902 1-803-914-11 DISPLAY PANEL, LIQUID CRYSTAL
