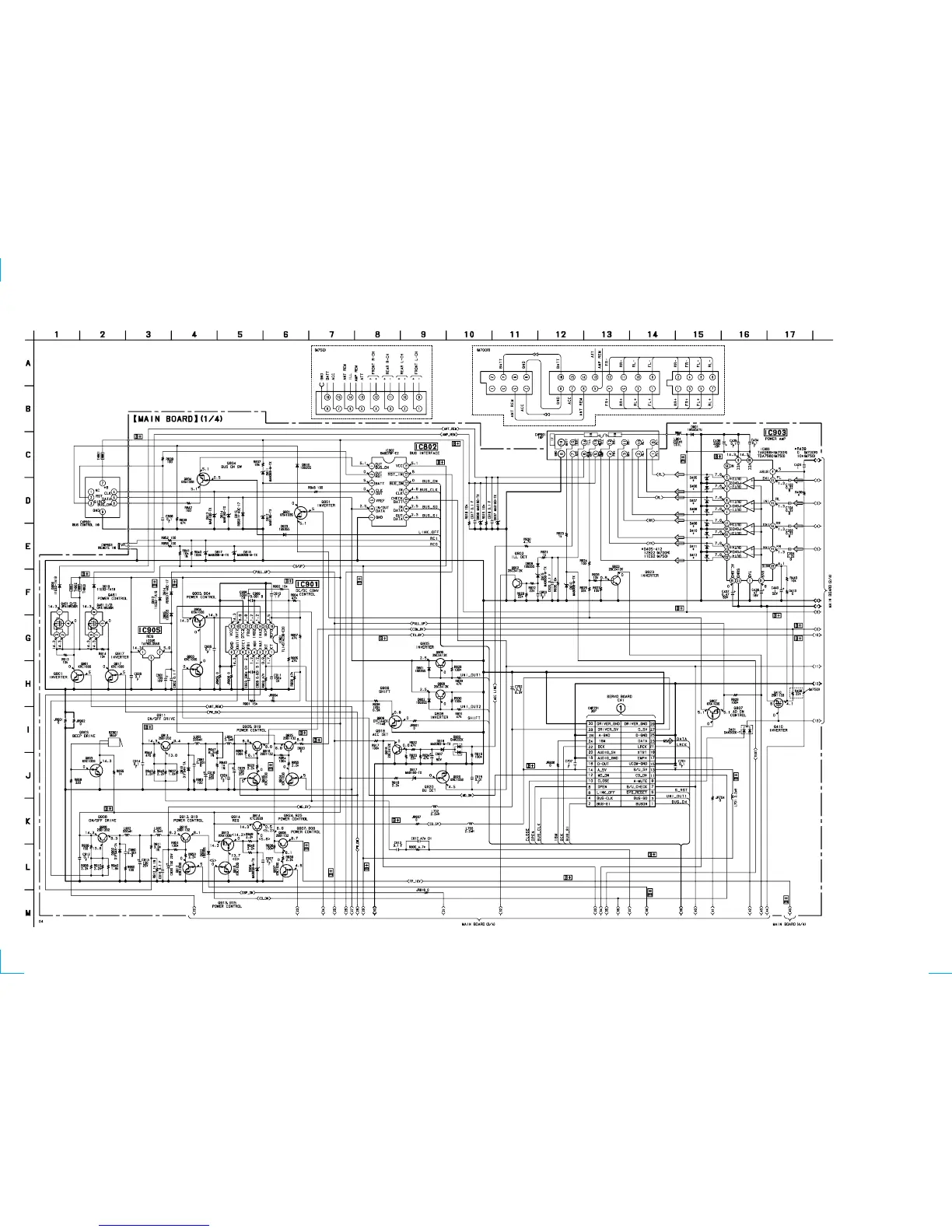

4-10. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 60 for IC Block Diagrams.
Note:
• Voltage is dc with respect to ground under
no-signal (detuned) condition.
no mark : FM
< > : CD PLAY
(Page 54)
(Page 53)
(Page 55)
CDX-M700R/M750
(Page 48)
