Sony CDX-M700R - CD Mechanism Block, Flexible Board; Sub Panel (CD) Sub Assy

23

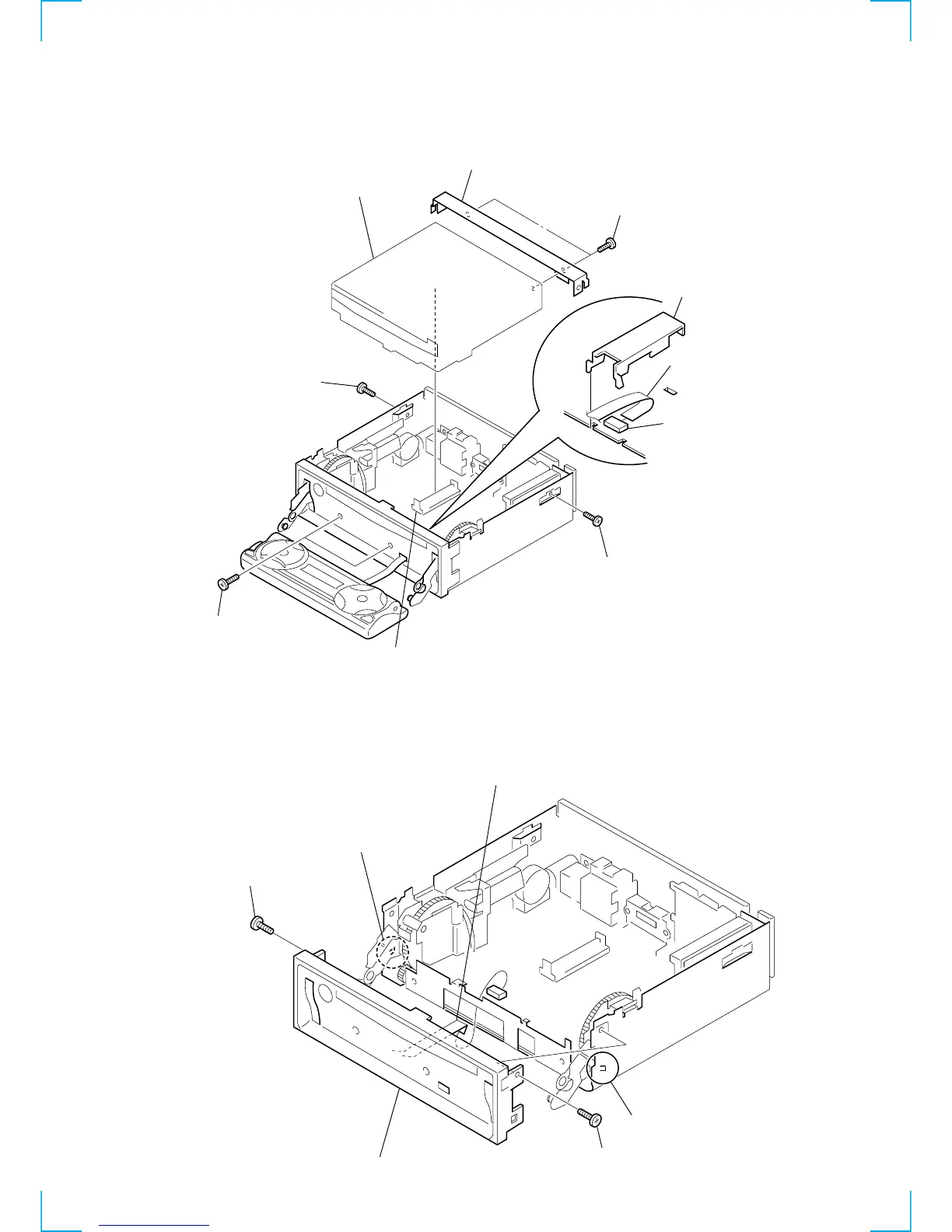

2-3. CD MECHANISM BLOCK, FLEXIBLE BOARD
2-4. SUB PANEL (CD) SUB ASSY
2 PTT 2.6x4
4 CNP701
1 PTT 2.6x6
3 PTT 2.6x4
5 CD mechanism block
7 bracket (CD)
6 PTT 2.6x6
8 cover (flexible)
0 flexible board
9 CNP802
Note: When installing
the flexible board,
make the board slack
as illustrated.
3 PTT 2.6x6
6 sub panel (CD) sub assy
2 PTT 2.6 x6
5 claw
1 CNP805
4 claw
