47 47
(Page 51)

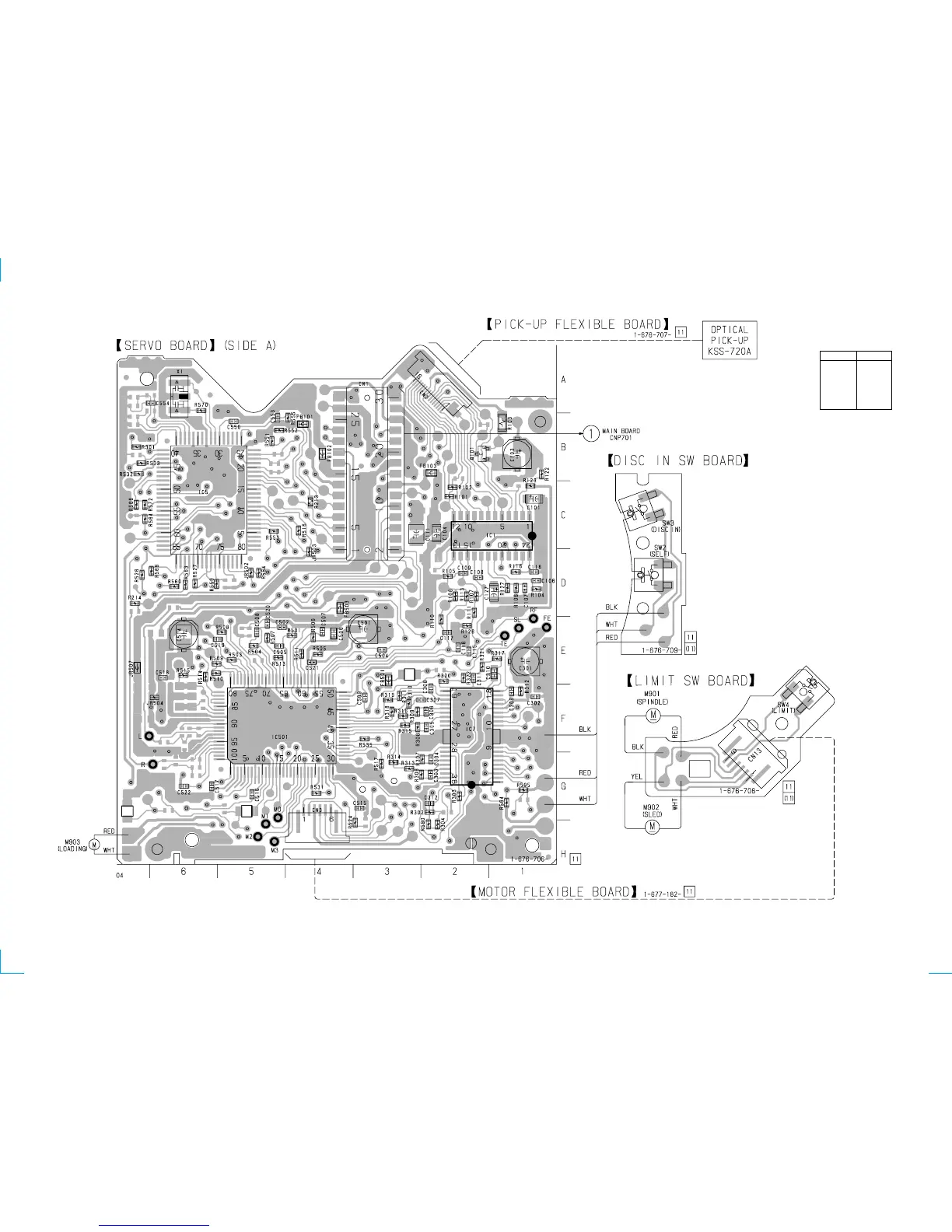

Ref. No. Location
IC1 C-1
IC5 C-6
IC7 F-2
IC501 F-5
Q101 B-2
• Semiconductor
Location
CDX-M700R/M750
