— 30 —
DV MECHANICAL ADJUSTMENT MANUAL VII

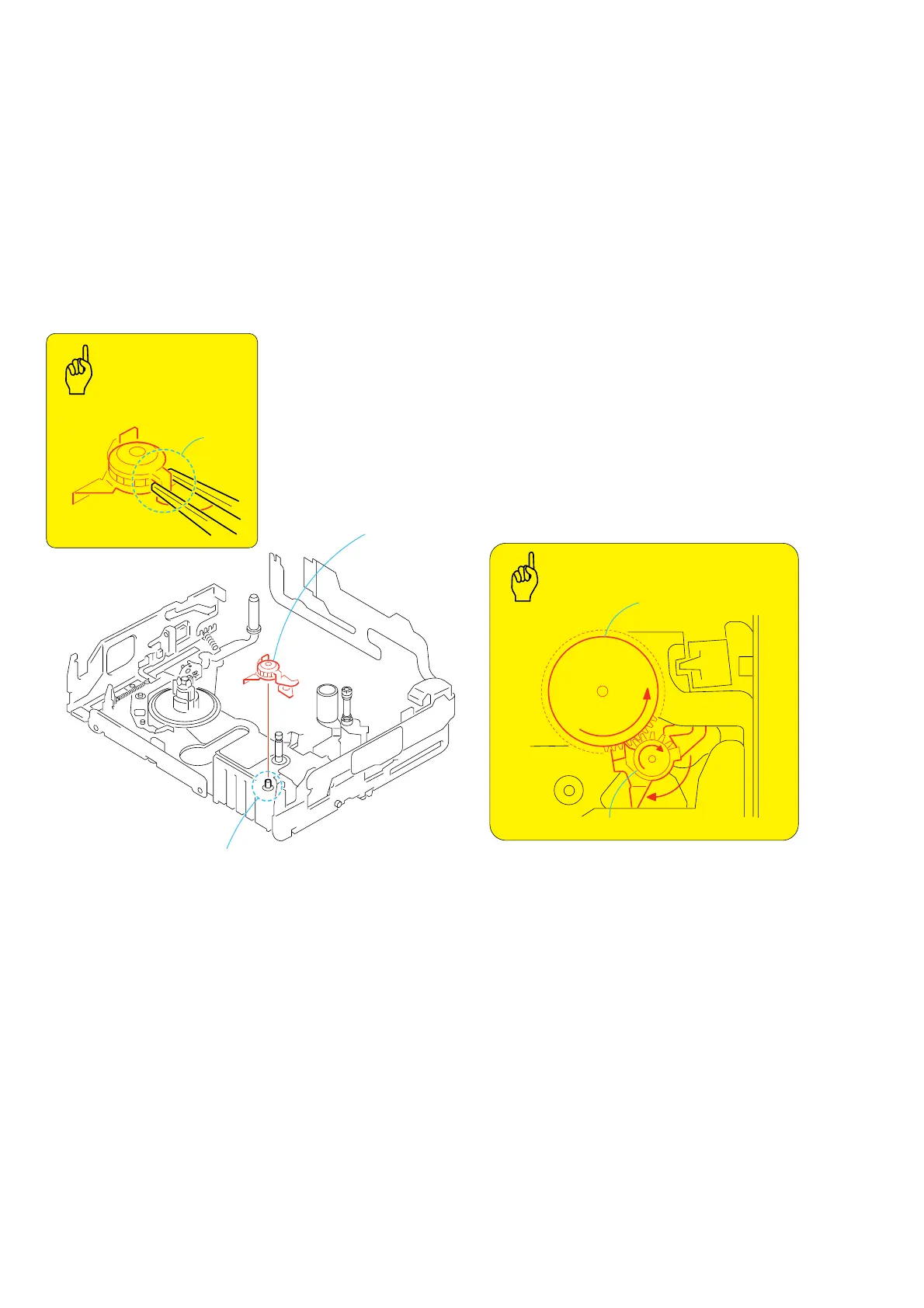

3-19.Brake (T) Block Assy
1. Removal procedure
1) Hold the A portion and remove the brake (T) block assy 1.
2. Attachment procedure
1) Hold the A portion of the brake (T) block assy 1. While
inserting the slot portion into the notch of the LS chassis block
assy, install it into the shaft B.
2) After completing installation of T reel table assy (Refer to 3-
9.), rotate the brake (T) block assy 1 in the clockwise direction
by rotating T reel talbe assy in the counter-clockwise direction.
(Fig. 1)
1 Brake (T) block assy
Shaft
B
T reel table assy
Brake (T) block assy
A
BRAKE (T) BLOCK ASSY
BRAKE (T) BLOCK ASSY
Points
to be noted
(Fig. 1)
Hold the A portion
Key Points
in Re-assembling

Sony DCR-HC39E Specifications

General

Fader	Black, White, Mosaic, Overlap, Wipe, Monotone, Random Dot
Focus	Auto / Manual
I/O ports	USB Audio Out Video Out
Sensor type	CCD
Total megapixels	1.07 MP
Optical sensor size	1/5 \
Display diagonal	2.7 \
Bundled software	Picture Package
Camera shutter speed	1/2-1/3500 s
Built-in microphone	Yes
Playback zoom (max)	Yes x
Battery type	NP-FP50
Video formats supported	MPEG1
DV port	-
S-Video in	No
Camcorder tape type	Mini-DV

Weight and Dimensions

Depth	112 mm
Width	55 mm
Height	90 mm
Weight	410 g
