6-5
DCR-HC39E/HC41/HC42/HC42E/HC43/HC43E

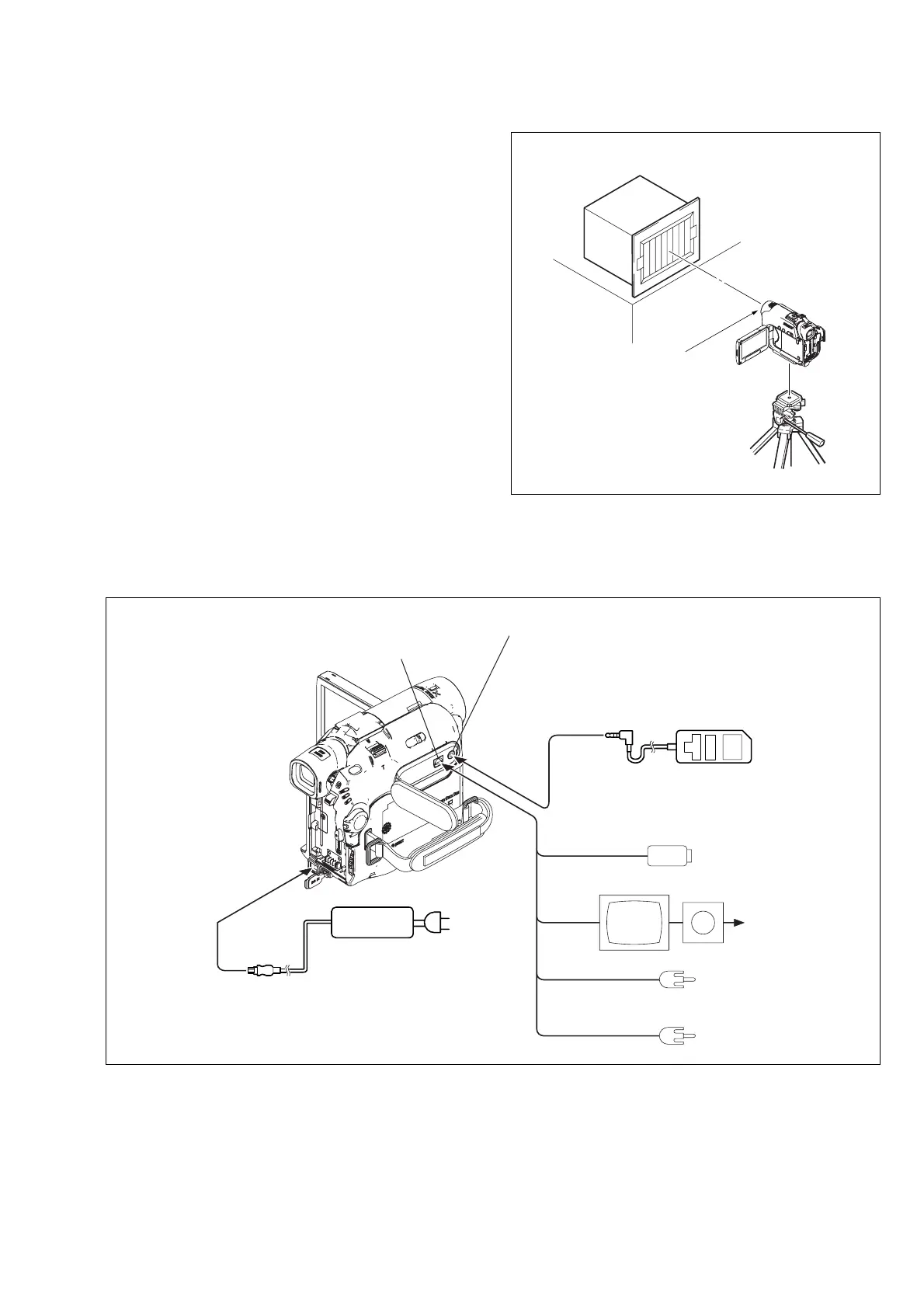

L
L=1m (PTB-450)
L=40cm (PTB-1450)
Pattern box
Front of the lens
A/V jack (Except DCR-HC39E)
A/V OUT jack (DCR-HC39E)
LANC jack
Adjustment remote commander
(RM-95)
AC adaptor
AC IN
To DC IN jack
Audio L
(White)
Audio R
(Red)
Video
(yellow)
S Video
(Black)
Color monitor
Vectorscope
Ter minated
75 Ω
Fig. 6-1-2
1-1-2. Preparations
Note: Before perform the adjustment, check that the data of page:
0, address: 10 is “00”.
If not, select page: 0, address: 10, and set data “00”.
1) Connect the equipment for adjustments according to Fig. 6-1-3.
Fig. 6-1-3

Sony DCR-HC39E Specifications

General

Fader	Black, White, Mosaic, Overlap, Wipe, Monotone, Random Dot
Focus	Auto / Manual
I/O ports	USB Audio Out Video Out
Sensor type	CCD
Total megapixels	1.07 MP
Optical sensor size	1/5 \
Display diagonal	2.7 \
Bundled software	Picture Package
Camera shutter speed	1/2-1/3500 s
Built-in microphone	Yes
Playback zoom (max)	Yes x
Battery type	NP-FP50
Video formats supported	MPEG1
DV port	-
S-Video in	No
Camcorder tape type	Mini-DV

Weight and Dimensions

Depth	112 mm
Width	55 mm
Height	90 mm
Weight	410 g
