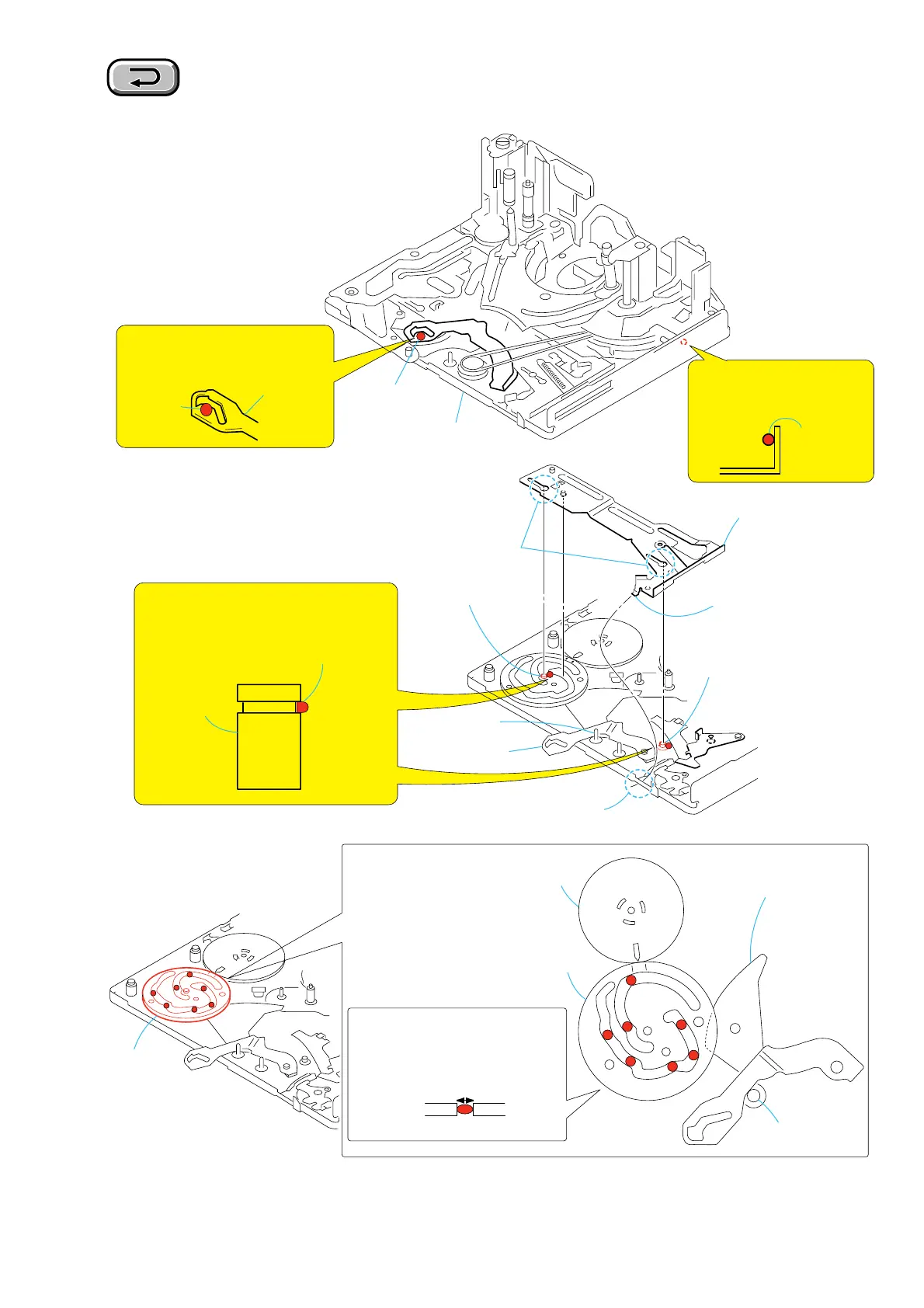

DV MECHANICAL ADJUSTMENT MANUAL VII
HELP
Apply grease when installing it.
Amount of grease:
a ball of grease of 1.0 mm
diameter
Apply grease
(Inner side)
B
C
D
E
F
G
A
3mm
Mechanical chassis
block assy
GL driving arm
GL driving arm
Cam gear shaft
Cam gear
Conversion
gear
GL driving arm
M slider shaft
M slider assy
Cam gear shaft,
M slider shaft
Rotary encoder
Cam gear
GL driving arm
Conversion gear
shaft
Apply grease when installing it.
Amount of grease:
a ball of grease of 1.0 mm diameter
Apply
grease
Apply grease when installing it.
Amount of grease: a ball of 1.0 mm
diameter of grease
Neck groove of the shaft where the
M slider slides
Shaft hole
Notch
Top tip
Apply grease when installing it.
Amount of grease:
A a ball of 3.0 mm diameter of grease
B to G a ball of 2.0 mm diameter
of grease
Sides of the both grooves
Apply grease (3)

Sony DCR-HC39E Specifications

General

Fader	Black, White, Mosaic, Overlap, Wipe, Monotone, Random Dot
Focus	Auto / Manual
I/O ports	USB Audio Out Video Out
Sensor type	CCD
Total megapixels	1.07 MP
Optical sensor size	1/5 \
Display diagonal	2.7 \
Bundled software	Picture Package
Camera shutter speed	1/2-1/3500 s
Built-in microphone	Yes
Playback zoom (max)	Yes x
Battery type	NP-FP50
Video formats supported	MPEG1
DV port	-
S-Video in	No
Camcorder tape type	Mini-DV

Weight and Dimensions

Depth	112 mm
Width	55 mm
Height	90 mm
Weight	410 g
