Sony DCR-HC39E - Bat EVF Block

5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-HC39E/HC41/HC42/HC42E/HC43/HC43E

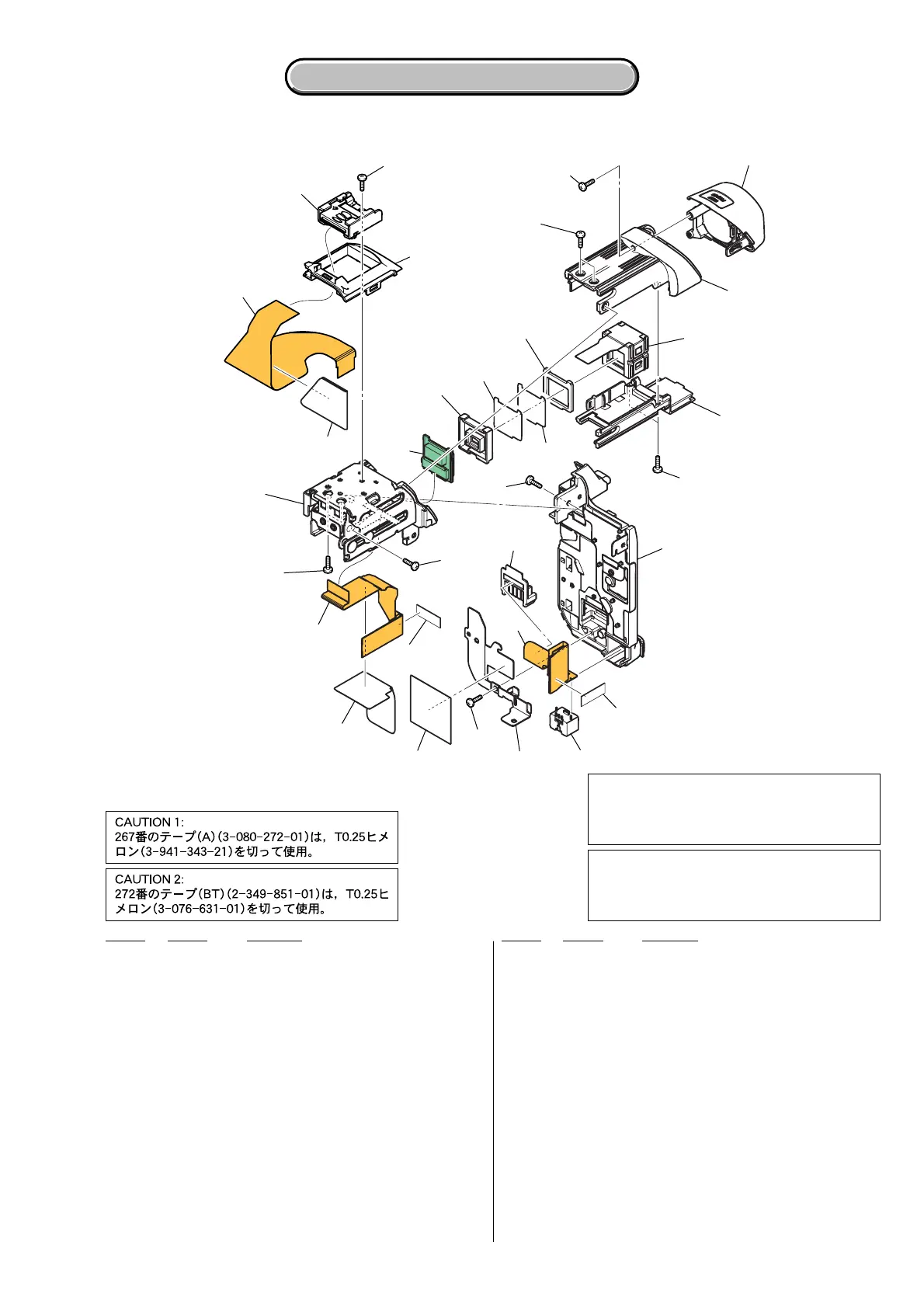

5-1-6. BAT EVF BLOCK
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-188-512-01 SHEET, VF FLEXIBLE FIXED
252 1-864-757-11 FP-181 FLEXIBLE BOARD
253 3-078-889-21 SCREW (M1.7)
254 X-2023-650-1 VF SLIDE ASSY
255 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
256 2-188-483-01 BASE (106), SHOE
257 3-080-198-11 SCREW (M1.7), LOCK ACE, P2
258 A-1081-845-A LB-109 BOARD, COMPLETE (HC39E)
258 A-1081-846-A LB-109 BOARD, COMPLETE (EXCEPT HC39E)
259 3-089-415-01 GUIDE, LAMP
260 3-089-417-01 ILLUMINATOR
261 3-089-416-01 SHEET, PRISM
262 3-089-419-01 CUSHION, LCD
263 3-080-204-21 SCREW, TAPPING, P2
264 X-2023-648-1 EYE CUP ASSY
265 X-2023-647-1 CABINET UPPER ASSY VF
266 2-188-511-01 CABINET LOWER, VF
267 CAUTION 1 TAPE (A)
268 X-2048-505-1 PANEL ASSY, BT (EXCEPT HC43)
268 X-2048-506-1 PANEL ASSY, BT (HC43)
270 2-188-500-01 PLATE, BT TERMINAL RETAINER
271 3-080-204-01 SCREW, TAPPING, P2
272 CAUTION 2 TAPE (BT)
273 1-864-760-11 FP-184 BOARD
274 2-349-849-01 SHEET (SHOE), RADIATION
275 1-864-756-11 FP-180 FLEXIBLE BOARD
BH001 1-780-064-21 BATTERY TERMINAL BOARD
J001 1-815-792-11 CONNECTOR, DC-IN (7.2V) (DC IN)
LCD902 8-753-208-78 LCX059AKA-J
(HC41/HC42/HC42E/HC43/HC43E: E)
LCD902 8-753-208-84 LCX059ALA-1 (HC39E)
LCD902 8-753-234-59 LCX059ZKA-1 (HC43E: CH)
CAUTION 2 :
For the part of 272 : TAPE (BT) (2-349-851-01), cut
WOVEN (T0.25), FABRIC NON (3-076-631-01) into
the desired length and use it.
CAUTION 1 :
For the part of 267 : TAPE (A) (3-080-272-01), cut
WOVEN (T0.25), FABRIC NON (3-941-343-21) into
the desired length and use it.
J001
BH001
LCD902
251
252
253
275
253
254
256
273
274
255
257
257
258
259
260
261
262
263
263
253
264
265
266
268
270
271
272
(19mm X 19mm)
267
(9mm X 28mm)
267
(9mm X 28mm)
