Quick Reference
Quick Reference

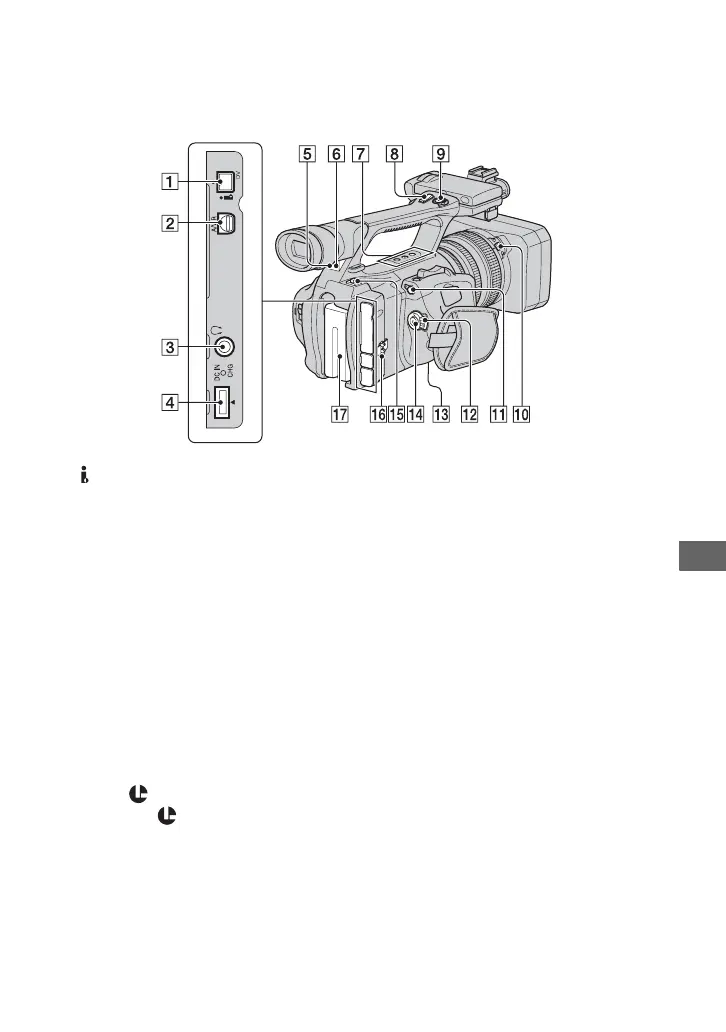

Identifying parts and controls
The numbers in ( ) are reference pages.
A DV jack (71, 75)
B A/V Remote Connector (49)
C i (headphones) jack
When you use headphones, the speaker
on your camcorder is silent.
D DC IN jack (12)
E Remote sensor (back) (105)
F Recording lamp (back) (21)
The recording lamp flashes if the
remaining tape or battery is low.
G ASSIGN (4/5/6) buttons* (37)
H Handle zoom lever (24)
I REC START/STOP button (21)
J PUSH (lens hood release) button (11)
K LANC jack
The LANC control jack is used for
controlling the tape transport of video
device and peripherals connected to it.
L POWER switch (15)
M Tripod receptacle
Make sure that the length of the tripod
screw is less than 5.5 mm (7/32 inch).
Otherwise, you cannot attach the tripod
securely, and it may damage your
camcorder.
N REC START/STOP button (21)
O BATT RELEASE (battery release)
button (
13)
P Cable holder (49)
For securing the A/V connecting cable
or other cables
Q Battery pack (12)
* ASSIGN 5 button has a raised tactile dot for
your convenience in locating the button.
Continued ,
