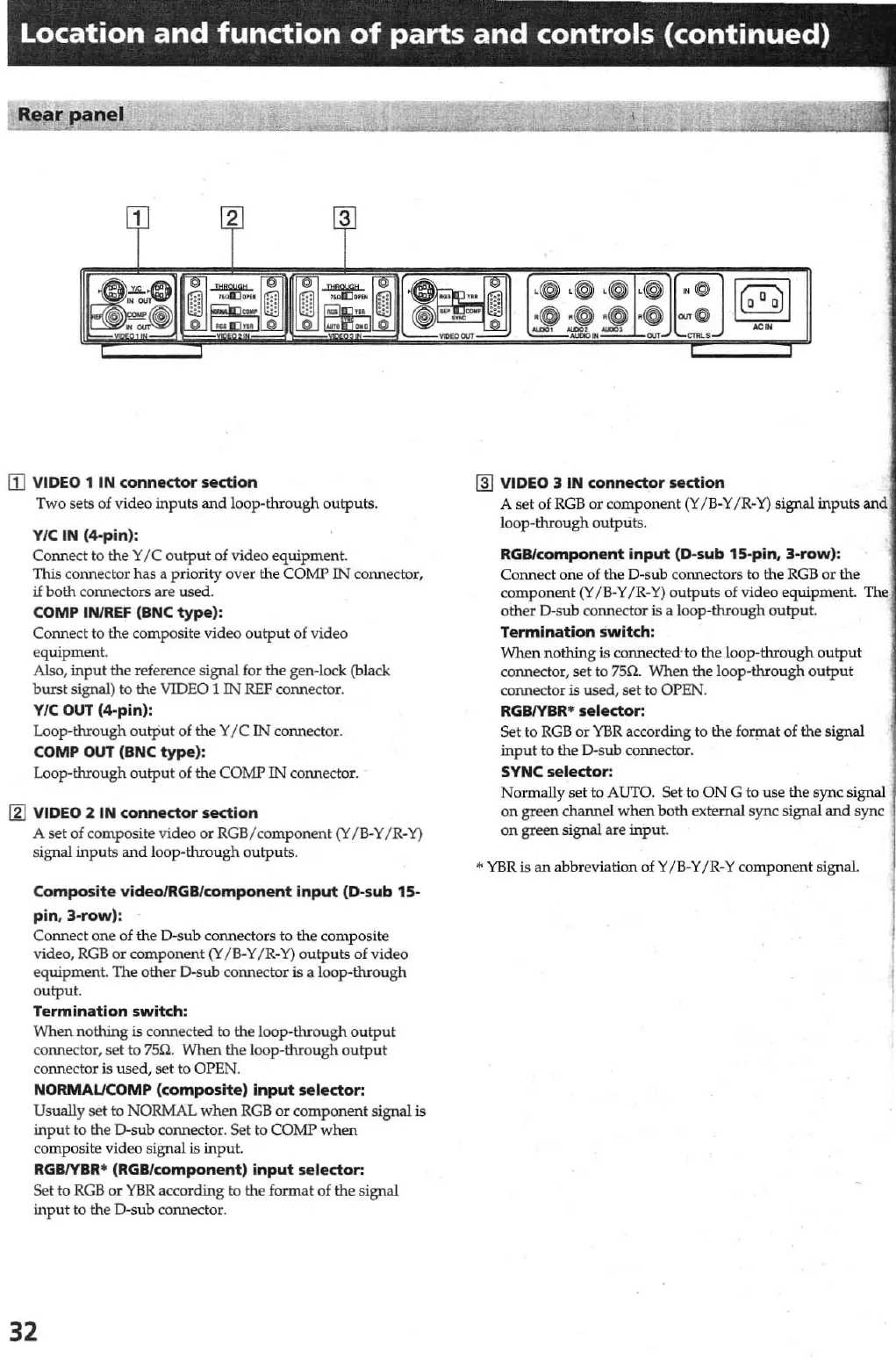

rn VIDEO 1 IN connector section
Two sets of vi deo inp uts an d l oo p ~ thr o ugh o utput s.
VIC IN (4-pin) :
Connect to the Y IC outp ut of video equipment.
This connector has a priority over th e COlvW IN' co nnecto r,
if both connectors are used.
COMP INIREF (BNC type) :
Connect to the composite video outp ut of video
equipment.
Also, input the reference signal for the gen -lock (black
burst signal) to the VIDEO 1 IN REF connector.
V IC OUT (4 - pin):
Loop-through output of the Y IC IN connector.
COMP OUT (BNC type) :
Loop-
through output of the COMP IN connector.
[ID VIDEO 2 IN connector section
A set of composite video or RGB I component (Y I S-Y IR - Y)
signal inputs and loop - through outp uts.
Composite video/RGBfcomponent input (O-sub 15-
pin, 3-
row) :
Co nn ect one of th e D-sub co nn ectors to th e co mpo site
video,
RGB or component (Y I B- Y J R- Y) outp uts of vi deo
equipment. The other D-sub connector is a. l oop - throug h
output.
Terminat i on switch:
When nothing is connected to the loop-through output
c onnector , set to 75ft When the loop-thr o ugh ou tput
connector is used, set to OPEN.
NORMAUCOMP (composi te) input selector:
Usually set to NORMAL when RGB or component signal is
input to the D-sub connector. Set to COMP when
composite vi deo si gna l is in put.
RGBlYBR '" (RGBlcomponent) input selector:
Set to RGB or YBR according to the format of the si gnal
inp ut to the D-sub connector.
32
!11 VIDEO 3 IN connector section
A set of RCB or com ponent (Y I B- Y IR - Y) s ign al inp uts an d
l
oop-thro ugh outputs.
RGB/component input (D-sub 15-pin, 3-row):
Connect o ne of th e D-sub co nnect ors to th e R GB or th e
component (Y IB-Y IR- Y) outputs of video eq ui pment.
o th er D-sub COlU\ector is a loop-thro ugh o utpu t.
Termi nation switch:
When no thin g is cO JU1 ecte<Ho the l oop -thro ug h ou tput
colU\ect or , set to 75ft When the l oop-thro u gh ou tpu t
connector is used , set to OPEN.
RGBIYBR '" selector:
Set to RGB or YBR accord in g to th e for~ t of th e Si gn al
in put to the D-sub co nn ector.
SYNC selecto r:
Norma lly set to AUTO. Set to ON G to use th e sync si gnal
on green channel when both external sync signal and sync
on
green si gnal are in put.
'" YBR is an a bb reviation of Y IB- Y IR- Y comp onen t si gn al .
