Sony DSC-R1 User Manual

15
Enjoying the camera

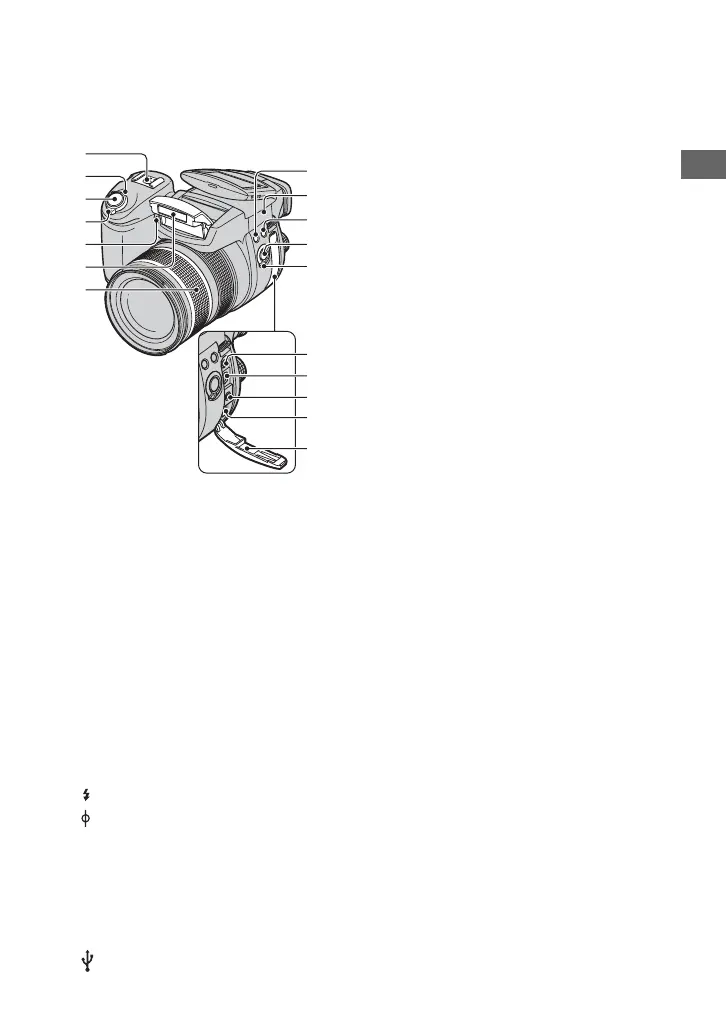

Identifying parts
See the pages in parentheses for details of
operation.
A Advanced accessory shoe (52)
B POWER lamp (
t step 2 in “Read This
First”)
C Shutter button (
t step 5 in “Read This
First”)
D POWER switch (
t step 2 in “Read This
First”)
E Self-timer lamp (
t step 5 in “Read This
First”)/AF illuminator (73)
F Flash (
t step 5 in “Read This First”)
G Zoom ring (71,
t step 5 in “Read This
First”)
24 28 35 50 70 100 120 Equiv.135
• Converted to a 35 mm still camera.
H (Flash) button (50)
I Base point of distance mark (
t step
5 in “Read This First”)
J WB (White balance) button (55)
K PUSH AUTO button (48)
L FOCUS switch (48)
M ACC (Accessory) jack (52)
N (USB) jack (87)
O VIDEO OUT jack (105)
P DC IN jack
Q Jack cover
1
2
3
7
4
5
6
8
q;
9
qa
qs
qd
qf
qg
qh
qj

Sony DSC-R1 Specifications

General

Sensor Type	CMOS
Sensor Size	21.5 x 14.4 mm
Effective Pixels	10.3 Megapixels
Lens	Carl Zeiss Vario-Sonnar T*
Focal Length	24-120 mm (35mm equivalent)
ISO Sensitivity	160-3200
Shutter Speed	30 - 1/2000 sec
Image Formats	JPEG, RAW
Battery	NP-FM50 InfoLithium rechargeable battery
Weight	995 g (including battery)
Aperture Range	f/2.8-4.8
LCD Screen	2.0-inch, 134, 000 pixels
Viewfinder	Electronic (EVF), 235, 000 pixels
Storage Media	CompactFlash, Memory Stick
Dimensions	139 x 97 x 156 mm
Camera Type	Digital SLR-like camera
