Chapter 3 Installation and Connection

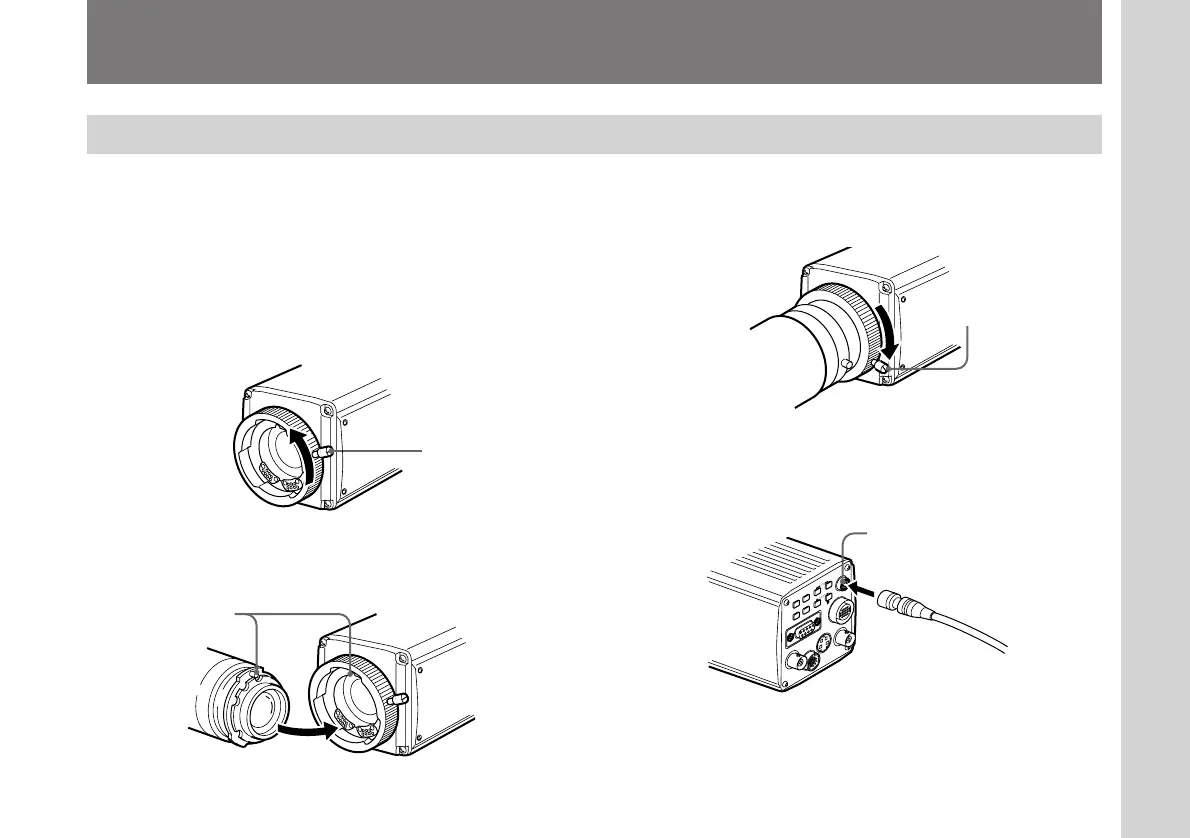

Mount lever
Align the pin
with the hole.
3 Turn the mount lever clockwise as far as it goes to lock
the lens in the lens mount.
4 If the lens is a 2/3-inch type, connect the lens cable to
the camera’s LENS connector.
(This step is not necessary for 1/2-inch lenses.)
Mounting the Lens
Only 1/2-inch bayonet-mount lenses can be attached to the
camera.
For 2/3-inch lenses, an LO-32BMT lens mount adaptor (not
supplied) is required.
1 Turn the mount lever counterclockwise as far as it goes.
(If the lens mount cap is in place, remove it.)
2 Align the positioning pin on the lens with the matching
hole in the lens amount and attach the lens.
Mount lever
to LENS connector
of the camera
Lens cable
