1
XBR-49/55/65/75X900E
DISASSEMBLY

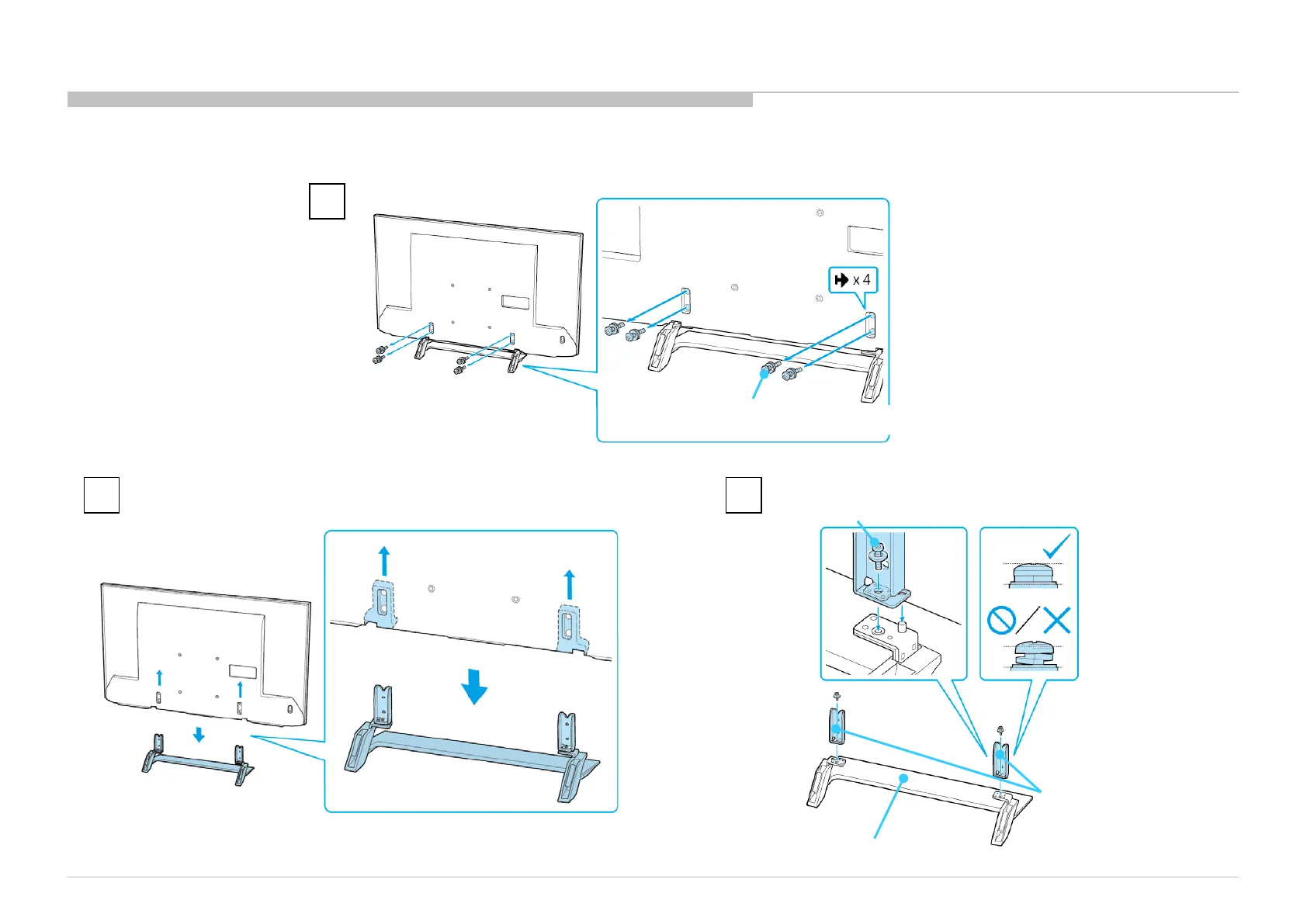

5-1. STAND NECK (ML SBT) A AND STAND BASE (ML SBT) A
5. XBR-49X900E
182
2
4 screws (SCREW, +PSW M5X12) P/N: 2-580-607-01
Screw (SCREW, +PSW M5X12) P/N: 2-580-607-01
3
STAND BASE (ML SBT) A
STAND NECK (ML SBT) A
