XBR-49/55/65/75X900E
DISASSEMBLY

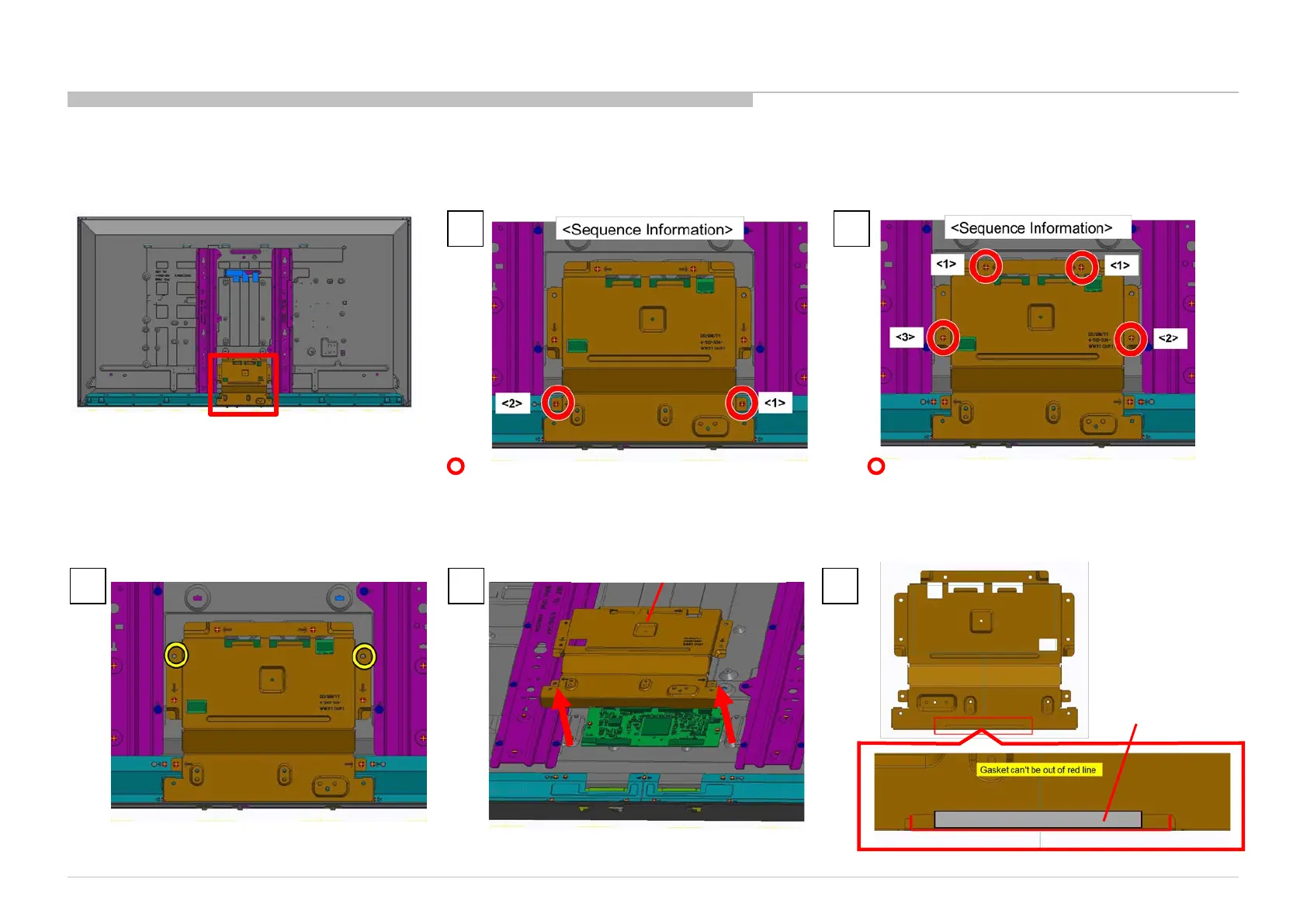

1-34. SHIELD, T-CON (SBT) AND GASKET(SP GNT)
1. XBR-55X900E
97
2 screws (SCREW, +PSW M3X6) P/N: 4-472-518-11 4 screws (SCREW M3X2.7 (SBT)) P/N: 4-690-476-01
SHIELD, T-CON (SBT)
GASKET(SP GNT)
1 2
3 4 5
