REF. No. PART No. DESCRIPTION MARK
701 4-689-385-01 LABEL, SIDE TERMINAL (SBT)
702 4-684-660-01 HOLDER SIDE SW(SBT M)
703 1-474-647-12 SWITCH UNIT (3M-P)
704 1-859-200-11 SP-BOX ASSY, FY17 W25SMALL-EL
705 4-684-165-11 REAR COVER (M SBT) A
706 4-684-169-01 COVER, CARD (M SBT)
707 4-689-432-01 LABEL, REAR TERMINAL (SBT)
708 4-688-748-01 BRACKET, TS (PUC)
710 1-458-966-11 WLAN/BT MODULE(11AC)
711 1-859-200-21 SP-BOX ASSY, FY17 W25SMALL-ER
712 1-754-975-11 BT ANTENNA
XBR-49/55/65/75X900E

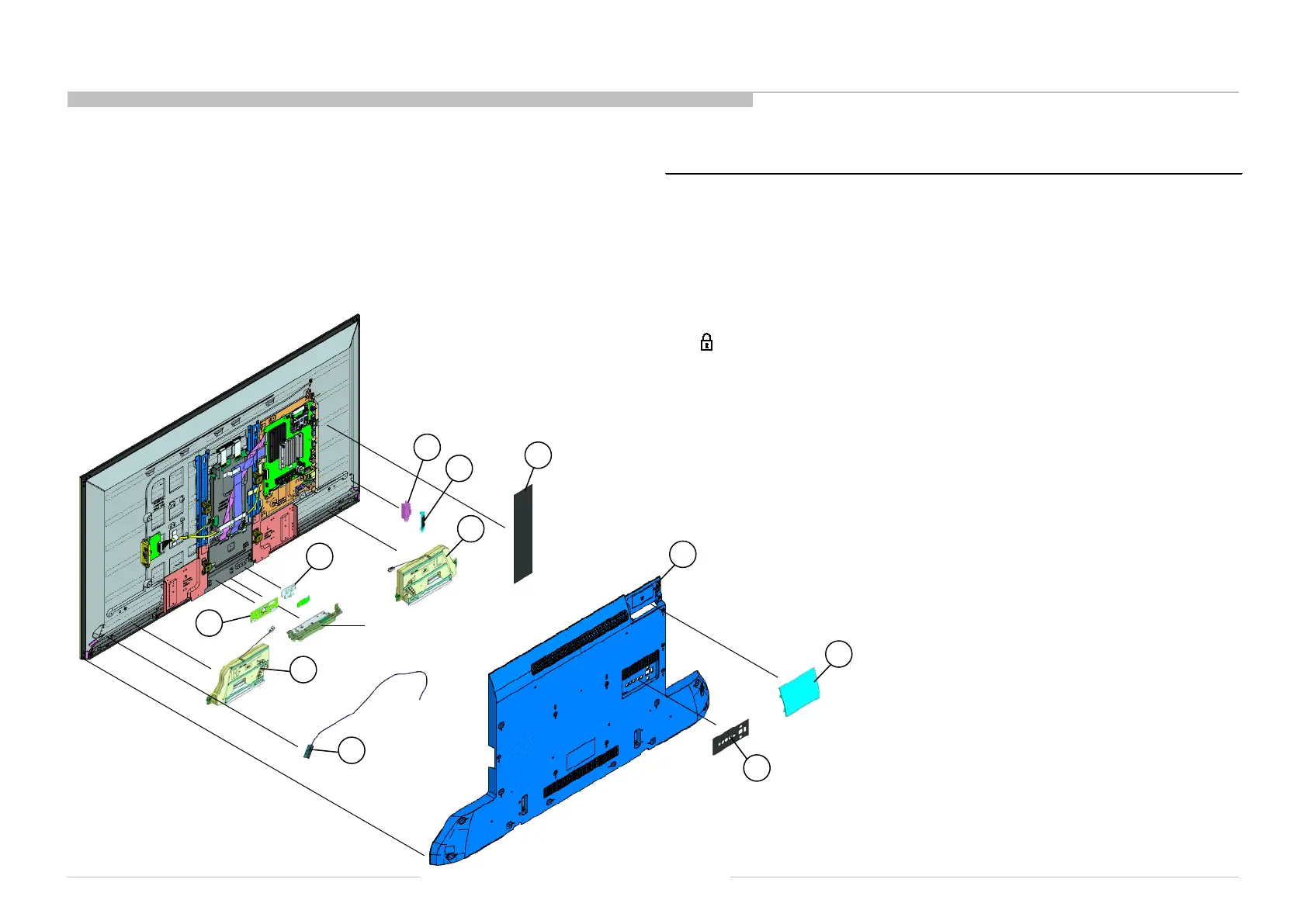

EXPLODED VIEWS
REAR COVER
5. XBR-49X900E
235
701
SMART CORE (S)
702
703
704
705
706
707
708
710
711
712
