Sony GN3TR - Exploded Views and Parts Identification; XBR-55 X900 E Rear Cover and LCD Panel Parts

XBR-49/55/65/75X900E

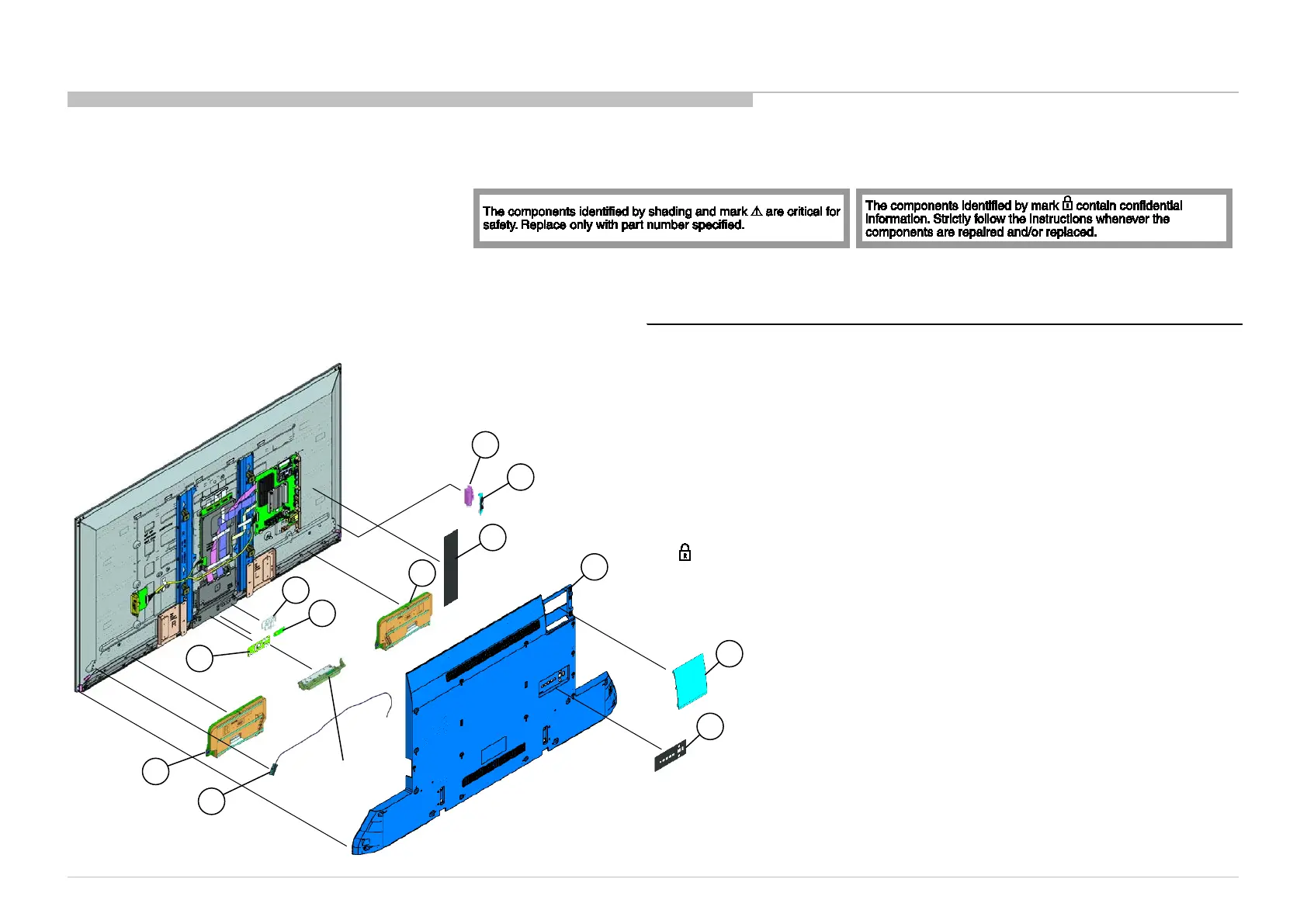

EXPLODED VIEWS
1. XBR-55X900E
REAR COVER
REF. No. PART No. DESCRIPTION MARK
1 4-684-660-01 HOLDER SIDE SW(SBT M)
2 1-474-647-12 SWITCH UNIT (3M-P)
3 4-689-385-01 LABEL, SIDE TERMINAL (SBT) FOR UC2
3 4-689-385-11 LABEL, SIDE TERMINAL (SBT) FOR LA1
4 4-690-473-11 REAR COVER (L SBT) A
5 4-684-170-01 COVER, CARD (L SBT)
6 4-689-432-01 LABEL, REAR TERMINAL (SBT) FOR UC2
6 4-689-433-01 LABEL, REAR TERMINAL (SBT) FOR LA1
7 1-859-201-11 SP-BOX ASSY, FY17 W25LARGE-EL
8 A-2167-846-A TSA2_KS MOUNT
9 4-688-748-01 BRACKET, TS (PUC)
10 1-458-966-11 WLAN/BT MODULE(11AC)
11 1-859-201-21 SP-BOX ASSY, FY17 W25LARGE-ER
12 1-754-950-11 BT ANTENNA
• Items with no part number and no description are not stocked because they are seldom required for routine service.
• The construction parts of an assembled part are indicated with a collation number in the remark column.
• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
219
1
2
3
4
5
6
7
8
9
10
11
12
SMART CORE (S)
