REF. No. PART No. DESCRIPTION MARK
201 4-579-994-01 HOLDER SIDE SW (PDT)
202 1-474-647-12 SWITCH UNIT (3M-P)
203 4-690-471-11 REAR COVER (2L SBT) A
204 4-684-171-01 COVER, CARD (2L SBT)
205 4-689-432-01 LABEL, REAR TERMINAL (SBT) FOR UC2
205 4-689-433-01 LABEL, REAR TERMINAL (SBT) FOR LA1
206 4-689-385-01 LABEL, SIDE TERMINAL (SBT) FOR UC2
206 4-689-385-11 LABEL, SIDE TERMINAL (SBT) FOR LA1
207 1-859-201-11 SP-BOX ASSY, FY17 W25LARGE-EL
208 4-688-748-01 BRACKET, TS (PUC)
209 A-2167-846-A TSA2_KS MOUNT
210 1-458-966-11 WLAN/BT MODULE(11AC)
211 1-859-201-21 SP-BOX ASSY, FY17 W25LARGE-ER
212 1-754-956-11 BT ANTENNA
XBR-49/55/65/75X900E

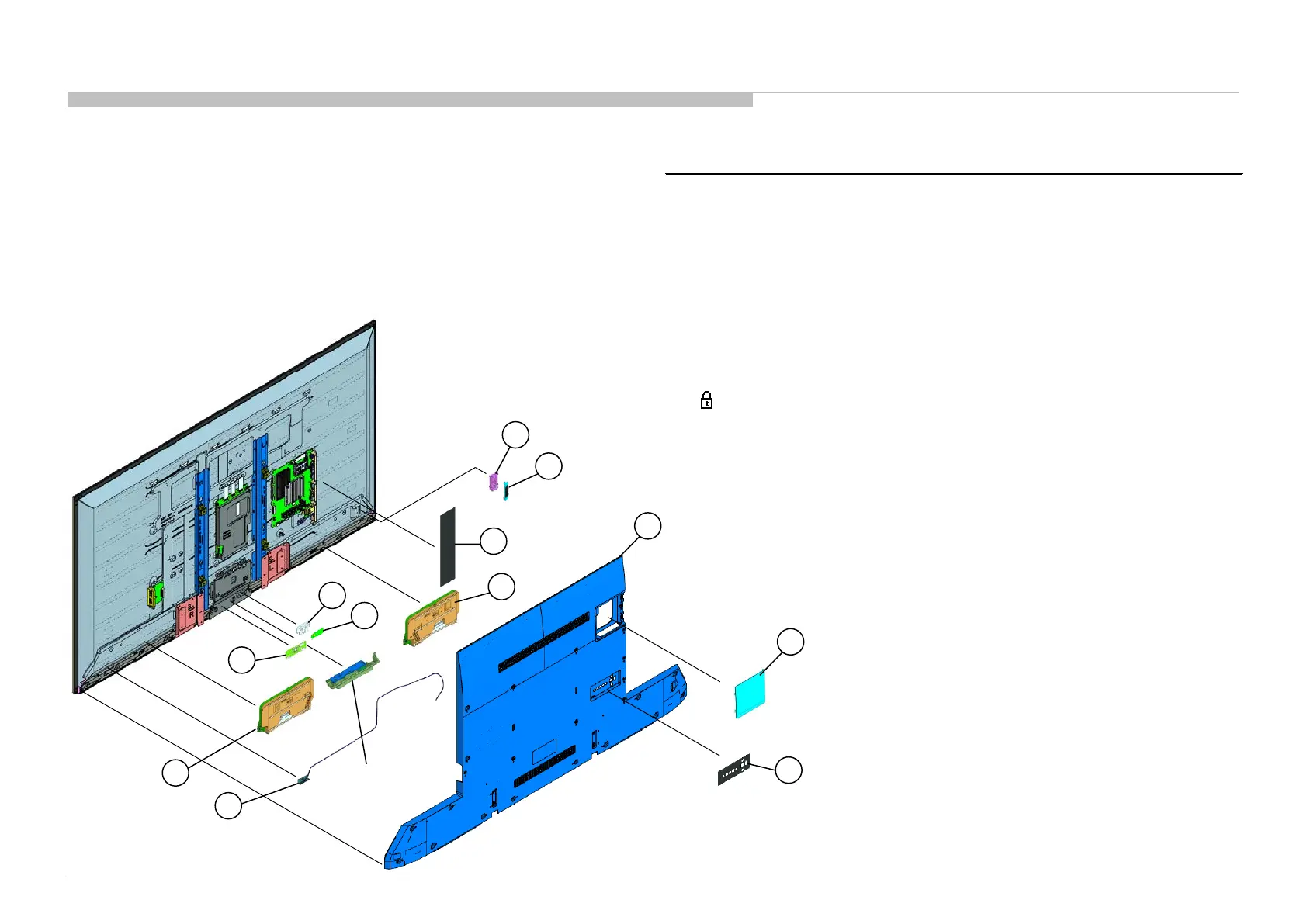

EXPLODED VIEWS
REAR COVER
2. XBR-65X900E
224
201
202
203
204
205
206
207
208
209
210
211
212
SMART CORE (S)
