Sony GN3TR - Page 220

REF. No. PART No. DESCRIPTION MARK
51 A-2170-004-A P-MOD (YD7S550DND01B)
52 4-588-223-01 SHEET, THERMAL (TPZ BBE)
53 4-549-186-01 SHEET, THERMAL(BM)
54 4-690-221-01 CUSHION, CORNER(SBT)
55 4-598-764-61 BRACKET, SIDE (SBT) FOR UC2
55 4-598-764-11 BRACKET, SIDE (SBT) FOR LA1
56 A-2170-502-A COMPL SVC BMKS_UC_KS FOR UC2
56 A-2170-504-A COMPL SVC BMKS_MX_KS FOR LA1
57 8-594-302-80 UNIVERSAL SIL-TU SUT-RA243ZP
58 A-2167-845-A IR MOUNT FOR UC2
59 2-650-770-21 SLIDE, CLAMP
60 A-2170-959-A JK3_OT_R_L_C MOUNT
61 4-599-202-01 BRACKET, DC JACK (SBT)
XBR-49/55/65/75X900E

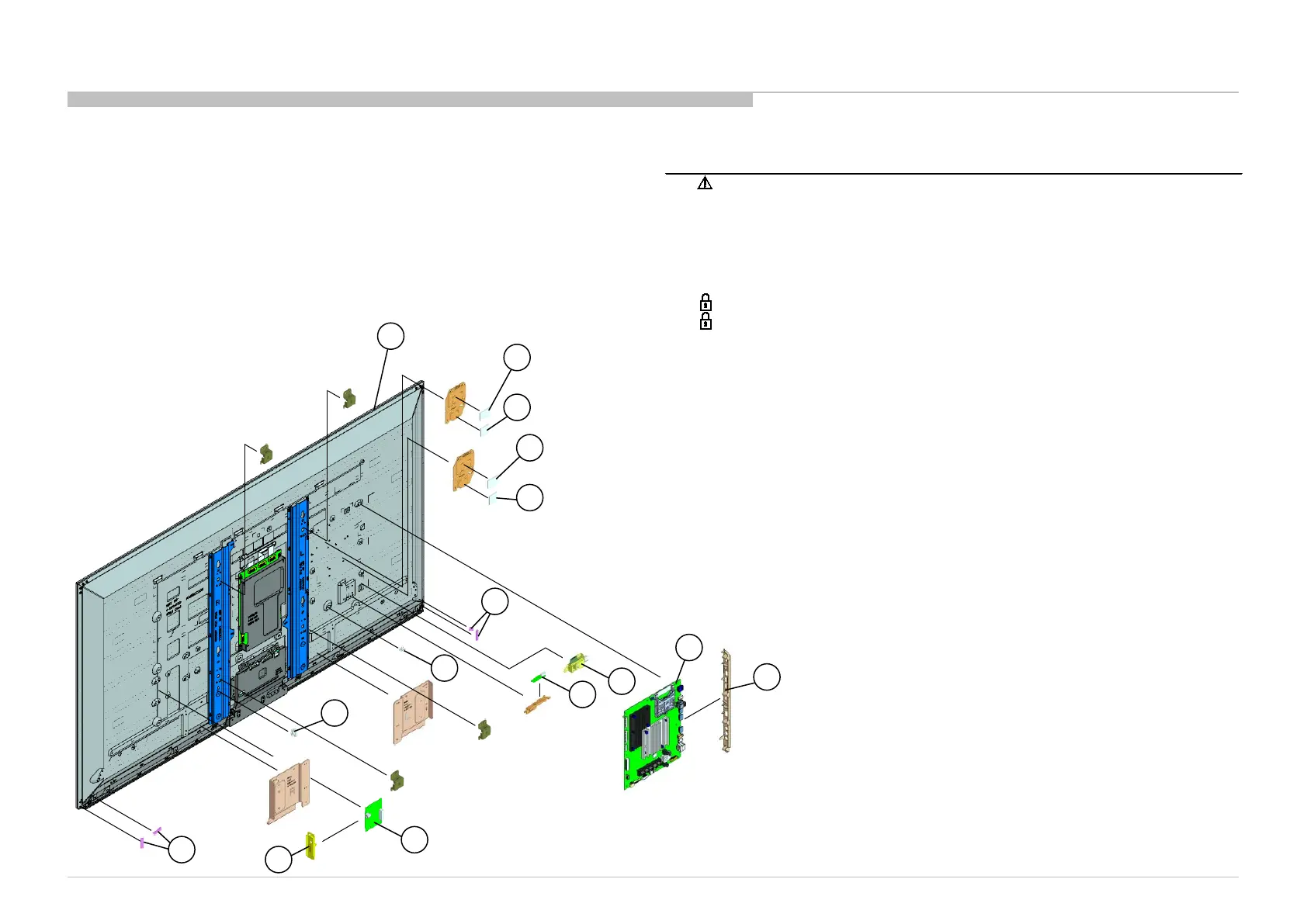

EXPLODED VIEWS
LCD PANEL
1. XBR-55X900E
220
51
52
53
52
53
54
54
55
56
57
58
59
59
60
61
