Sony GN3TR - XBR-55 X900 E Connector and Screw Details

XBR-49/55/65/75X900E

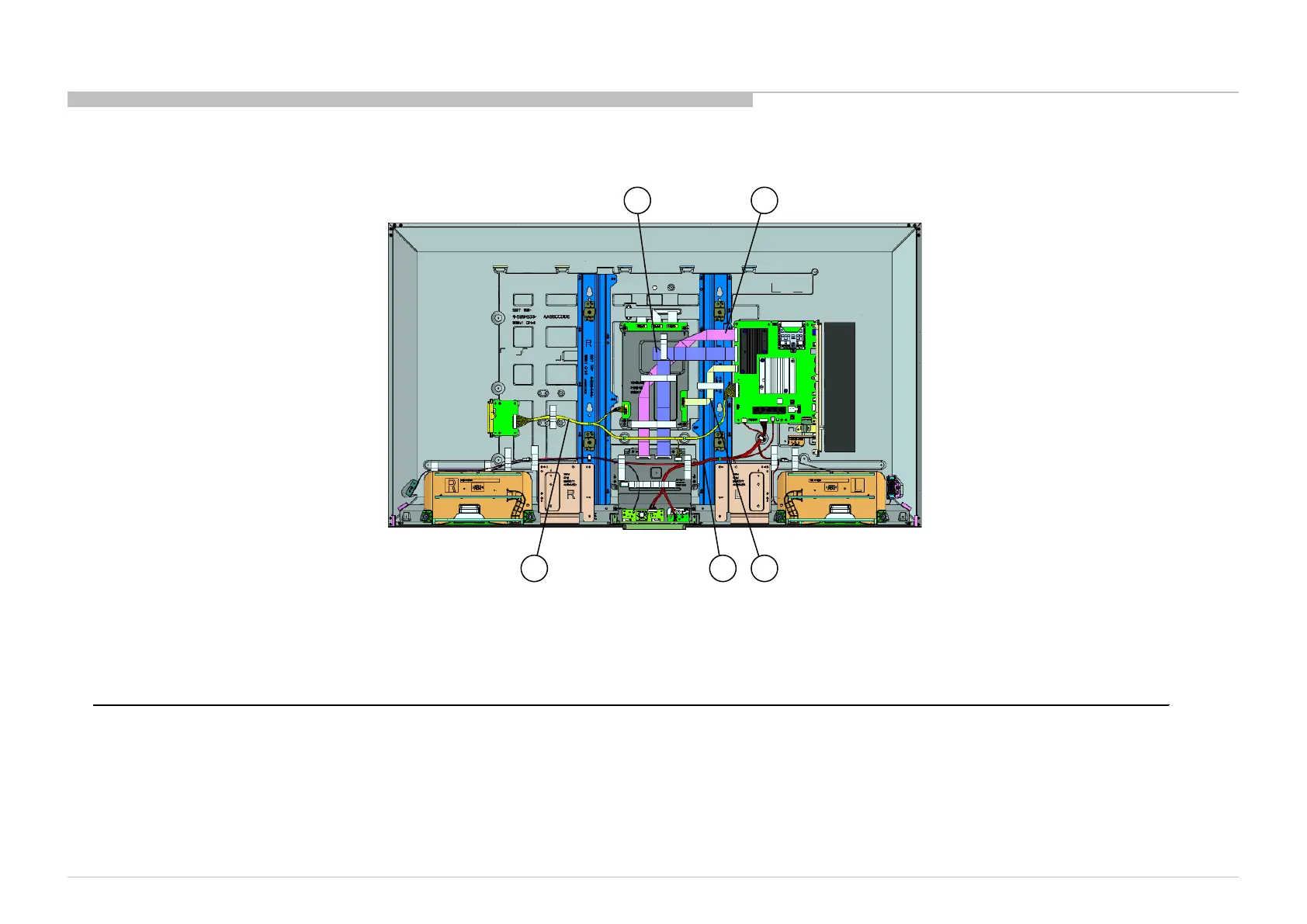

EXPLODED VIEWS
CONNECTORS
1. XBR-55X900E
221
REF.NO. PART No. DESCRIPTION MARK
101 1-849-886-11 FLEXIBLE FLAT CABLE 41P CN4400(BMKS)-U2(TCON)(1)
102 1-849-891-11 FLEXIBLE FLAT CABLE 51P CN4401(BMKS)-U1(TCON)(1)
103 1-910-112-04 FLEXIBLE FLAT CABLE 30P CN4000(BMKS)-CN4000(LD)(1)
104 1-910-112-05 HARNESS ASSY (MAIN) CN1000(BMKS)-KEY-WIFI-HSC3L-TSA-CN1002(BMKS)-CN3201(BMKS)-SP(1)
105 1-910-112-06 CONNECTOR ASSY 30P CN400(BMKS)-CON3(TCON)-CN1000(LD)-JK(1)
101 102
103 104 105
