Sony GN3TR - Page 237

XBR-49/55/65/75X900E

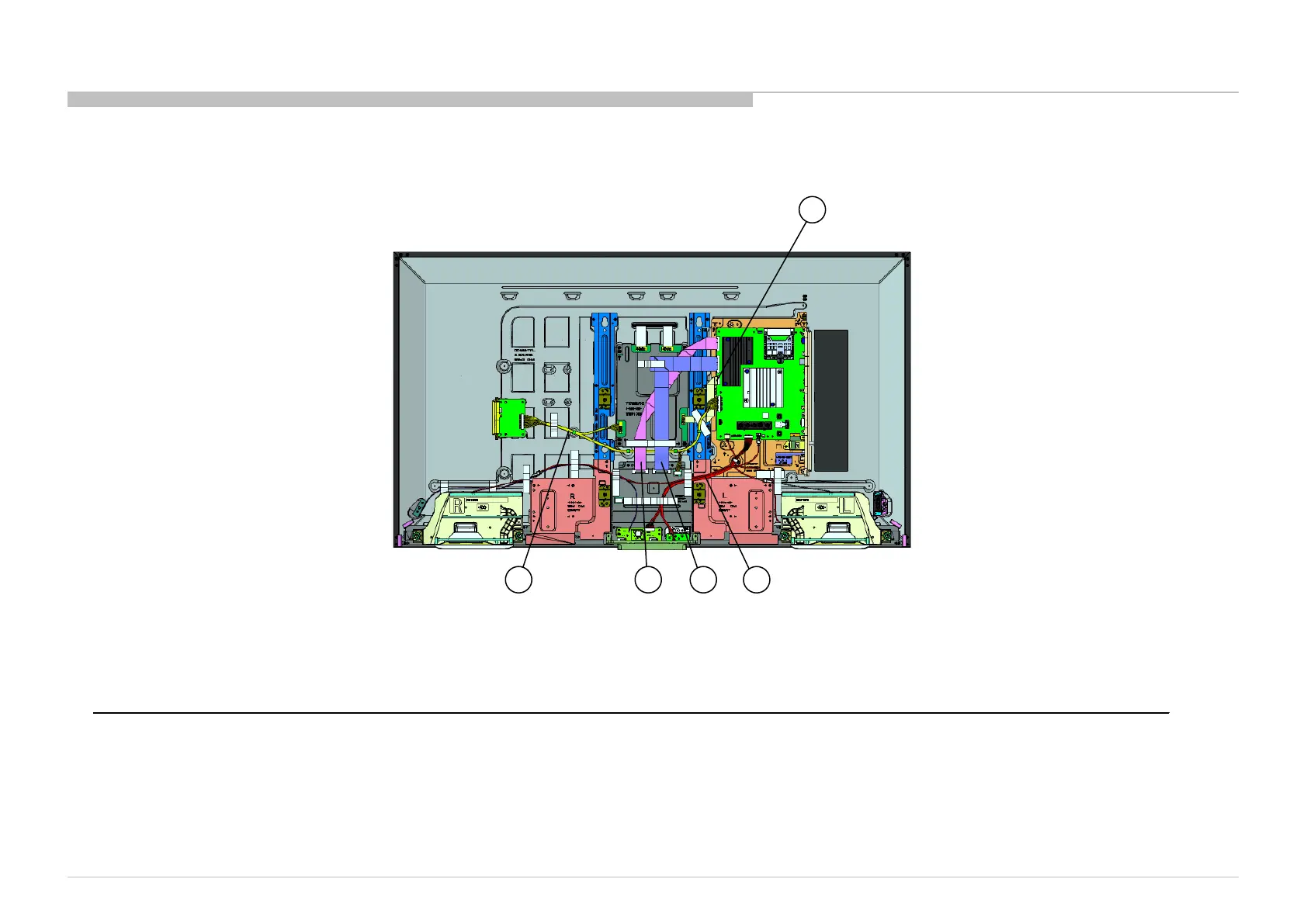

EXPLODED VIEWS
CONNECTORS
5. XBR-49X900E
237
REF.NO. PART No. DESCRIPTION MARK
801 1-849-885-11 FLEXIBLE FLAT CABLE 41P CN4400(BMKS)-U2(TCON)(1)
802 1-849-890-11 FLEXIBLE FLAT CABLE 51P CN4401(BMKS)-U1(TCON)(1)
803 1-910-112-01 FLEXIBLE FLAT CABLE 30P CN4000(BMKS)-CN4000(LD)(1)
804 1-910-112-02 HARNESS ASSY (MAIN) CN1000(BMKS)-KEY-WIFI-HSC3L-TSA-CN1002(BMKS)-CN3201(BMKS)-SP(1)
805 1-910-112-03 CONNECTOR ASSY 14P CN400(BMKS)-CON3(TCON)-CN1000(LD)-JK(1)
804 802 801 805
803
