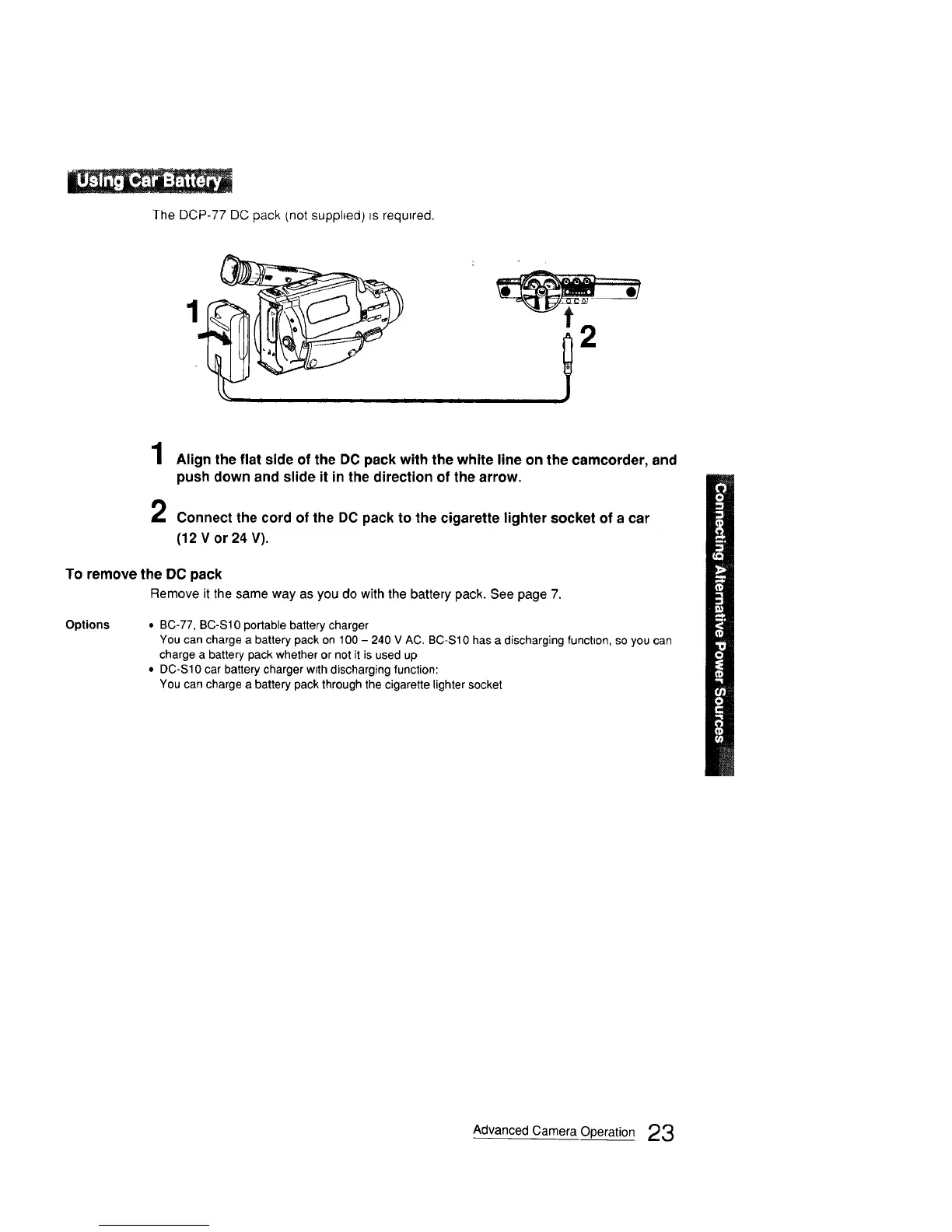

_he DCP-77 DC pack (not supphed) is required.
1
1
2
Align the flat side of the DC pack with the white line on the camcorder, and
push down and slide it in the direction of the arrow,
Connect the cord of the DC pack to the cigarette lighter socket of a car
(12 V or 24 V),
To remove the DO pack
Removeit thesamewayas youdo withthe batterypack. Seepage7.
Options
• BC-77, BC-S10 portable battery charger
You can charge a battery pack on 100 - 240 V AC. BC-S10 has a discharging function, so you can
charge a battery pack whether or not it is used up
• DC-S10 car battery charger with discharging function:
You can charge a battery pack through the cigarette lighter socket
Advanced Camera Operation 23
