Sony HAP-S1 User Manual

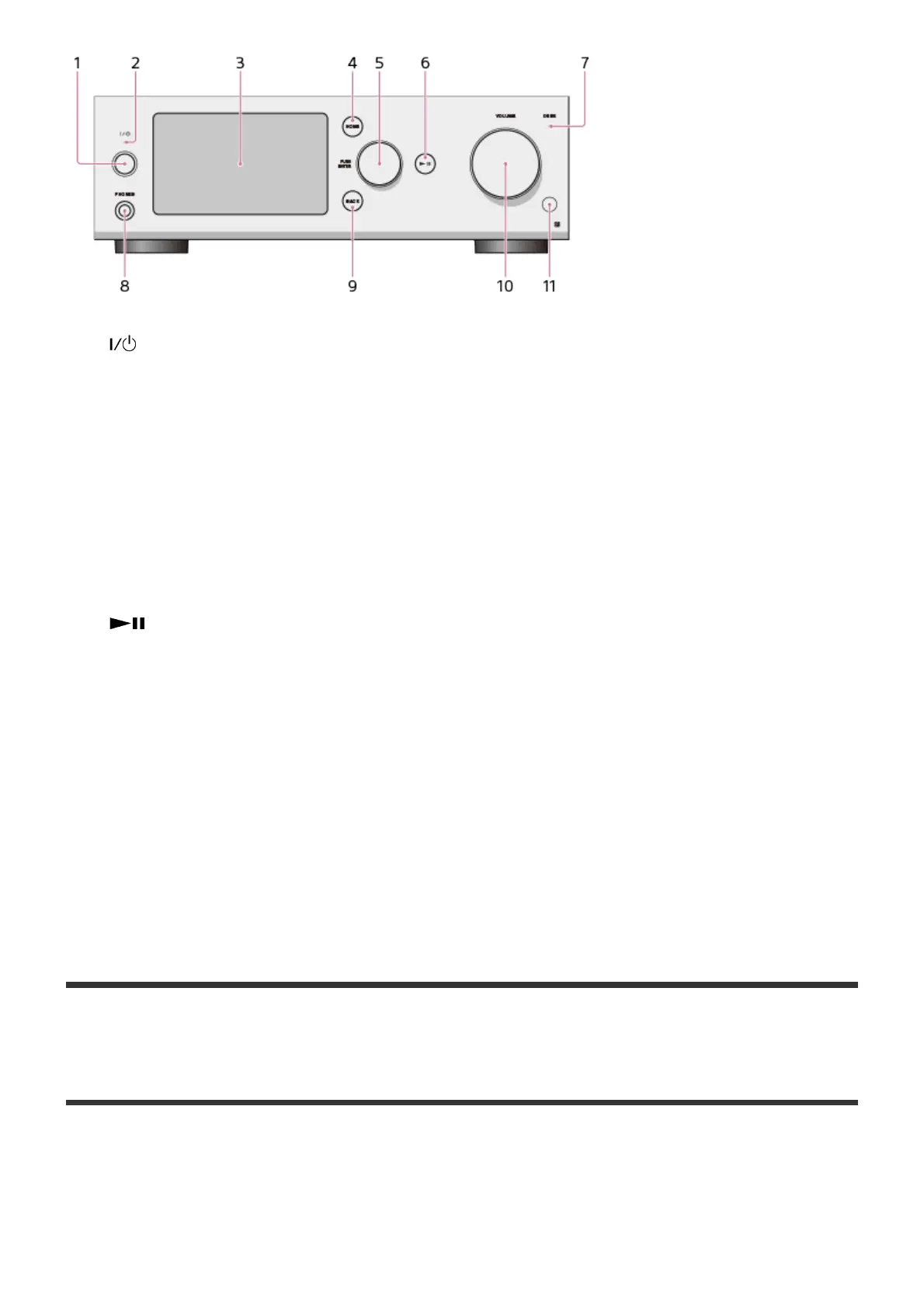

1. (Power) button
Turns the HDD AUDIO PLAYER on and off.
2. Power lamp
When the HDD AUDIO PLAYER is turned on, this lamp lights up in green.
3. LCD display
4. HOME button
Displays the Home screen.
5. Jog dial (PUSH ENTER)
Turn this dial to select items displayed on the screen.
Push the jog dial in to commit a selected item.
6. (Play/Pause) button
Starts and pauses playback.
7. DSEE lamp
Lights up when the DSEE HX function or the DSEE function is active.
8. PHONES jack
Connect headphones here.
9. BACK button
Returns to the previous screen.
10. VOLUME control
Adjusts the volume.
11. Remote sensor
[59] Parts and controls
Rear panel

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
